Attaching the Rear Brackets to the Device

Complete the following steps to attach the rear brackets to the device.
1. Align the right rear bracket to the right rear of the device, and use four 8-32 x 5/16-in. panhead screws to attach the
bracket to the device, as shown in the figure. Be sure to insert the screws through the upper and lower slots in the
bracket.
2. Align the left rear bracket to the left rear of the device, and use four 8-32 x 5/16-in. panhead screws to attach the
bracket to the device. Again, use the upper and lower slots in the bracket.
3. Tighten all 8-32 x 5/16-in. screws to a torque of 17 cm-kg (15 in.-lb).

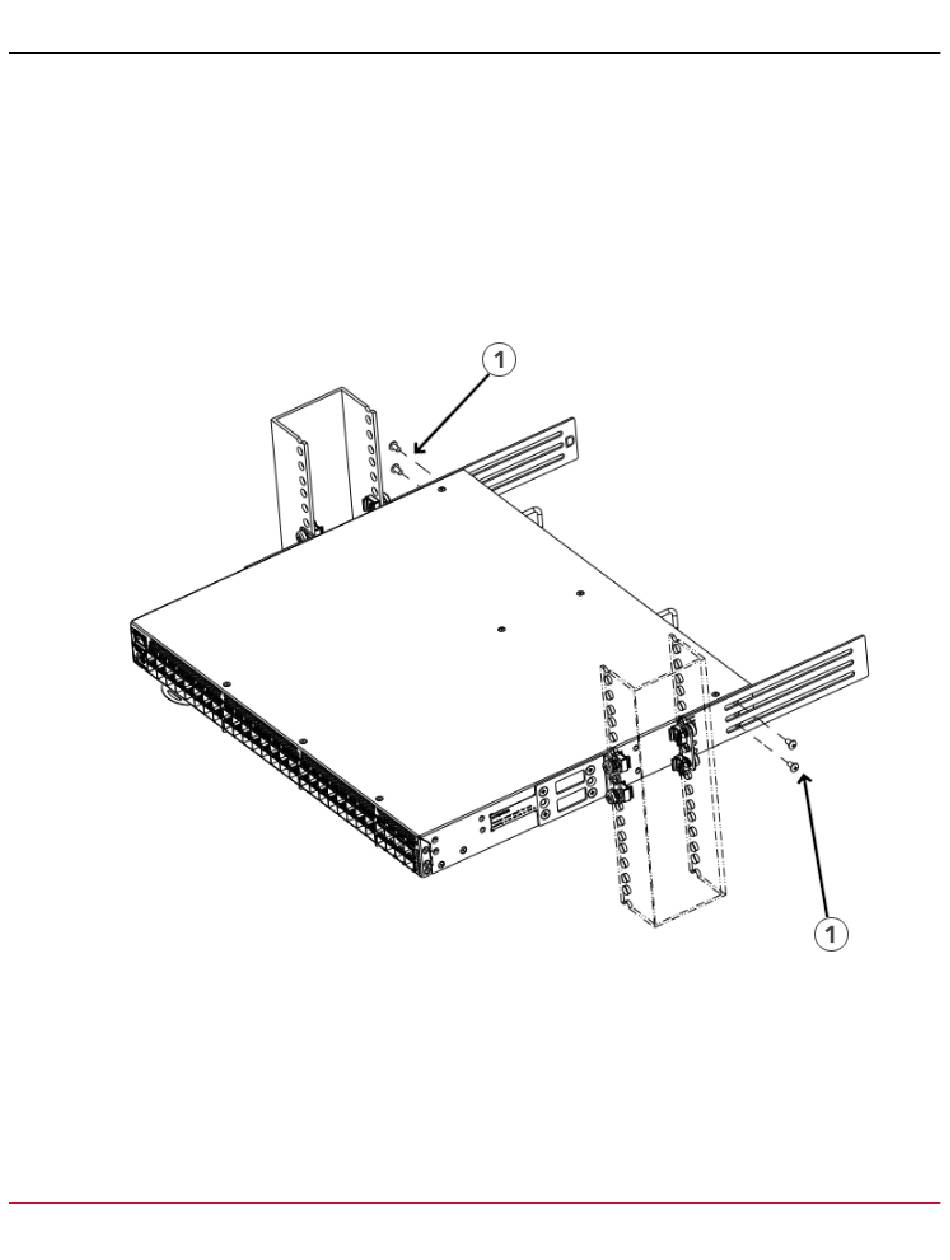

Figure 23: Attaching the Rear Brackets to the Device
1. Screws, 8-32 x 5/16-in. Panhead Phillips
