Attaching the Extensions to the Front of the Device

Complete the following steps to attach the extension brackets to the front of the device. You can use medium or long
extension brackets for this task, depending on your rack depth.
1. Select the proper length extension bracket for your rack depth.
2. Position the right extension bracket along the side of the device as shown the figure.
3. Insert four 8-32 x 5/16-in. flathead screws through the vertically aligned holes in the extension brackets and then into
the holes on the side of the device. Use the upper and lower screw holes, leaving the center holes empty.
4. Repeat Steps 2 and 3 to attach the left front extension bracket to the left side of the device.
5. Tighten all the 8-32 x 5/16-in. screws to a torque of 17 cm-kg (15 in.-lb).

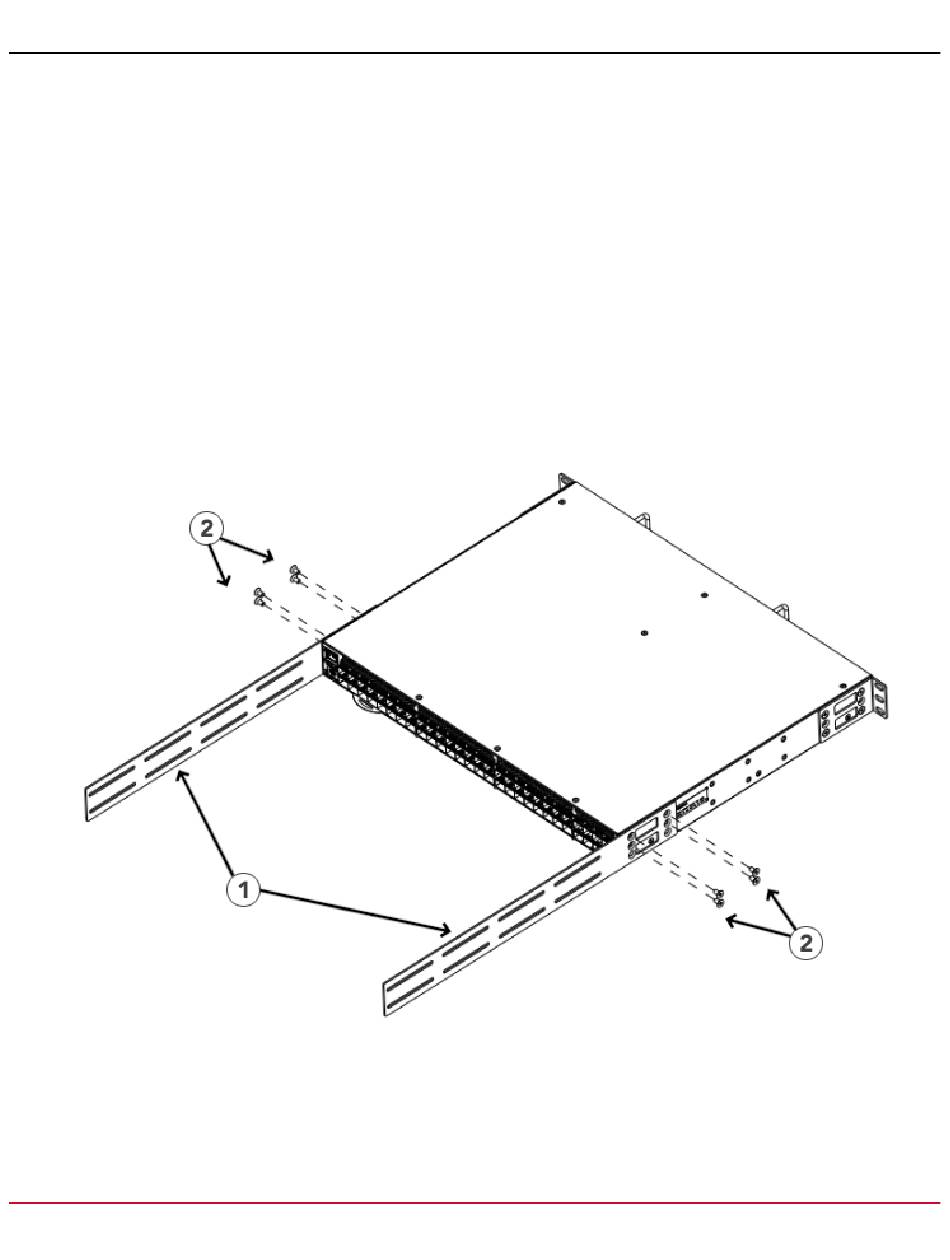

Figure 10: Attaching the Extensions to the Device
1. Extensions
2. Screws, 8-32 x 5/16-in. Flathead Phillips
