Attaching the Rear Brackets to the Rack Posts

Complete the following steps to attach the rear brackets to the rack posts.
1. Attach the right rear bracket to the right rear rack post using two 10-32 x 5/8-in. screws and two retainer nuts, as
shown in the following figure.
2. Attach the left rear bracket to the left rear rack post using two 10-32 x 5/8-in. screws and two retainer nuts.
3. Tighten all the 10-32 x 5/8-in. screws to a torque of 25 in.-lbs (29 cm-kgs).

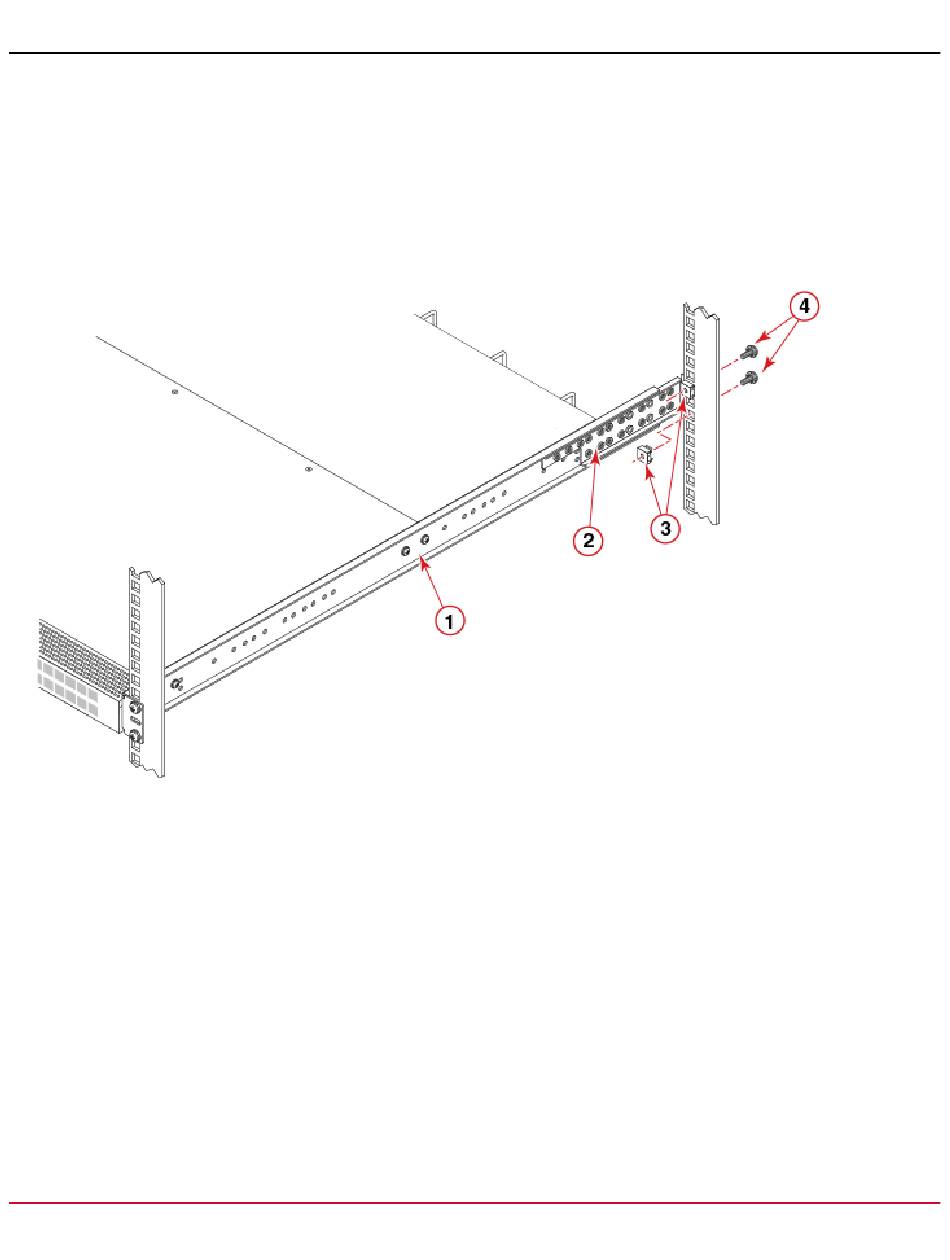

Figure 12: Attaching the Rear Bracket to the Rack Post
1. Bracket, Front Right
2. Bracket, Rear Right
3. Retainer Nut, 10-32
4. Screw, 10-32 x 5/8-in. Panhead Phillips
Installing the 1U and 2U Nonport-Side Fixed-Mount Rack Kit (15 in.–20
in.) for Four-Post Racks (XNA-000072 and XNA-100072)
Use the following instructions to install a fixed-port device in a 19-inch (48.3 cm) EIA rack using the 1U and 2U Nonport
Side Fixed Rack Mount Kit (15"-20") for Four-Post Racks. Observe the following when mounting this device:
