Nonport-Side View of the Device
The following illustration shows the nonport-side view of the Brocade G720 FC switch.

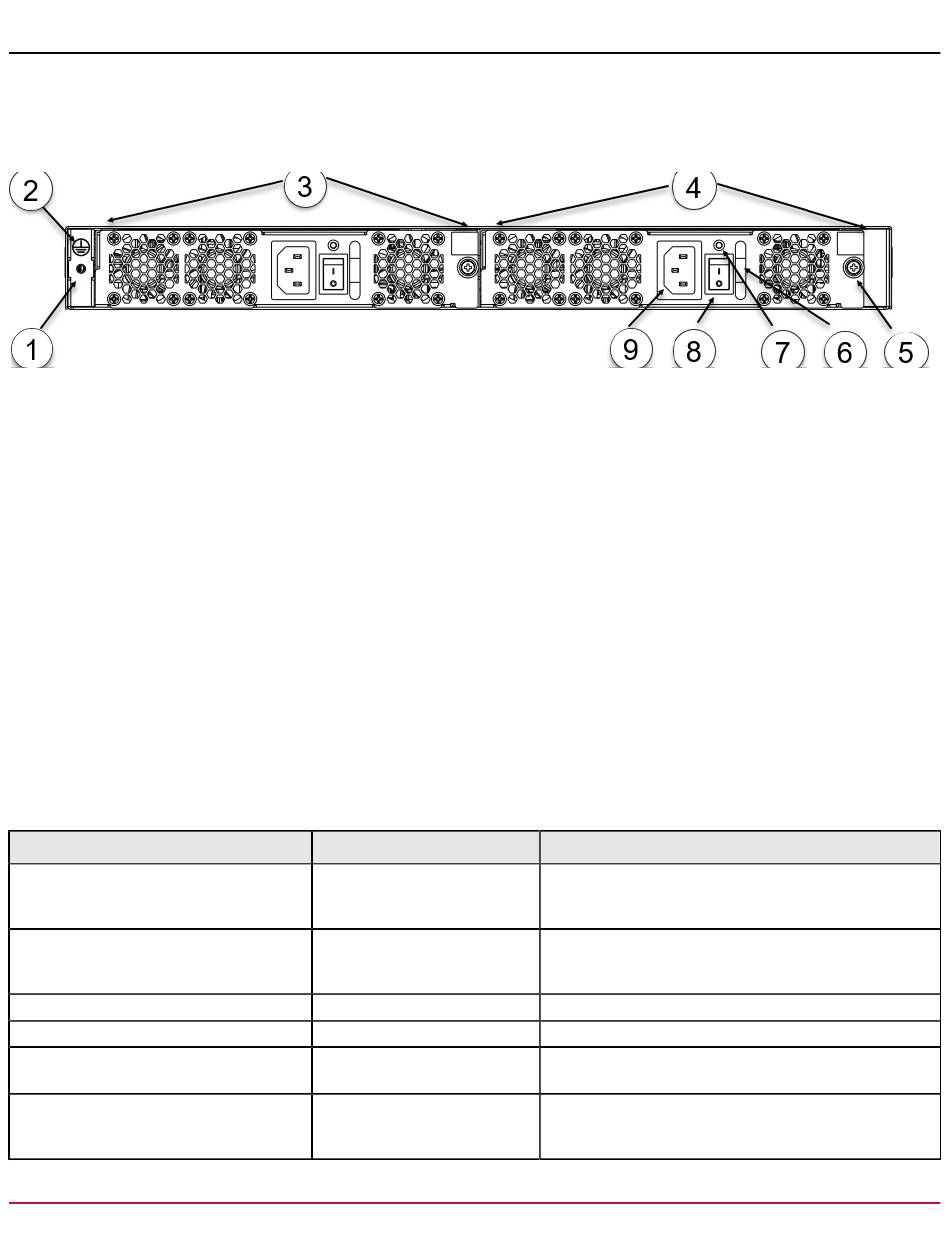

Figure 2: Nonport-Side View with AC Power Supply and Fan Assembly Units
1. #6-32 for Screw Mounting of the Ground Cable
2. Ground Marking
3. Power Supply and Fan Assembly 2
4. Power Supply and Fan Assembly 1
5. Captive Screw
6. Handle
7. Power Supply and Fan Assembly Status LED
8. Power-On Switch
9. Power Supply Receptacle
Device Management Options
You can use the management functions built into the device to monitor the fabric topology, port status, physical status, and
other information to help you analyze switch performance and to accelerate system debugging. The device automatically
performs a power-on self-test (POST) each time it is turned on. A RASlog message is generated for any detected startup
errors.
You can manage the device using any of the management options that are listed in the following table.
Table 3: Management Options for the Device
Management Tool
Command line interface (CLI)
Up to two admin sessions and four user
sessions simultaneously.
Brocade EZSwitchSetup
EZSwitchSetup helps to complete the
basic configuration for single-switch setup.
Brocade Web Tools
Standard SNMP applications
Management Server
Brocade SANnav Management Portal
Brocade SANnav Management Portal
must be purchased separately.
Broadcom
Out-of-Band Support
Ethernet or serial connection
Ethernet or serial connection
Ethernet or serial connection
Ethernet or serial connection
Ethernet or serial connection
Ethernet or serial connection
®
Brocade
G720 Switch Hardware Installation Guide
Reference Documents
Brocade Fabric OS Administration Guide
Brocade Fabric OS Command Reference Manual
EZSwitchSetup Software Installation Guide
EZSwitchSetup Administrator's Guide
Brocade Fabric OS Web Tools Administration Guide
Brocade Fabric OS MIB Reference Manual
Brocade Fabric OS Administration Guide
Brocade Fabric OS Command Reference Manual
Brocade SANnav documentation set
