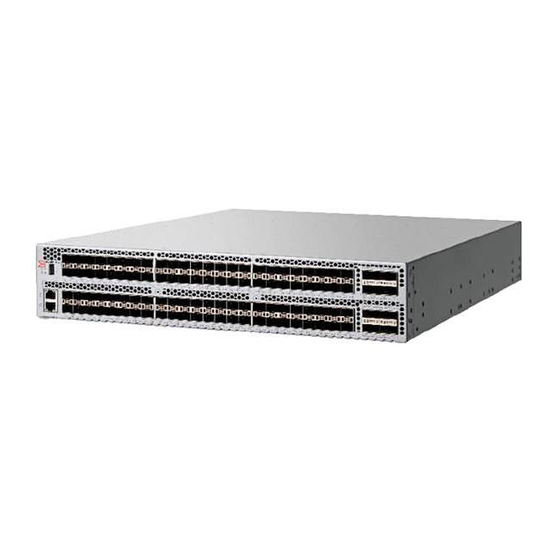

- Page 1 ® Brocade G630 Switch Hardware Installation Guide Installation Guide 9 April 2021 53-1005235-09 9 April 2021...
-
Page 2: Table Of Contents
® 53-1005235-09 Installation Guide Brocade G630 Switch Hardware Installation Guide Table of Contents Copyright Statement..........................6 Introduction............................7 About This Document..............................7 Supported Hardware and Software..........................7 Notes, Cautions, and Danger Notices........................... 8 ® Contacting Technical Support for Your Brocade Product..................8 Document Feedback................................ - Page 3 ® 53-1005235-09 Installation Guide Brocade G630 Switch Hardware Installation Guide Flush-Rear (Recessed) Mounting..........................30 Attaching the Front Brackets to the Rear of the Device................... 31 Attaching the Extensions to the Front of the Device..................33 Installing the Device in the Rack........................34 Attaching the Rear Brackets to the Extensions at the Front of the Device............34 Attaching the Rear Brackets to the Front Rack Posts..................
- Page 4 ® 53-1005235-09 Installation Guide Brocade G630 Switch Hardware Installation Guide Installing an SFP+ Transceiver.............................58 Replacing an SFP+ Transceiver........................... 58 Installing a QSFP Transceiver............................60 Replacing a QSFP Transceiver............................. 61 Verifying the Operation of New Transceivers......................62 Monitoring the Device........................63 Interpreting Port-Side LEDs............................
- Page 5 ® 53-1005235-09 Installation Guide Brocade G630 Switch Hardware Installation Guide Inserting a New Fan Assembly.............................80 Verifying the Operation of the Power Supply and Fan Assemblies................. 81 Technical Specifications........................82 Regulatory Statements........................87 BSMI Statement (Taiwan)...............................87 Canadian Requirements..............................87 CE Statement.................................. 87 China CCC Statement..............................
-
Page 6: Copyright Statement
2019–2021 Broadcom. All Rights Reserved. Broadcom, the pulse logo, Brocade, the stylized B logo, Fabric OS, and SANnav are among the trademarks of Broadcom in the United States, the EU, and/or other countries. The term “Broadcom” refers to Broadcom Inc. and/or its subsidiaries. -
Page 7: Introduction
(FOS) 8.2.0 software release. The following tables list the switch types, the power supplies, the fan assemblies, the FC quad small form-factor pluggable (QSFP) breakout transceivers, and the rack mount kits supported on this device. Table 1: Brocade G630-1 and G630-2 Switches Switch Type Description; Switch Type... -
Page 8: Notes, Cautions, And Danger Notices
• Other Resources: Licensing Portal (top), SAN Health (top and bottom), Communities (top), Education (top). If you purchased Brocade product support from a Broadcom OEM/solution provider, contact your OEM/solution provider for all your product support needs. • OEM/solution providers are trained and certified by Broadcom to support Brocade products. -
Page 9: Document Feedback
However, if you find an error or an omission or if you think that a topic needs further development, we want to hear from you. Send your feedback to documentation.pdl@broadcom.com. Provide the publication title, publication number, topic heading, page number, and as much detail as possible. -
Page 10: Device Overview
® 53-1005235-09 Installation Guide Brocade G630 Switch Hardware Installation Guide Device Overview Hardware Features The Brocade G630 Switch offers the following features and capabilities: • Up to 96 autosensing ports supporting high-performance 32G small form-factor pluggable plus (SFP+) transceiver port technology in a single domain with non-volatile memory express (NVMe) support from the host to the switch port on ingress and from the switch port to the target on egress. -
Page 11: License Options
® 53-1005235-09 Installation Guide Brocade G630 Switch Hardware Installation Guide – G630 (Switch Type 173) = 780 ns (including FEC) – G630 (Switch Type 184) = 560 ns (including FEC) • A high-performance T1042E processor with four cores operating at 1.5 GHz delivers high performance, scalability, and advanced Fabric Vision functionality. - Page 12 ® 53-1005235-09 Installation Guide Brocade G630 Switch Hardware Installation Guide Figure 1: Port-Side View 1. System Power LED 2. System Status LED 3. USB Port 4. 48 SFP+ 32G FC Ports 5. QSFP Port 1 (FC Ports 100–103) 6. QSFP Port 0 (FC Ports 96–99) 7.
-
Page 13: Nonport-Side View
® 53-1005235-09 Installation Guide Brocade G630 Switch Hardware Installation Guide QSFP port 6 (FC ports 120–123) QSFP port 4 (FC ports 112–115) QSFP port 5 (FC ports 116–119) QSFP port 7 (FC ports 124–127) Nonport-Side View The following figure shows the nonport-side view of the Brocade G630 FC Switch. Figure 2: Nonport-Side View with AC Power Supply and Fan Assembly Units 1. - Page 14 ® 53-1005235-09 Installation Guide Brocade G630 Switch Hardware Installation Guide Table 7: Management Options for the Device Management Tool Out-of-Band Support Reference Documents Command line interface (CLI) Ethernet or serial connection Brocade Fabric OS Administration Guide Up to two admin sessions and four user Brocade Fabric OS Command Reference Manual sessions simultaneously.
-
Page 15: Preparing For Installation
® 53-1005235-09 Installation Guide Brocade G630 Switch Hardware Installation Guide Preparing for Installation Safety Precautions When using this product, observe all danger, caution, and attention notices in this manual. The safety notices are accompanied by symbols that represent the severity of the safety condition. "Cautions and Danger Notices"... -
Page 16: Esd Precautions
® 53-1005235-09 Installation Guide Brocade G630 Switch Hardware Installation Guide ESD Precautions DANGER For safety reasons, the ESD wrist strap should contain a series 1 megaohm resistor. CAUTION Before plugging a cable into any port, be sure to discharge the voltage stored on the cable by touching the electrical contacts to ground surface. -
Page 17: Lifting And Weight-Related Precautions
All fiber-optic interfaces use Class 1 lasers. DANGER Use only optical transceivers that are qualified by Broadcom and comply with the FDA Class 1 radiation performance requirements defined in 21 CFR Subchapter I, and with IEC 60825 and EN60825. Optical products that do not comply with these standards might emit light that is hazardous to the eyes. -
Page 18: Quick Installation Checklist
® 53-1005235-09 Installation Guide Brocade G630 Switch Hardware Installation Guide Figure 3: Nonport-Side View with AC Power Supply and Fan Assembly Units 1. Ground Cable Connector 2. Fan Assembly Unit 3 3. Fan Assembly Unit 2 4. Fan Assembly Unit 1 5. - Page 19 ® 53-1005235-09 Installation Guide Brocade G630 Switch Hardware Installation Guide Preinstallation Tasks Review all installation requirements ahead of time as part of your site preparation. Careful planning and site preparation ensure seamless installation, especially when installing multiple devices. Table 9: Installation Prerequisites Task Task Details or Additional Information Completed...
-
Page 20: Shipping Carton Contents
® 53-1005235-09 Installation Guide Brocade G630 Switch Hardware Installation Guide Task Task Details or Additional Information Completed Gather all components required for the Items Required. initial setup. Provide power to the device. Providing Power to the Device. Attach a management station, Establishing a First-Time Serial Connection. - Page 21 ® 53-1005235-09 Installation Guide Brocade G630 Switch Hardware Installation Guide • The Brocade switch • An accessory kit containing the following items: – A serial cable – Two 6-ft power cords – Power cord retainer clips – Rubber feet – China-RoHS Hazardous/Toxic Substance statement –...
-
Page 22: Mounting The Device
® 53-1005235-09 Installation Guide Brocade G630 Switch Hardware Installation Guide Mounting the Device Mounting Options You can install the device in several ways: • As a stand-alone unit on a flat surface, for example, a table top. Use the rubber feet included with the shipment to secure the device on the surface. -
Page 23: Stand-Alone Installation
® 53-1005235-09 Installation Guide Brocade G630 Switch Hardware Installation Guide Stand-Alone Installation Complete the following steps to install the device as a stand-alone unit on a table. 1. Unpack the device and verify that the items listed under Shipping Carton Contents are present and undamaged. -
Page 24: Parts List
® 53-1005235-09 Installation Guide Brocade G630 Switch Hardware Installation Guide The following items are required to install the device using the Universal Four-Post Rack Kit: • No. 2 Phillips torque screwdriver • 1/4-in. slotted-blade torque screwdriver Parts List The following parts are provided with the 1U, 1.5U, and 2U Universal Four-Post Rack Kit (XBR-R000296). Figure 4: Universal Four-Post Rack Kit Parts 1. -
Page 25: Flush-Front Mounting
® 53-1005235-09 Installation Guide Brocade G630 Switch Hardware Installation Guide 6. Screw, 8-32 x 5/16-in. Panhead Phillips (8) 7. Screw, 8-32 x 5/16-in. Flathead Phillips (16) 8. Screw, 6-32 x 1/4-in. Panhead Phillips (8) 9. Screw, 10-32 x 5/8-in. Panhead Phillips (8) 10. -
Page 26: Attaching The Front Brackets
® 53-1005235-09 Installation Guide Brocade G630 Switch Hardware Installation Guide Attaching the Front Brackets Complete the following steps to attach the front brackets to the device: 1. Position the right front bracket with the flat side against the right side of the device at the front of the device, as shown in the following figure. -
Page 27: Attaching The Extension Brackets To The Device
® 53-1005235-09 Installation Guide Brocade G630 Switch Hardware Installation Guide Attaching the Extension Brackets to the Device Complete the following steps to attach the extension brackets to the device. You can use medium and long extension brackets for this task. 1. -
Page 28: Installing The Device In The Rack
® 53-1005235-09 Installation Guide Brocade G630 Switch Hardware Installation Guide Installing the Device in the Rack Complete the following steps to install the device in the rack. 1. Position the device in the rack, as shown in the following figure. Provide temporary support under the device as you secure the rail kit to the rack. - Page 29 ® 53-1005235-09 Installation Guide Brocade G630 Switch Hardware Installation Guide 4. Repeat Step 2 and 3 to attach the left rear bracket to the left extension bracket. 5. Adjust the brackets to the rack depth and tighten all 6-32 x 1/4-in. screws to a torque of 10 cm-kg (9 in.-lb). Figure 8: Attaching the Rear Brackets to the Extensions 1.
-
Page 30: Attaching The Rear Brackets To The Rack Posts
® 53-1005235-09 Installation Guide Brocade G630 Switch Hardware Installation Guide Attaching the Rear Brackets to the Rack Posts Complete the following steps to attach the rear brackets to the rack posts: 1. Attach the right rear bracket to the right rear rack post using two 10-32 x 5/8-in. panhead screws and two retainer nuts, as shown in the following figure. -
Page 31: Attaching The Front Brackets To The Rear Of The Device
® 53-1005235-09 Installation Guide Brocade G630 Switch Hardware Installation Guide NOTE The illustrations in the rack installation procedures show a 1U device, but the instructions are the same for a 2U device. The illustrations in the rack installation procedures are for reference only and may not show the actual device. - Page 32 ® 53-1005235-09 Installation Guide Brocade G630 Switch Hardware Installation Guide Complete the following steps to attach the front brackets to the rear of the device: 1. Position the right front bracket with the flat side against the right rear side of the device, as shown in the following figure.
-
Page 33: Attaching The Extensions To The Front Of The Device
® 53-1005235-09 Installation Guide Brocade G630 Switch Hardware Installation Guide Attaching the Extensions to the Front of the Device Complete the following steps to attach the extension brackets to the front of the device. You can use medium or long extension brackets for this task, depending on your rack depth. -
Page 34: Installing The Device In The Rack
® 53-1005235-09 Installation Guide Brocade G630 Switch Hardware Installation Guide Installing the Device in the Rack Complete the following steps to install the device in the rack: 1. Position the device in the rack, as shown in the following figure, providing temporary support under the device until the rail kit is secured to the rack. - Page 35 ® 53-1005235-09 Installation Guide Brocade G630 Switch Hardware Installation Guide 3. Attach the brackets using four 6-32 x 1/4-in. panhead screws. 4. Repeat Steps 2 and 3 to attach the left rear bracket to the left extension. 5. Adjust the brackets to the rack depth, and tighten all 6-32 x 1/4-in. screws to a torque of 10 cm-kg (9 in.-lb). Figure 13: Attaching the Rear Brackets to the Extensions at the Front of the Device 1.
- Page 36 ® 53-1005235-09 Installation Guide Brocade G630 Switch Hardware Installation Guide Figure 14: Attaching the Short or Long Rear Brackets to the Extensions 1. Rear Bracket, Short, or Long 2. Screws, 6-32 x 1/4-in. Panhead Phillips 53-1005235-09...
-
Page 37: Attaching The Rear Brackets To The Front Rack Posts
® 53-1005235-09 Installation Guide Brocade G630 Switch Hardware Installation Guide Attaching the Rear Brackets to the Front Rack Posts Complete the following steps to attach the rear brackets to the front rack posts: 1. Attach the right rear bracket to the right front rack post using two 10-32 x 5/8-in. screws and two retainer nuts, as shown in the following figure. -
Page 38: Time And Items Required
® 53-1005235-09 Installation Guide Brocade G630 Switch Hardware Installation Guide You can mount the device in a two-post rack in two ways: • With the port side flush with the front posts • With the posts that are mounted to the mid-section of the device Observe the following when mounting this device: •... -
Page 39: Flush-Front Mounting
® 53-1005235-09 Installation Guide Brocade G630 Switch Hardware Installation Guide 5. Screw, 8-32 x 5/16-in. Flathead Phillips (16) 6. Screw, 6-32 x 1/4-in. Panhead Phillips (8) 7. Screw, 10-32 x 5/8-in. Panhead Phillips (8) 8. Retainer Nut, 10-32 (8) Ensure that the items listed and illustrated in the preceding figure are included in the kit. NOTE Not all parts may be used with certain installations depending on the device type. -
Page 40: Attaching The Front Brackets To The Device
® 53-1005235-09 Installation Guide Brocade G630 Switch Hardware Installation Guide Attaching the Front Brackets to the Device Complete the following steps to attach the front brackets to the device: 1. Position the right front bracket with the flat side against the right side of the device, as shown in the following figure. 2. -
Page 41: Attaching The Front Brackets To The Rack
® 53-1005235-09 Installation Guide Brocade G630 Switch Hardware Installation Guide Attaching the Front Brackets to the Rack Complete the following steps to install the device in the rack: 1. Position the device in the rack, as shown in the following figure, providing temporary support under the device until the rack kit is fully secured to the rack. -
Page 42: Attaching The Rear Brackets To The Rack
® 53-1005235-09 Installation Guide Brocade G630 Switch Hardware Installation Guide Attaching the Rear Brackets to the Rack Complete the following steps to attach the rear brackets to the rack: 1. Select the proper length bracket for your post width. If your posts are 3 inches to 5 inches wide, use the brackets marked 3-5 INCH. -
Page 43: Attaching The Rear Brackets To The Device
® 53-1005235-09 Installation Guide Brocade G630 Switch Hardware Installation Guide Attaching the Rear Brackets to the Device Complete the following steps to attach the rear brackets to the device: 1. Align the right rear bracket to the right rear of the device and use four 8-32 x 5/16-in. panhead screws to attach the bracket to the device, as shown in the following figure. - Page 44 ® 53-1005235-09 Installation Guide Brocade G630 Switch Hardware Installation Guide • The device must be turned off and disconnected from the fabric during this procedure. • The illustrations in this document show a 1U device, but the instructions are the same for a 2U device. •...
-
Page 45: Attaching The Front Brackets To The Device
® 53-1005235-09 Installation Guide Brocade G630 Switch Hardware Installation Guide Attaching the Front Brackets to the Device Complete the following steps to attach the front brackets to the device. 1. Position the right front bracket with the flat side against the right side of the device, as shown in the following figure. 2. -
Page 46: Attaching The Front Brackets To The Rack
® 53-1005235-09 Installation Guide Brocade G630 Switch Hardware Installation Guide Attaching the Front Brackets to the Rack Complete the following steps to install the front brackets to the rack: 1. Position the device in the rack, as shown in the following figure, providing temporary support under the device until the rack kit is fully secured to the rack. -
Page 47: Attaching The Rear Brackets To The Rack
® 53-1005235-09 Installation Guide Brocade G630 Switch Hardware Installation Guide Attaching the Rear Brackets to the Rack Complete the following steps to attach the rear brackets to the rack: 1. Select the proper length bracket for your post width. If your posts are 3 in. to 5 in. wide, use the brackets marked 3-5 INCH. -
Page 48: Attaching The Rear Brackets To The Device
® 53-1005235-09 Installation Guide Brocade G630 Switch Hardware Installation Guide Attaching the Rear Brackets to the Device Complete the following steps to attach the rear brackets to the device: 1. Align the right rear bracket to the right rear of the device, and use four 8-32 x 5/16-in. panhead screws to attach the bracket to the device, as shown in the following figure. -
Page 49: Initial Setup And Verification
PNY Attache 3.0 4 USB 32GB Flash Drive • PNY Attache 3.0 4 USB 16GB Flash Drive These drives are not orderable from Broadcom but are generically branded and can be purchased from other suppliers. Providing Power to the Device Perform the following steps to provide power to the device: 1. -
Page 50: Configuring The Ip Address
® 53-1005235-09 Installation Guide Brocade G630 Switch Hardware Installation Guide 2. Disable any serial communication programs running on the workstation, such as synchronization programs. 3. Open a terminal emulator application, such as PuTTY, XShell, or SecureCRT on a Windows PC, or TERM, TIP, or C- Kermit in a Linux environment, and configure the application as follows: •... -
Page 51: Setting A Static Ip Address
® 53-1005235-09 Installation Guide Brocade G630 Switch Hardware Installation Guide Setting a Static IP Address To set a static IP address for the device, complete the following steps: 1. Log on to the device as admin. 2. Use the ipaddrset command to set the Ethernet IP address. •... -
Page 52: Setting The Time Zone
® 53-1005235-09 Installation Guide Brocade G630 Switch Hardware Installation Guide Setting the Time Zone The default time zone is Coordinated Universal Time (UTC). The time zone must be set only once because the value is stored in nonvolatile memory. Use the following procedure to set the time zone: 1. -
Page 53: Customizing The Chassis Name And Switch Name
® 53-1005235-09 Installation Guide Brocade G630 Switch Hardware Installation Guide Customizing the Chassis Name and Switch Name Changing the chassis and switch names is important for uniquely distinguishing and identifying the device and for accurate tracking of logs and errors. The messages that appear in the log are labeled with the switch name or chassis name, which makes tracking the errors much easier. -
Page 54: Verifying Correct Operation
® 53-1005235-09 Installation Guide Brocade G630 Switch Hardware Installation Guide e) Complete the remaining prompts or press Ctrl+D to accept the remaining settings without completing all the prompts. f) Re-enable the switch by entering the switchEnable command. Verifying Correct Operation Perform the following steps to verify the correct operation of the device. -
Page 55: Backing Up The Configuration
® 53-1005235-09 Installation Guide Brocade G630 Switch Hardware Installation Guide d10a00 No_Module d11000 Online F-Port 10:00:00:10:9b:7d:b4:df d11100 Online F-Port 10:00:00:10:9b:7d:b4:de d11200 Online F-Port 10:00:00:10:9b:7d:b4:7f d11300 Online F-Port 10:00:00:10:9b:7d:b4:7e d11400 Online F-Port 10:00:00:10:9b:7d:b4:1c d11500 Online F-Port 10:00:00:10:9b:7d:b4:1b d11600 Online F-Port 10:00:00:10:9b:7d:b4:85 d11700 Online F-Port... -
Page 56: Powering Down The Device
® 53-1005235-09 Installation Guide Brocade G630 Switch Hardware Installation Guide User Name [user]: anonymous Path/Filename [home dir>/config.txt]: dumps/supportsaves/user1/fos9k/Release/R000_all Section (all|chassis|FID# [all]): configUpload complete: All selected config parameters are uploaded 2020/03/09-18:46:09, [CONF-1001], 1838, FID 128, INFO, switchG630, configUpload completed successfully for all. -
Page 57: Installing Transceivers And Cables
All fiber-optic interfaces use Class 1 lasers. DANGER Use only optical transceivers that are qualified by Broadcom and comply with the FDA Class 1 radiation performance requirements defined in 21 CFR Subchapter I, and with IEC 60825 and EN60825. Optical products that do not comply with these standards might emit light that is hazardous to the eyes. -
Page 58: Installing An Sfp+ Transceiver
® 53-1005235-09 Installation Guide Brocade G630 Switch Hardware Installation Guide Installing an SFP+ Transceiver The device supports only transceivers that are qualified for Brocade products. If you use an unqualified transceiver, the switchshow command output shows the port in a Mod_Inv state. Fabric OS firmware also logs the issue in the system error log. - Page 59 ® 53-1005235-09 Installation Guide Brocade G630 Switch Hardware Installation Guide NOTE Replacing an SFP+ transceiver may cause disruption in the fabric or to the attached device. NOTE 16G and 32G SFP+ transceivers have pull tabs instead of bails. Always use the pull tab to insert or remove the SFP+ transceivers, since the SFP might be hot.
-
Page 60: Installing A Qsfp Transceiver
® 53-1005235-09 Installation Guide Brocade G630 Switch Hardware Installation Guide Installing a QSFP Transceiver Consider the following when installing these transceivers: • The device supports only transceivers that are qualified for Brocade products. If you use an unqualified transceiver, the switchshow command output shows the port in a Mod_Inv state. -
Page 61: Replacing A Qsfp Transceiver
® 53-1005235-09 Installation Guide Brocade G630 Switch Hardware Installation Guide Replacing a QSFP Transceiver NOTE SFP+ transceivers are hot-swappable. Consider the following when replacing these transceivers: • The device supports only transceivers that are qualified for Brocade products. If you use an unqualified transceiver, the switchshow command output shows the port in a Mod_Inv state. -
Page 62: Verifying The Operation Of New Transceivers
® 53-1005235-09 Installation Guide Brocade G630 Switch Hardware Installation Guide 4. Position a cable so that the key (the ridge on one side of the cable connector) is aligned with the slot in the transceiver. Insert the cable into the transceiver until the latching mechanism clicks. NOTE Cables are keyed so that they can be inserted in only one way. -
Page 63: Monitoring The Device
® 53-1005235-09 Installation Guide Brocade G630 Switch Hardware Installation Guide Monitoring the Device Interpreting Port-Side LEDs System activity and status can be determined through the activity of the LEDs on the switch. There are three possible LED states: no light, a steady light, and a flashing light. Flashing lights may be slow, fast, or flickering. The lights are green or amber. -
Page 64: System Power Led
® 53-1005235-09 Installation Guide Brocade G630 Switch Hardware Installation Guide 12. FC Port 119 (QSFP 5) Status LED 13. FC Port 118 (QSFP 5) Status LED 14. FC Port 117 (QSFP 5) Status LED 15. FC Port 116 (QSFP 5) Status LED 16. -
Page 65: Management Port Leds
® 53-1005235-09 Installation Guide Brocade G630 Switch Hardware Installation Guide LED Color Status of Hardware Recommended Action Flashing amber and green Attention is required. A number of variables Check the management interface and the can cause this status, including a single error log for details on the cause of the power supply failure, a fan failure, or status. -
Page 66: Qsfp Port Status Leds
® 53-1005235-09 Installation Guide Brocade G630 Switch Hardware Installation Guide QSFP Port Status LEDs Use the following table to interpret the QSFP port status LEDs. Table 17: QSFP Port Status LED Patterns during Normal Operation LED Color Status of Hardware Recommended Action •... -
Page 67: Power Supply Ok And Fail Status Leds
® 53-1005235-09 Installation Guide Brocade G630 Switch Hardware Installation Guide Figure 30: Nonport-Side LEDs with AC Power Supplies 1. Power Supply Unit 2 OK LED 2. Power Supply Unit 2 FAIL LED 3. Power Supply Unit 1 OK LED 4. Power Supply Unit 1 FAIL LED 5. -
Page 68: Interpreting Post Results
® 53-1005235-09 Installation Guide Brocade G630 Switch Hardware Installation Guide Table 19: Fan Assembly Status LED Patterns During Normal Operation LED Color Description Action Required No light Fan assembly is not receiving power. Verify that the fan FRU is seated correctly. Steady green Fan assembly is operating normally. -
Page 69: Running Diagnostic Tests
® 53-1005235-09 Installation Guide Brocade G630 Switch Hardware Installation Guide • Performs universal port configuration. • Initializes links. • Analyzes the fabric. If any ports are connected to other switches, the switch participates in a fabric configuration. • Obtains a domain ID and assigns port addresses. •... -
Page 70: Power Supply Assemblies
® 53-1005235-09 Installation Guide Brocade G630 Switch Hardware Installation Guide Power Supply Assemblies Power Supply Assembly Overview The power supply assembly units in the Brocade G630 chassis can be removed and replaced without special tools. The switch can continue to operate during the replacement. The device supports the following types of power supplies. -
Page 71: Precautions Specific To The Power Supply Assemblies
® 53-1005235-09 Installation Guide Brocade G630 Switch Hardware Installation Guide 3. AC Power Cable Receptacle 4. Power Supply Assembly Latch 5. Power Supply Unit OK LED NOTE The two power supply assemblies that are concurrently installed in the chassis must be of the same power type, model (airflow direction), and part number. -
Page 72: Power Supply Assembly Fault Indicators
® 53-1005235-09 Installation Guide Brocade G630 Switch Hardware Installation Guide • Intake power supply and fan assembly with an orange "I" label or without any label: Pulls air from the nonport side of the switch and exhausts it out the port side. •... -
Page 73: Time And Items Required
® 53-1005235-09 Installation Guide Brocade G630 Switch Hardware Installation Guide Replacing a Power Supply (Hot-Swap) If your device is up and running with two power supply assemblies, but one of them must be replaced, complete the following steps: 1. Power down the source for the power supply assembly being replaced. 2. -
Page 74: Removing A Power Supply Assembly
® 53-1005235-09 Installation Guide Brocade G630 Switch Hardware Installation Guide Removing a Power Supply Assembly Perform the following steps to remove a faulty power supply assembly: 1. To leave the device in service while removing a power supply assembly, verify that the other power supply assembly (the one not being replaced) has been powered on for at least 4 seconds and has a steady green LED. -
Page 75: Verifying The Operation Of The Power Supply And Fan Assemblies
® 53-1005235-09 Installation Guide Brocade G630 Switch Hardware Installation Guide CAUTION Carefully follow the mechanical guides on each side of the power supply slot and make sure the power supply is properly inserted in the guides. Never insert the power supply upside down. Figure 33: Inserting an AC Power Supply Assembly 1. -
Page 76: Fan Assemblies
® 53-1005235-09 Installation Guide Brocade G630 Switch Hardware Installation Guide Fan Assemblies Fan Assembly Overview The fan assembly units in the Brocade G630 chassis can be removed and replaced without special tools. The device can continue operating during the replacement. The device supports the following types of fan assemblies: •... -
Page 77: Precautions Specific To The Fan Assemblies
® 53-1005235-09 Installation Guide Brocade G630 Switch Hardware Installation Guide • The three fan assemblies that are concurrently installed in the chassis must be of the same power type, model (airflow direction), and part number. If the airflow directions are different, an error is generated on the console. •... -
Page 78: Air_Flow And Encr Error Monitoring
® 53-1005235-09 Installation Guide Brocade G630 Switch Hardware Installation Guide • Check the fan assembly status LED. See Fan Assembly Status LED to interpret the meaning of LED operation. • In Web Tools, click the Fan Status icon. • Enter the fanShow command at the prompt to display fan assembly status, as shown in the following example: Device:admin>... -
Page 79: Recording Critical Information About The Power Supply And Fan Assembly
® 53-1005235-09 Installation Guide Brocade G630 Switch Hardware Installation Guide • New fan assembly (must have the same airflow direction as the fan assembly being replaced) • No. 1 Phillips-head screwdriver Recording Critical Information about the Power Supply and Fan Assembly You can use the following commands to record the power supply and fan assembly configuration and operation information:... -
Page 80: Inserting A New Fan Assembly
® 53-1005235-09 Installation Guide Brocade G630 Switch Hardware Installation Guide 2. Using a Phillips screwdriver, unscrew the captive screw. 3. Remove the power supply and fan assembly from the chassis by pulling the handle out and away from the chassis. The fans in the other power supply automatically switch to high speed to maintain adequate cooling. -
Page 81: Verifying The Operation Of The Power Supply And Fan Assemblies
® 53-1005235-09 Installation Guide Brocade G630 Switch Hardware Installation Guide 4. Gently push the fan assembly into the chassis until it is firmly seated. 5. Using the Phillips screwdriver, secure the fan assembly to the chassis by tightening the captive screw. 6. -
Page 82: Technical Specifications
® 53-1005235-09 Installation Guide Brocade G630 Switch Hardware Installation Guide Technical Specifications System Specifications System Component Description Enclosure 2U, power from the back of the switch. • Front-to-back airflow/nonport-side exhaust. • Back-to-front airflow/nonport-side intake. Power inlet C14. Power supplies Dual, hot-swappable, redundant power supplies with integral cooling fans. Fans Three hot-swappable, redundant fan assembly units with system cooling fans. - Page 83 ® 53-1005235-09 Installation Guide Brocade G630 Switch Hardware Installation Guide LEDs System Component Description System power LED One green system power status LED (lower) on the port side. System status LED One bicolor (green/amber) system status LED (upper) on the port side. Ethernet port link LED One link LED to the left of the RJ-45 connector on the port side.
- Page 84 ® 53-1005235-09 Installation Guide Brocade G630 Switch Hardware Installation Guide Condition Operational Nonoperational Airflow Maximum: 387.37 cmh (228 cfm) Nominal: 227.67 cmh (134 cfm) Operating noise Maximum: 74.2 dB with intake airflow Maximum: 71.1 dB with exhaust airflow Power Supply Specifications (Per PSU) Maximum Maximum Output...
- Page 85 ® 53-1005235-09 Installation Guide Brocade G630 Switch Hardware Installation Guide Cable Size Extended Long Port Speed (G) Short Wavelength (SWL) Long Wavelength (LWL) (Microns) Wavelength (ELWL) 30 km (18.6 miles) 50m (164 ft) (OM2) 150m (492 ft) (OM3) 190m (623 ft) (OM4) 62.5 21m (68 ft) 10 km (6.2 miles)
- Page 86 ® 53-1005235-09 Installation Guide Brocade G630 Switch Hardware Installation Guide Parameter Value Stop bits 53-1005235-09...
-
Page 87: Regulatory Statements
® 53-1005235-09 Installation Guide Brocade G630 Switch Hardware Installation Guide Regulatory Statements BSMI Statement (Taiwan) Warning: This is Class A product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures. Canadian Requirements This Class A digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations, ICES-003 Class A. -
Page 88: China Ccc Statement
® 53-1005235-09 Installation Guide Brocade G630 Switch Hardware Installation Guide China CCC Statement 53-1005235-09... -
Page 89: China Rohs
® 53-1005235-09 Installation Guide Brocade G630 Switch Hardware Installation Guide China ROHS FCC Warning (U.S. Only) This equipment has been tested and complies with the limits for a Class A computing device pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. -
Page 90: Taiwan Rohs Certification
® 53-1005235-09 Installation Guide Brocade G630 Switch Hardware Installation Guide Taiwan ROHS Certification VCCI Statement 53-1005235-09... -
Page 91: Regulatory Compliance
® 53-1005235-09 Installation Guide Brocade G630 Switch Hardware Installation Guide This is a Class A product based on the standard of the Voluntary Control Council for Interference by Information Technology Equipment (VCCI). If this equipment is used in a domestic environment, radio disturbance might arise. When such trouble occurs, the user might be required to take corrective actions. -
Page 92: Cautions And Danger Notices
® 53-1005235-09 Installation Guide Brocade G630 Switch Hardware Installation Guide Cautions and Danger Notices Cautions A Caution statement alerts you to situations that can be potentially hazardous to you or cause damage to hardware, firmware, software, or data. Ein Vorsichthinweis warnt Sie vor potenziellen Personengefahren oder Beschädigung der Hardware, Firmware, Software oder auch vor einem möglichen Datenverlust Un message de mise en garde vous alerte sur des situations pouvant présenter un risque potentiel de dommages corporels ou de dommages matériels, logiciels ou de perte de données. - Page 93 ® 53-1005235-09 Installation Guide Brocade G630 Switch Hardware Installation Guide Electrical Cautions CAUTION Before plugging a cable into any port, be sure to discharge the voltage stored on the cable by touching the electrical contacts to ground surface. VORSICHT Bevor Sie ein Kabel in einen Anschluss einstecken, entladen Sie jegliche im Kabel vorhandene elektrische Spannung, indem Sie mit den elektrischen Kontakten eine geerdete Oberfläche berühren.
- Page 94 ® 53-1005235-09 Installation Guide Brocade G630 Switch Hardware Installation Guide CAUTION The power supply switch must be in the off position when you insert the power supply into the chassis. Damage to the switch can result if a live power supply is installed. VORSICHT Der Schalter des Netzteils muss in der Stellung „Aus“...
-
Page 95: Danger Notices
® 53-1005235-09 Installation Guide Brocade G630 Switch Hardware Installation Guide CAUTION For a DC system, use grounding wire of at least 16 AWG. The grounding wire should be attached to the DC input connector; the other end connects to the building ground. VORSICHT Für ein Gleichstromsystem verwenden Erdungskabel von mindestens 16 AWG (1.31 mm2) (amerikanische Norm für Drahtquerschnitte). - Page 96 ® 53-1005235-09 Installation Guide Brocade G630 Switch Hardware Installation Guide DANGER Be careful not to accidently insert your fingers into the fan tray while removing it from the chassis. The fan may still be spinning at a high speed. GEFAHR Die Finger dürfen nicht versehentlich in das Ventilatorblech gesteckt werden, wenn dieses vom Gehäuse abgenommen wird.
- Page 97 ® 53-1005235-09 Installation Guide Brocade G630 Switch Hardware Installation Guide DANGER To avoid high voltage shock, do not open the device while the power is on. GEFAHR Das eingeschaltete Gerät darf nicht geöffnet werden, da andernfalls das Risiko eines Stromschlags mit Hochspannung besteht.
-
Page 98: Revision History
® 53-1005235-09 Installation Guide Brocade G630 Switch Hardware Installation Guide Revision History 53-1005235-09; 9 April 2021 Made editorial and stylistic revisions. 53-1005235-08; 18 December 2020 The following changes have been made to this document from its previous version: • Added the Technical Specifications chapter.
