Attaching the Rear Brackets to the Extensions at the Front of the Device

Complete the following steps to attach the rear brackets to the extensions. Rack depth determines use of short or long
brackets.
1. Select the proper length rear bracket for your rack depth.
2. Slide the right rear bracket onto the right extension.
The short rear brackets are shown in the first figure. Use the first and third vertical pairs of holes for the screws.
See the second figure for the positioning of the short or long brackets and screws.
3. Attach the brackets using four 6-32 x 1/4-in. panhead screws.
4. Repeat Steps 2 and 3 to attach the left rear bracket to the left extension.
5. Adjust the brackets to the rack depth, and tighten all 6-32 x 1/4-in. screws to a torque of 10 cm-kg (9 in.-lb).

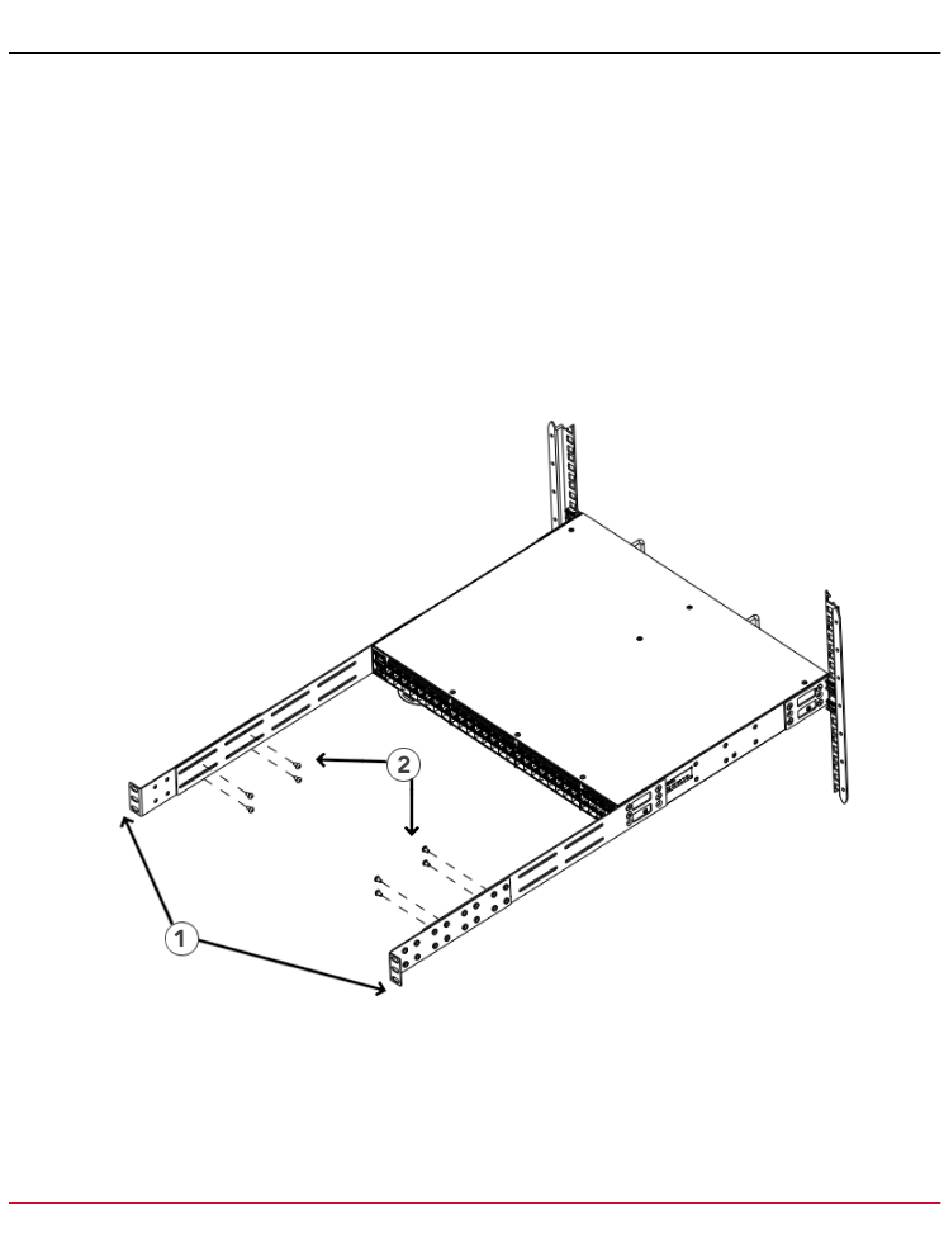

Figure 12: Attaching the Rear Brackets to the Extensions at the Front of the Device
1. Rear Brackets, Short
2. Screws, 6-32 x 1/4-in. Panhead Phillips
