Attaching the Rear Brackets to the Rack

Complete the following steps to attach the rear brackets to the rack.
1. Select the proper length bracket for your post width. If your posts are 3 inches to 5 inches wide, use the brackets
marked 3-5 INCH. If your posts are 5 to 6 inches wide, use the brackets marked 5-6 INCH.
2. Position the right rear bracket in the right rear of the device, as shown in the figure.
3. Attach the bracket to the right rack upright using two 10-32 x 5/8-in. panhead screws and two retainer nuts. Use the
upper and lower holes in the bracket.
4. Repeat Steps 2 and 3 to attach the left rear bracket to the left rack upright.
5. Tighten all the 10-32 x 5/8-in. screws to a torque of 29 cm-kg (25 in.-lb).

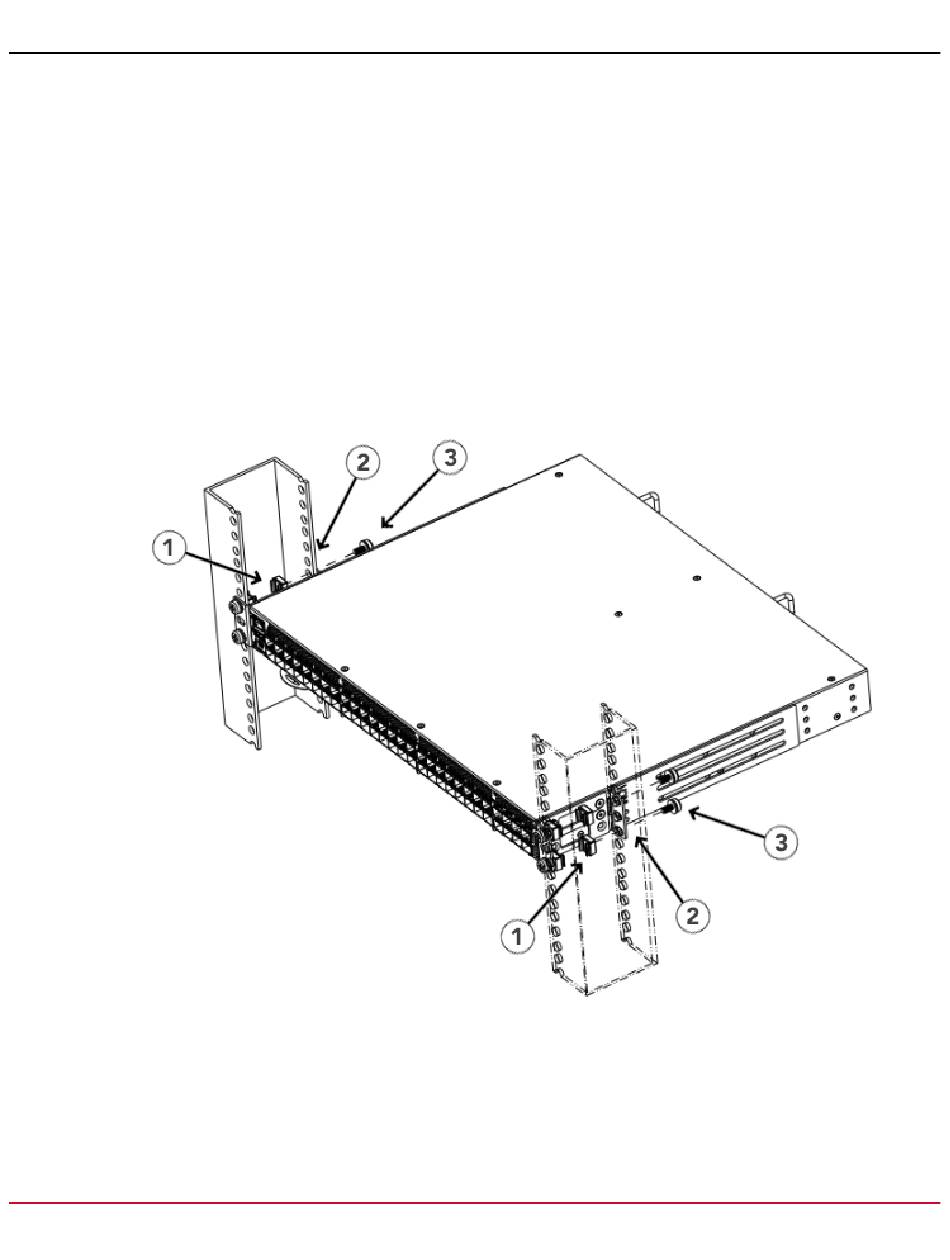

Figure 18: Attaching the Rear Brackets to the Rack
1. Retainer Nuts, 10-32
2. Rear Brackets
3. Screws, 10-32 x 5/8-in. Panhead Phillips
