Attaching the Rear Brackets to the Front Rack Posts

Complete the following steps to attach the rear brackets to the front rack posts.
1. Attach the right rear bracket to the right front rack post using two 10-32 x 5/8-in. screws and two retainer nuts, as
shown in the figure. Use the upper and lower holes in the bracket.
2. Attach the left rear bracket to the left front rack post using two 10-32 x 5/8-in. screws and two retainer nuts. Use the
upper and lower holes in the bracket.
3. Tighten all 10-32 x 5/8-in. screws to a torque of 29 cm-kg (25 in.-lb).

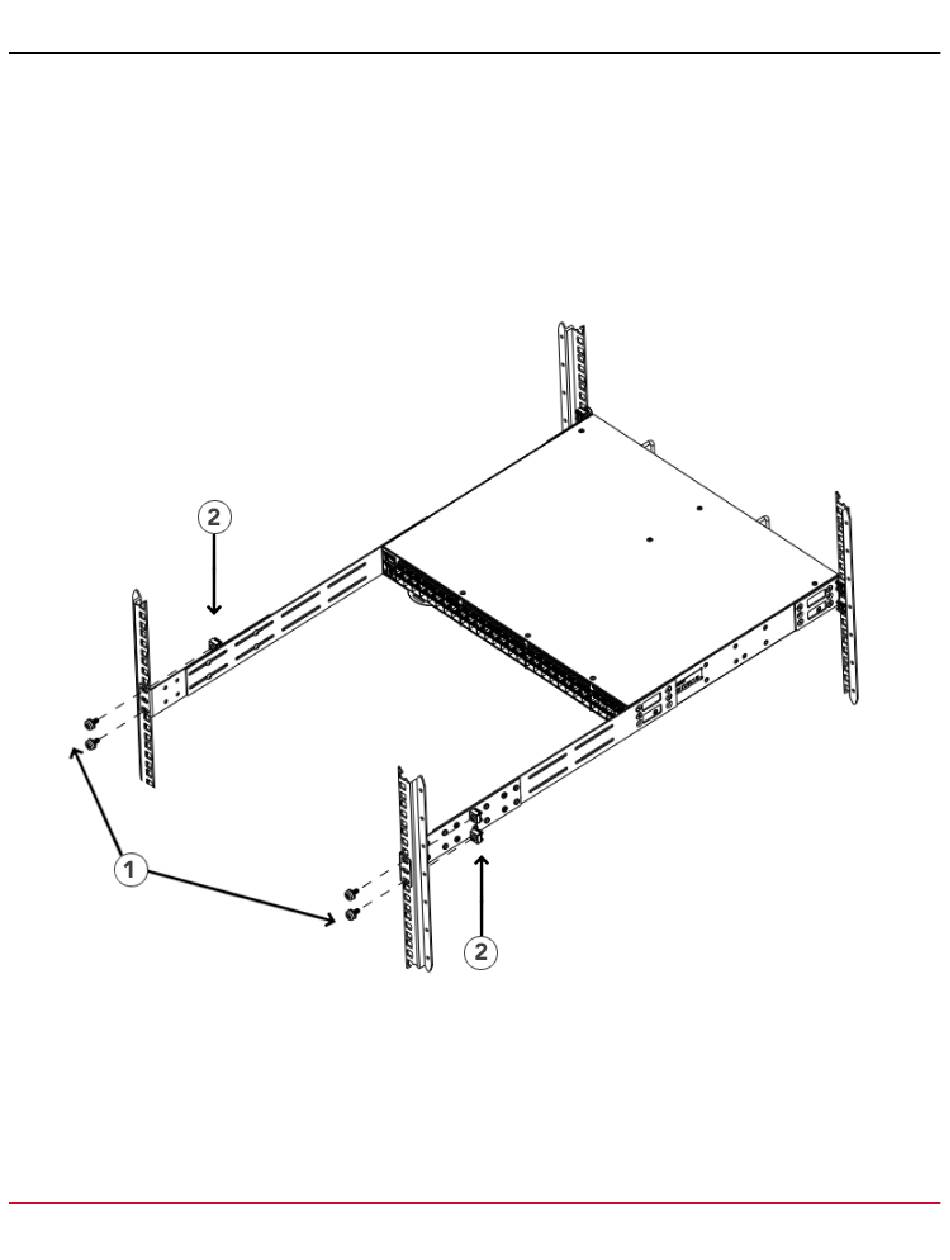

Figure 14: Attaching the Rear Brackets to the Front Rack Posts
1. Screws, 10-32 x 5/8-in. Panhead Phillips
2. Retainer Nuts, 10-32
Installing the Universal Two-Post Rack Kit (XBR–R000294)
Use the following instructions to install a Brocade 1U or 2U device in a two-post telecommunications (telco) rack using the
Universal Two-Post Rack Kit (XBR-R000294).
