Installing the Device in the Rack

Complete the following steps to install the device in the rack.
1. Position the device in the rack, as shown the figure. Provide temporary support under the device as you secure the rail
kit to the rack.
2. Attach the right front bracket to the right front rack post using two 10-32 x 5/8-in. panhead screws and two retainer
nuts. Use the upper and lower holes in the bracket.
3. Tighten all 10-32 x 5/8-in. screws to a torque of 29 cm-kg (25 in.-lb).

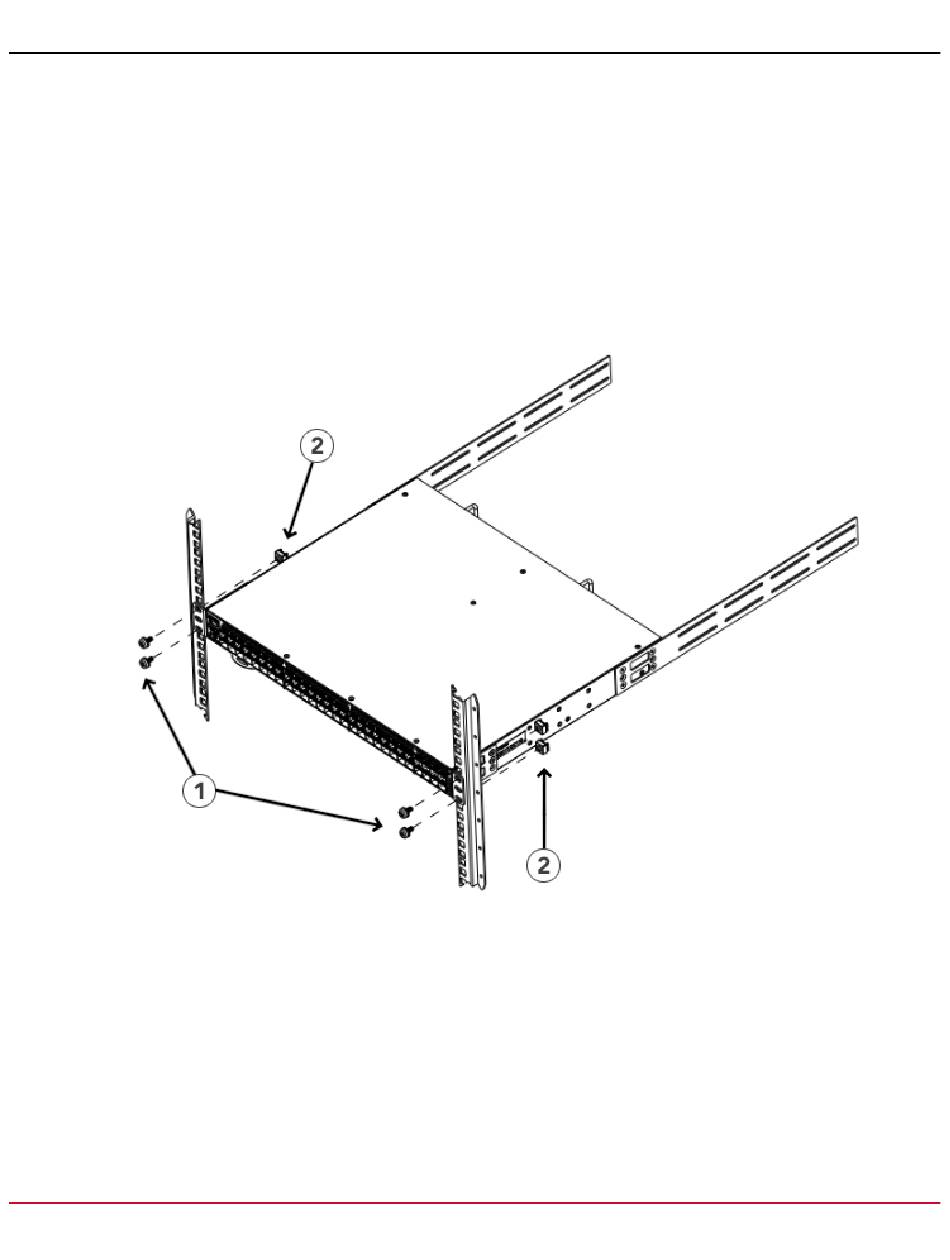

Figure 6: Positioning the Device in the Rack
1. Screws, 10-32 x 5/8-in. Panhead Phillips
2. Retainer Nuts, 10-32
