Installing the Device in the Rack

Complete the following steps to install the device in the rack.
1. Position the device in the rack, as shown in the following figure. Provide temporary support under the device as you
secure it to the rack.
2. Attach the right front bracket to the right front rack post using two 10-32 x 5/8-in. screws and two retainer nuts.
3. Attach the left front bracket to the left front rack post using two 10-32 x 5/8-in. screws and two retainer nuts.
4. Tighten all the 10-32 x 5/8-in. screws to a torque of 25 in.-lbs (29 cm-kgs).

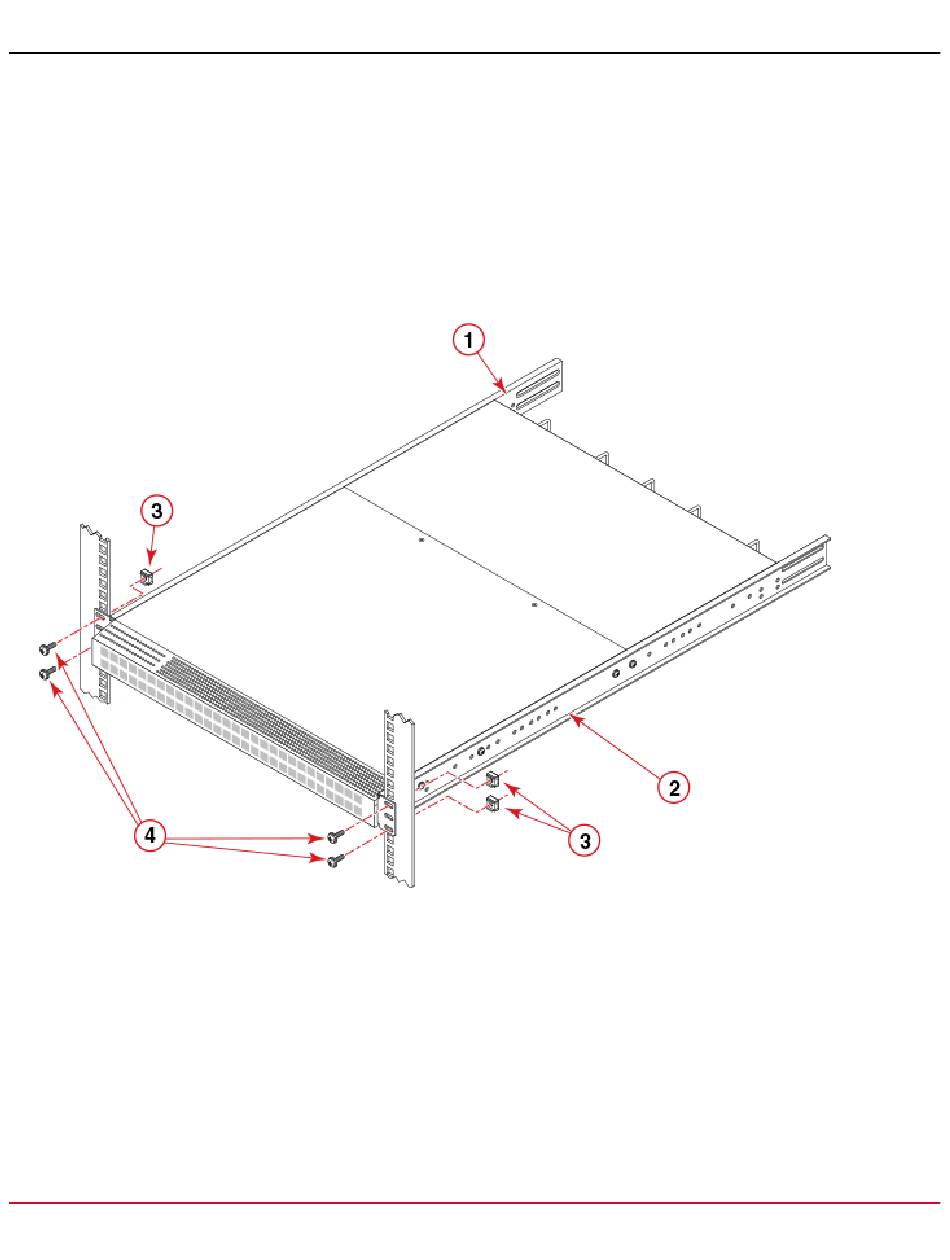

Figure 10: Positioning the Device in the Rack
1. Bracket, Front Left
2. Bracket, Front Right
3. Retainer Nut, 10-32
4. Screw, 10-32 x 5/8-in. Panhead Phillips
NOTE
The preceding figure shows a recessed mounting configuration on the left and a flush mounting configuration
on the right. You can select either mounting option.
NOTE
Install the device with the airflow aligned with any other devices in the rack. Some devices have airflow
running from the port side to the fan side, and others have the opposite arrangement. Make sure that the
airflow for all devices moves in the same direction to maximize cooling.
