Transaxle

18 to 22 ft−lb
(25 to 29 N−m)
10
Antiseize
Lubricant
90 to 120 in−lb
(10.2 to 13.5 N−m)
7
5
RIGHT
FRONT
1. Rear wheel driveshaft assembly (2)
2. Cap screw (2)
3. Flat washer (2)
4. Flange nut (2)
5. Transaxle driveshaft assembly
6. Cap screw (2)
7. Lock nut (2)
Drive Train
8
6
35 to 40 ft−lb
(48 to 54 N−m)
Antiseize
Lubricant
8. Transaxle assembly
9. Cap screw (2)
10. Flange head screw (4)
11. Rear brake caliper
12. Parking brake caliper (LH shown)
13. Wheel bearing hub
14. Hub support
45 to 55 ft−lb
(62 to 74 N−m)
9
Antiseize
Lubricant
2
3
4
1
20
18
35 to 40 ft−lb
(48 to 54 N−m)

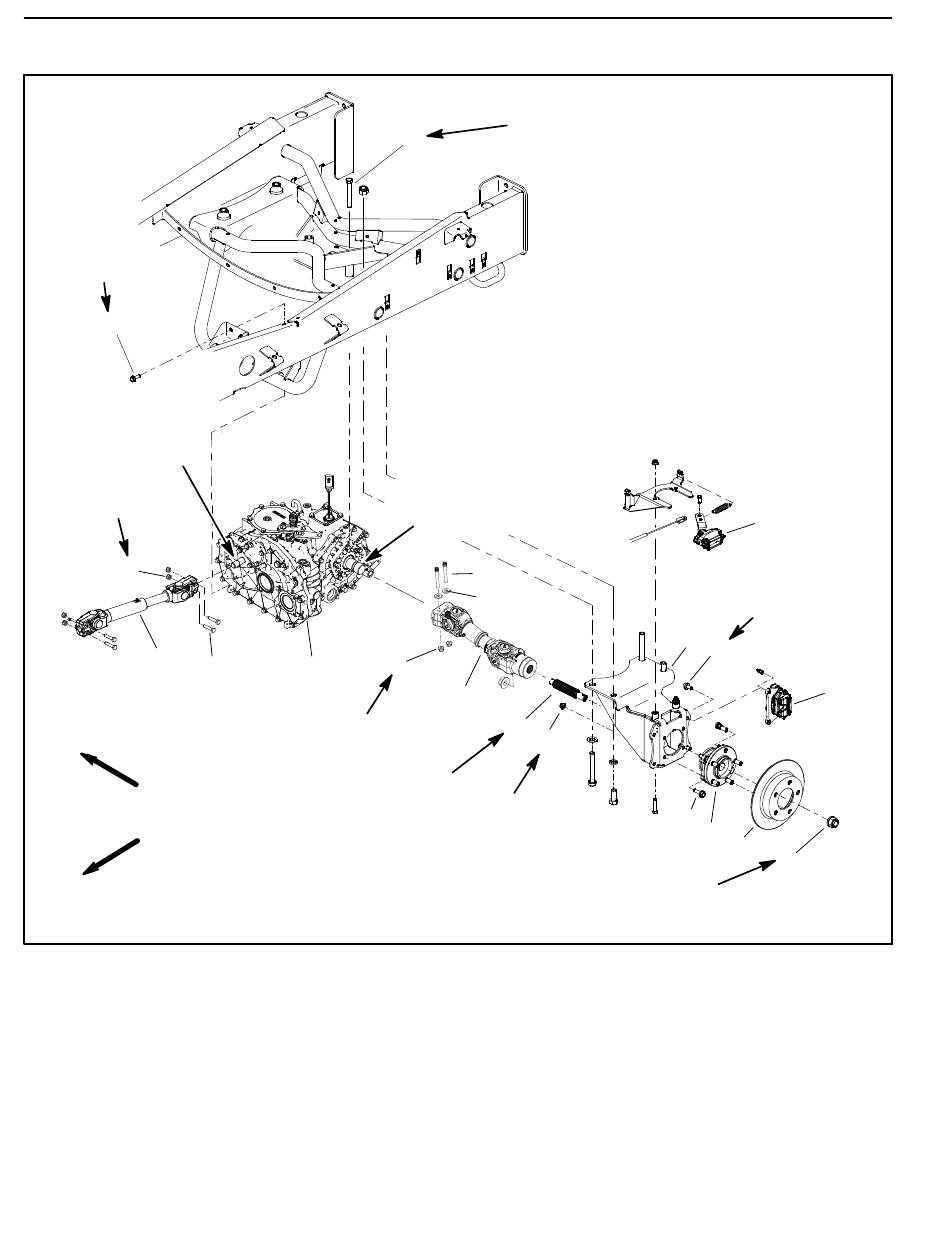

Figure 11
Page 7 − 16
12
35 to 40 ft−lb
(48 to 54 N−m)
14
19
17
13
15
170 to 180 ft−lb
(230 to 244 N−m)
Staked
15. Brake rotor
16. Spindle nut
17. Cap screw (4)
18. Flange nut (4)
19. Flange head screw (2)
20. Splined shaft
11
16
