29.Install R.H. axle shaft assembly:
A. Thoroughly clean mating surface of transaxle
case and seal cover of R.H. axle shaft assembly
B. Apply silicone sealant onto mating surface of
seal cover.
C. Install axle shaft assembly and secure with four
(4) cap screws. Torque cap screws from 18 to 22 ft−
lb (25 to 29 N−m).
30.Install L.H. axle shaft assembly:
A. Thoroughly clean mating surface of differential
carrier and side cover.
B. Insert selected shims into housing of side cover.
NOTE: The thickest shim should be installed
against the bearing.
C. Install axle shaft assembly and secure with flange
head screws. Torque cap screws from 18 to 22 ft−lb
(25 to 29 N−m).
Multi Pro 1750
1
2
1. Mating surface
1. Flange head screw (5)
Page 7 − 49
18 to 22 ft−lb
(25 to 29 N−m)

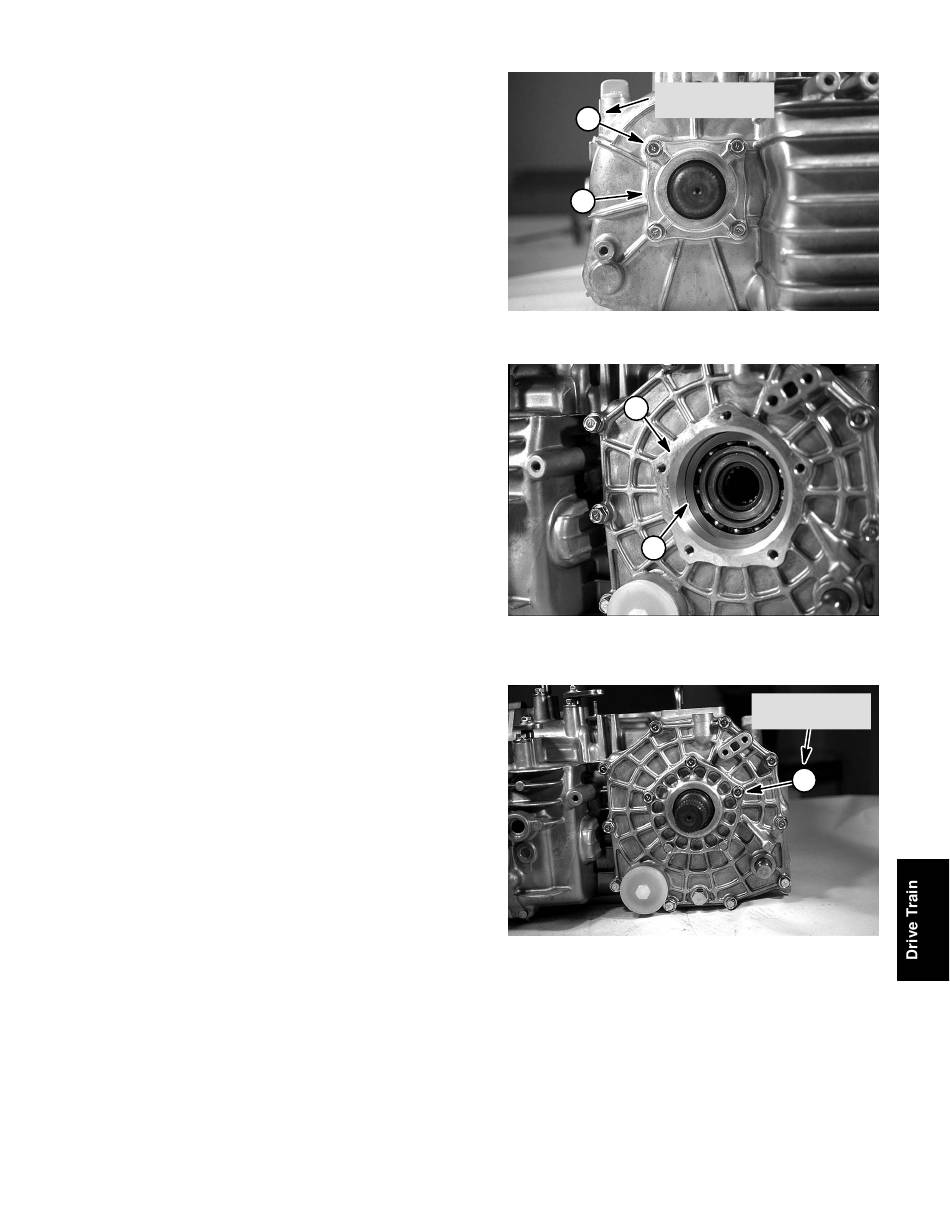

Figure 93
1
2
Figure 94
2. Shim
18 to 22 ft−lb
(25 to 29 N−m)
1
Figure 95
