Front Shock Absorber Service

The front shock absorbers used on the Multi Pro 1750
can be dis assembled to allow replacement of the shock
spring or dampener cartridge. If the shock absorber end
bushings are worn, the dampener cartridge must be re-
placed.
1. Remove the shock absorber from the machine (see
Front Suspension in this chapter).
2. Use shock spring compressor (TOR6015: see Spe-
cial Tools in this chapter) to safely compress the spring.
While the spring is compressed, remove the spring col-
lar and spring from the dampener cartridge (Fig. 19).
3. Slide the adjustment collar from the dampener car-
tridge.
4. Replace desired components as necessary. Assem-
ble shock absorber in reverse order.
5. Tighten shock absorber mounting screws from 40 to
50 ft−lbs (54 to 68 N−m).
Chassis
2
4
3
40 to 50 ft−lb
(54 to 68 N−m)

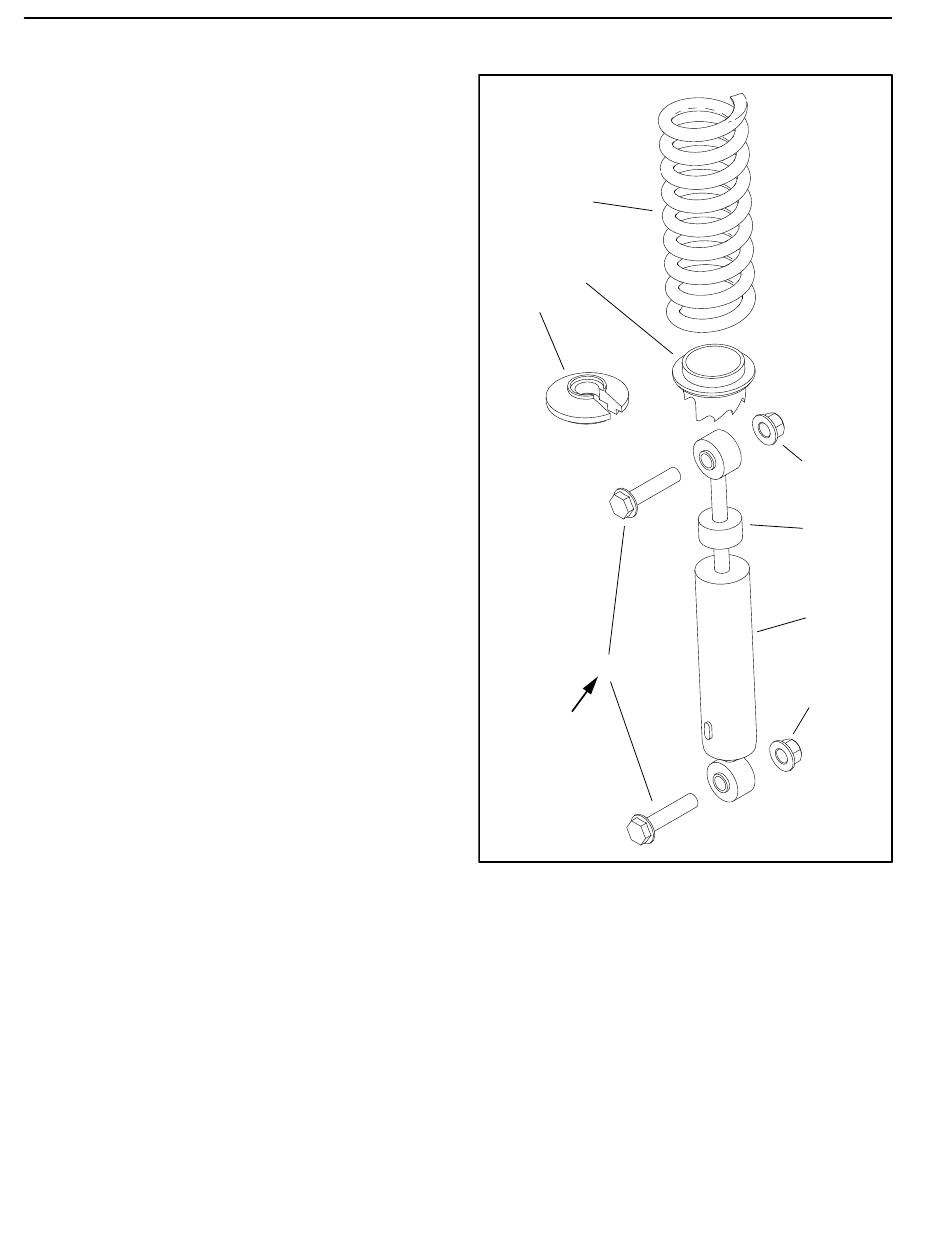

1. Dampener cartridge
2. Spring
3. Collar
4. Adjuster
Page 8 − 28
7
Figure 19
5. Bumper
6. Flange nut
7. Flange head screw
6
5
1
6
Multi Pro 1750
