Front Wheel Hubs - Toro Multi Pro 1750 Service Manual

Front Wheel Hubs

35 to 40 ft−lb
(48 to 54 N−m)
15
14
13
12
1. Lug nut (5 per wheel)
2. Wheel and tire assembly
3. Dust cap
4. Cotter pin
5. Nut retainer
Chassis
11
10
9
7
8

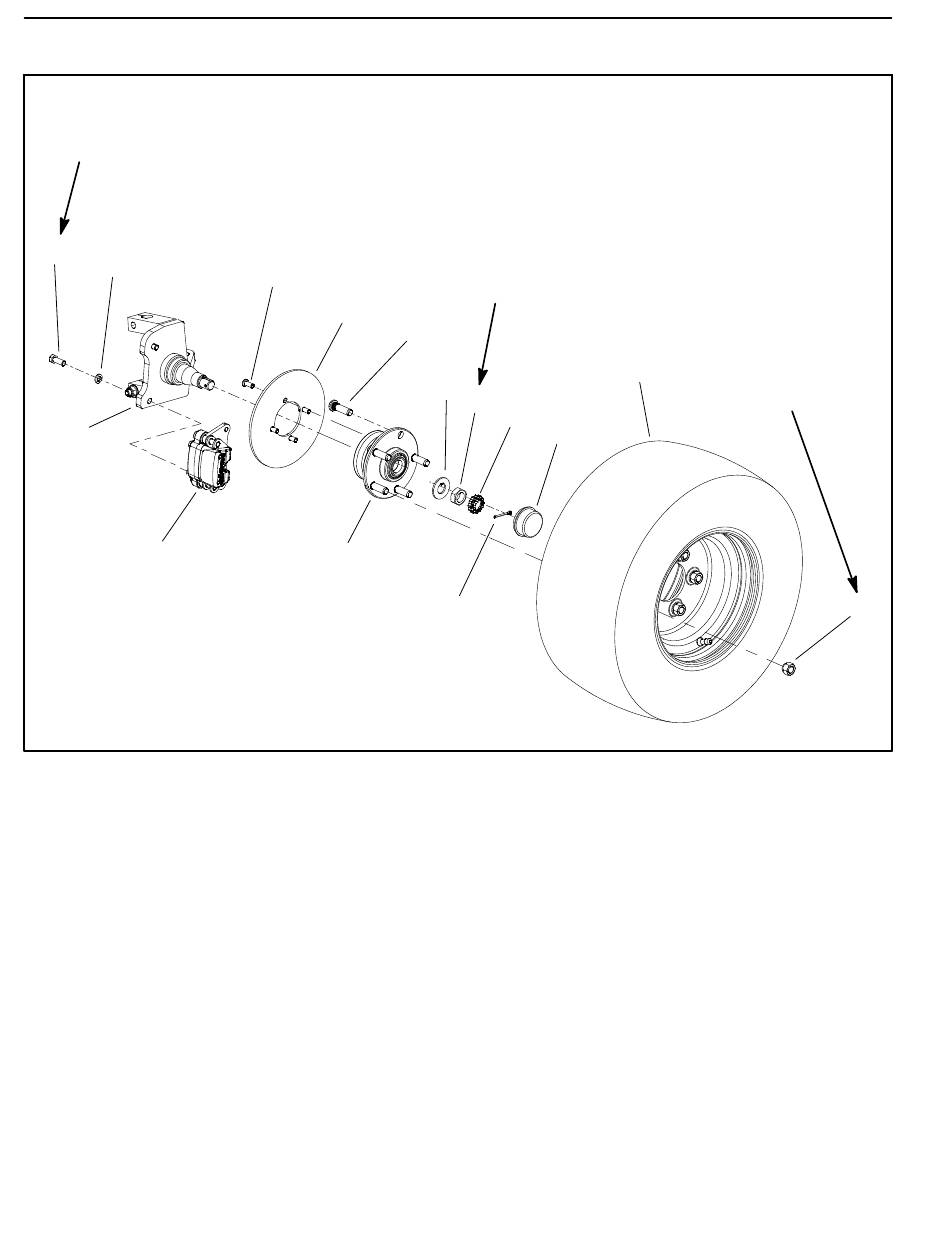

Figure 14
6. Slotted hex nut
7. Tab washer
8. Wheel hub assembly
9. Lug stud (5)
10. Brake rotor
Page 8 − 22
See
tightening
procedure
6
5
3
4
2
75 to 80 ft−lb
(102 to 108 N−m)
11. Socket head screw (4 per rotor)
12. Brake caliper
13. Front spindle (LH shown)
14. Lock washer (2 per caliper)
15. Cap screw (2 per caliper)
Multi Pro 1750
1
