Example Smoke Control System

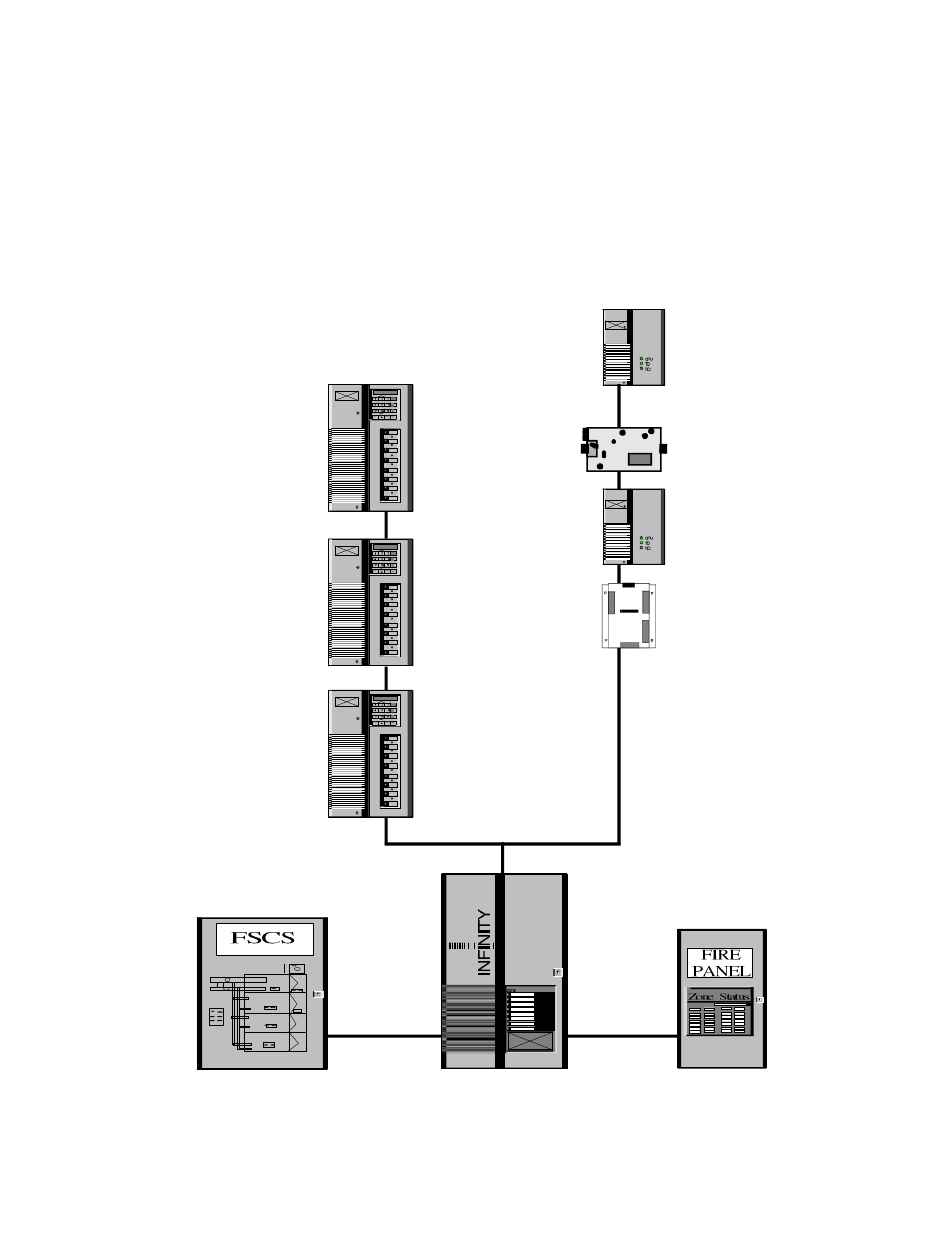

Figure 5-1 shows a block diagram of the smoke control components that
could be used to create a smoke control system for a small, four story
building. This example system will be used as the basis for the programs
in this chapter.
Figure 5-1. Example Smoke Control System
SCX920S
AHU-2
Floors 2-4
SCX920S
Smoke
Dampers
Floors 2-4
SCX920S
AHU-1
Floor 1
RS-232
Control Station
5-2
INFINET
RS-485
RS-232
CX9200
Main Controller
Infinity Smoke Control Guide
Smoke Control Programs
TCX853
AHU-3
Stairwell
TCX861
VAV Terminal
Floor 4
TCX851
VAV Terminal
Floor 3
TCX840
VAV Terminal
Floor 2
Fire Panel
Simplex or EST
