Smoke Control System Overview

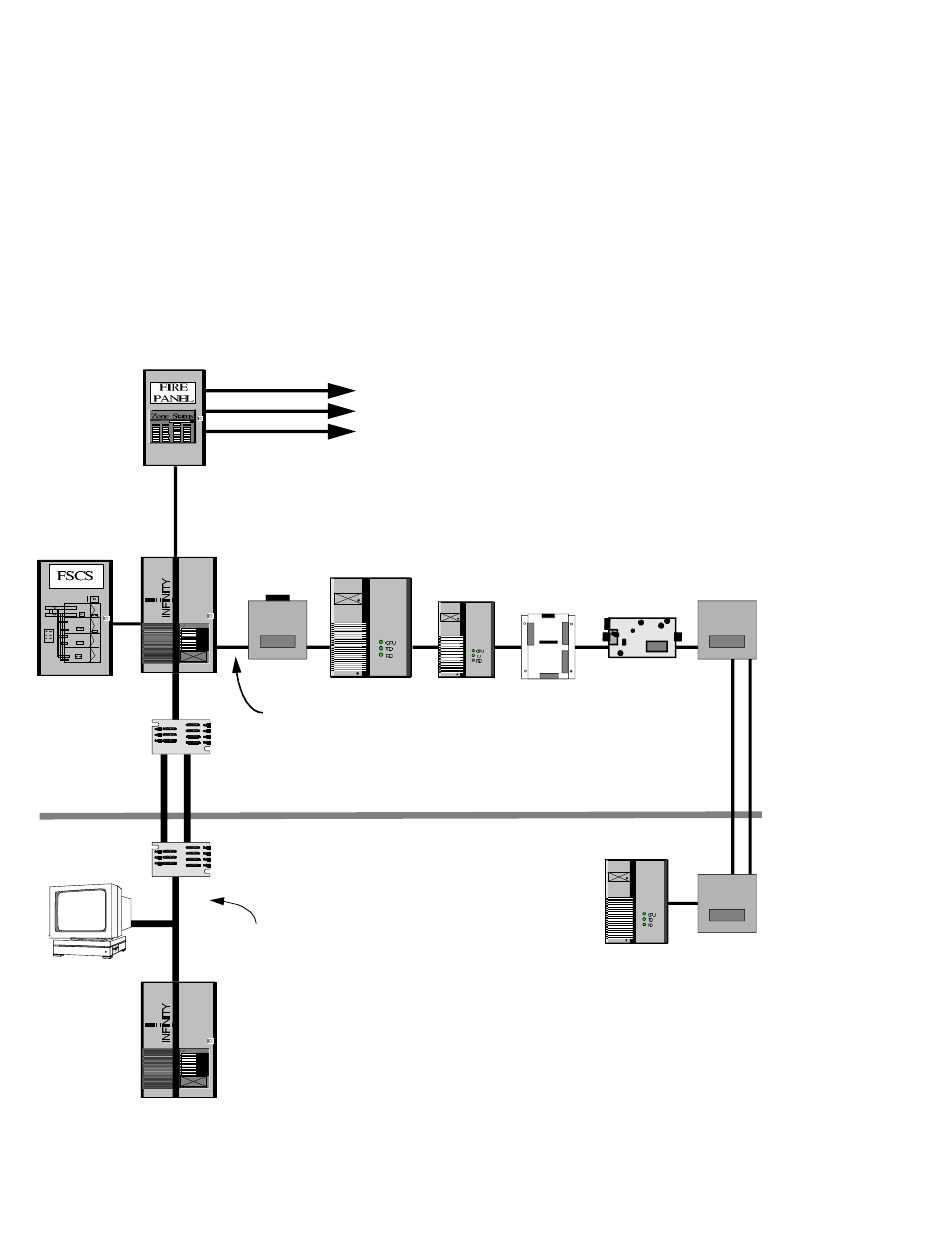

Figure 2-1 shows the components that are used in an Infinity smoke
control system and how they are connected together. The component
descriptions in the remainder of this chapter describe in more detail the
role of each component in the system. Notice that the smoke control
system itself is electrically isolated from the non-smoke control
components.
Figure 2-1. Smoke Control System Overview
Smoke Detectors,
Fire Detectors,
Manual Pull Boxes,
Etc.
CX9200
Infilink SCX920S
200
Infinet Cable
EnergyLink 2500
UL Listed Smoke Control Components
Non-Smoke Control Components
EnergyNet
Cable
2-2
Infinity Smoke Control System Components
TCX 840
TCX 850
series
series
Infinity Smoke Control Guide
TCX 860/5 Infilink
series
210
fiber optic
cable
