Field Wiring Terminals; Ac Power Wiring; Ac Power Terminal Block; Rs-232 Communication Port Wiring - Andover Controls Infinity Manual

Installation and Layout

Field Wiring Terminals

The following are the only field connections that are required when
installing an FSCS. All field wiring must be installed by qualified
personnel and must comply with the National Electric Code, as well as
any state or local regulations.

AC Power Wiring

The AC input voltage is connected to the AC POWER FIELD WIRING
TERMINALS.

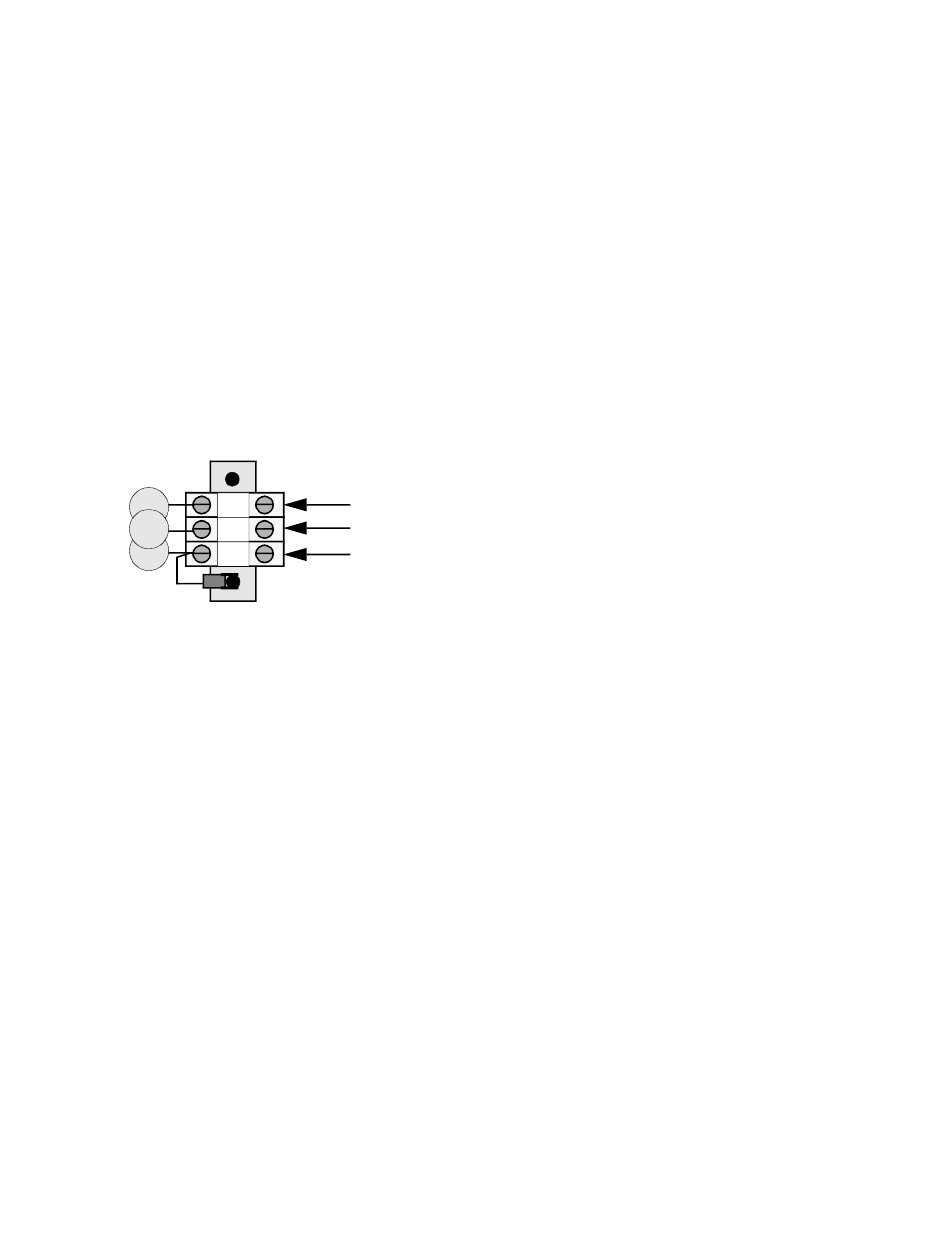

Figure 3-4 shows this terminal block and how it is wired.
Figure 3-4. AC Power Terminal Block

RS-232 Communication Port Wiring

The RS-232 cable from the CX9200 connects to the FSCS at the RS-232
FIELD WIRING TERMINALS. This cable must be less than 20 feet in
length, and must be enclosed in conduit.
Figure 3-5 shows this terminal block and how it is wired to the CX9200.
Andover Controls Corporation
Technical Manuals Online! - http://www.tech-man.com
The HOT Terminal (Black wire)
H
The NEUTRAL Terminal (White wire)
N
G The GROUND Terminal (Green wire)
