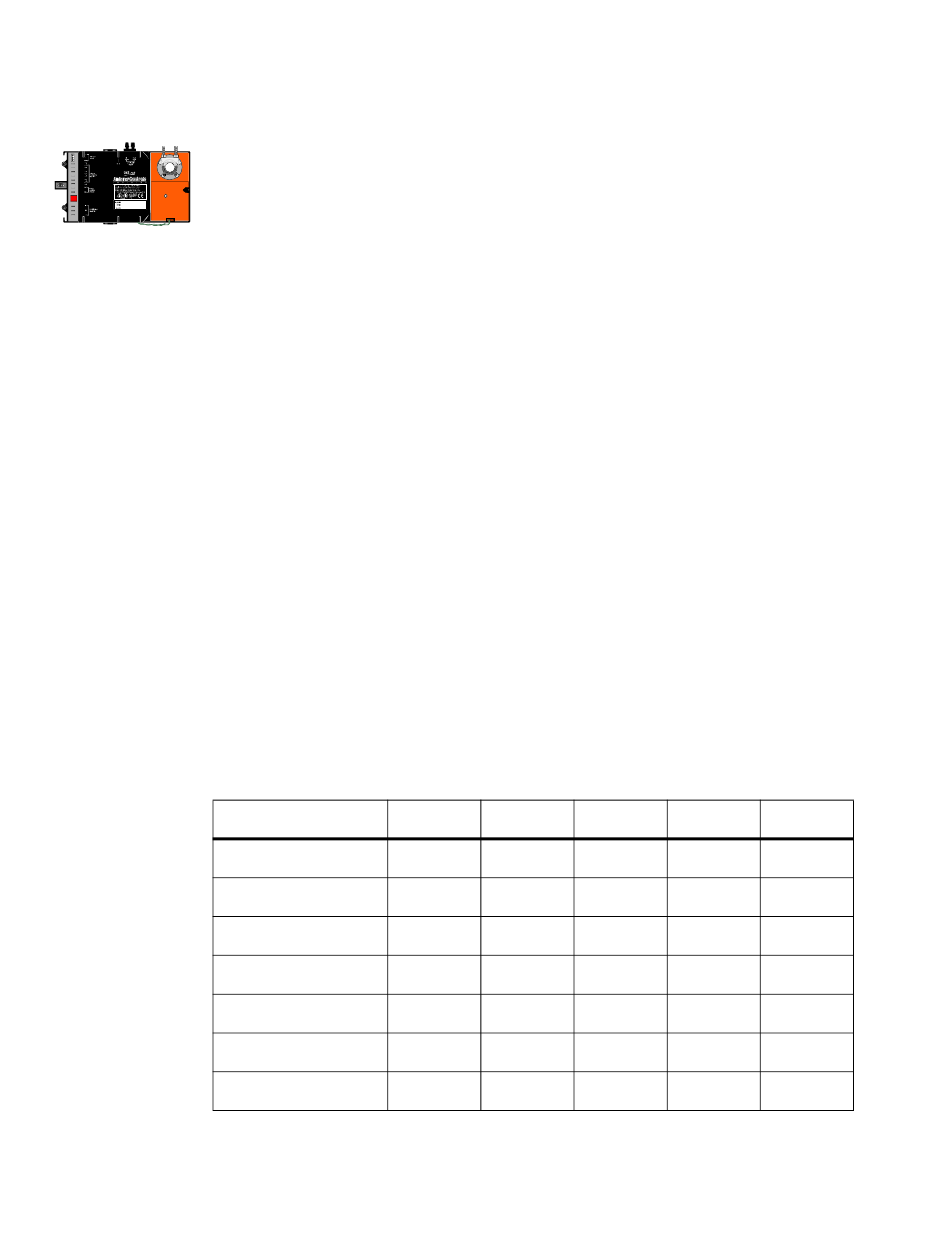

TCX865 Series Controllers

The TCX865 series includes the TCX865, TCX866, TCX867, TCX868 and
TCX869 controllers. Like the TCX860 series, the TCX865 series controllers are
used to control VAV boxes. The TCX865 series communicates with the
CX9200, as well as other Infinet controllers, via the Infinet network. The
TCX865 series can be used in a dedicated or a non-dedicated smoke control
application.
The TCX865 series controllers have a built-in motor and gear assembly for
direct control of a damper.
Features
• Plain English programming language
• Universal inputs that can be configured to measure Voltage, Temperature, or
Digital (contact closure) values
• Analog outputs can be either Voltage or Current
• Air-flow sensors that measure differential pressure from 0 to 1 inches water
gauge
• One RS-485 Infinet port
• Lithium battery backup for memory
• 24 V AC power input
Table 2-1 lists the Input/Output capabilities of each of the controllers in the
TCX865 series.
Table 2-1. TCX865 Series I/O Capabilities
Input/Output Types
Universal Inputs
Form A Outputs
Analog Outputs
Airflow Sensors
Damper Motor
Sensor ports
Real Time Clock
2-8
Infinity Smoke Control System Components
TCX 865 TCX 866
2 2
3 3
0 0
1 1
1 1
0 0
0 1
Infinity Smoke Control Guide
TCX 867 TCX868
2 2
0 3
0 0
1 1
1
0 1
0 1
TOC
TCX 869
2
3
2
1
—
1
1
