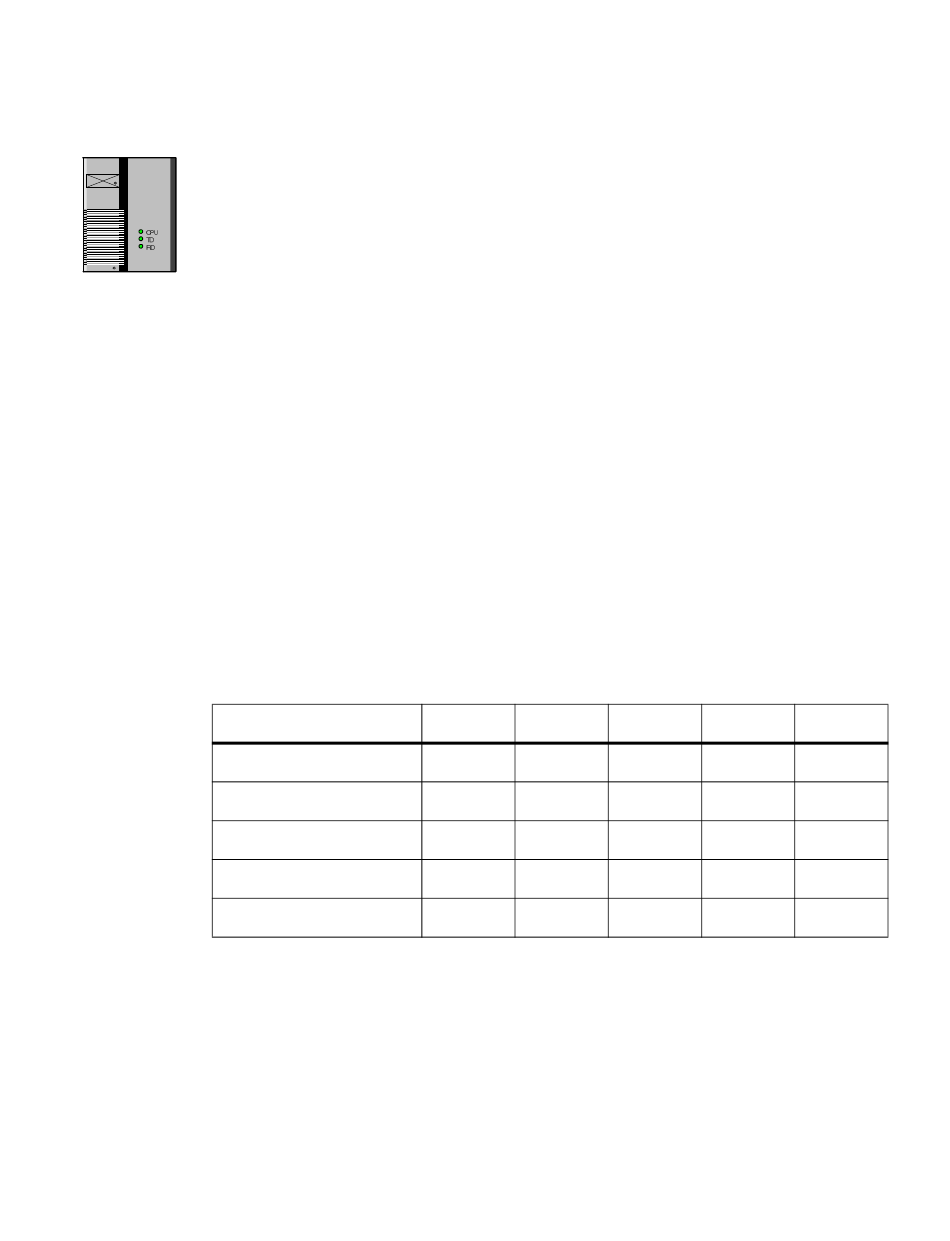

TCX850 Series Controllers

The TCX850 series includes the TCX850, TCX851, TCX852, TCX853,
and TCX855 controllers. The TCX850 series controllers are used to
control small pieces of equipment that require fewer I/O points than an
SCX920S, such as VAV boxes or stairwell fans. The TCX850 series
communicates with the CX9200, as well as other Infinet controllers, via
the Infinet network. The TCX850 series can be used in a dedicated or a
non-dedicated smoke control application.
Features
• Plain English programming language
• Universal inputs that can be configured to measure Voltage, Current,
Temperature, or Digital (contact closure) values
• Air-flow sensors that measure differential pressure
• 1 RS-485 Infinet port
• Lithium battery backup for memory
• 24V AC power input
Table 2-1 lists the Input/Output capabilities of each of the controllers in
the TCX850 series.
Table 2-1. TCX850 series I/O capabilities
Universal Inputs
Form A Outputs
Tri-State Outputs
0 - 1" Air-flow Sensors
0 - 0.2" Air-flow Sensors
2-6
Infinity Smoke Control System Components
TCX850 TCX851
4 4
3 3
1 1
1 0
0 0
Infinity Smoke Control Guide
TCX852 TCX853
2 6
1 3
1 1
1 2
0 0
TOC
TCX855
4
3
1
0
1
