Molecular Devices ImageXpress Pico Installation Manual page 57

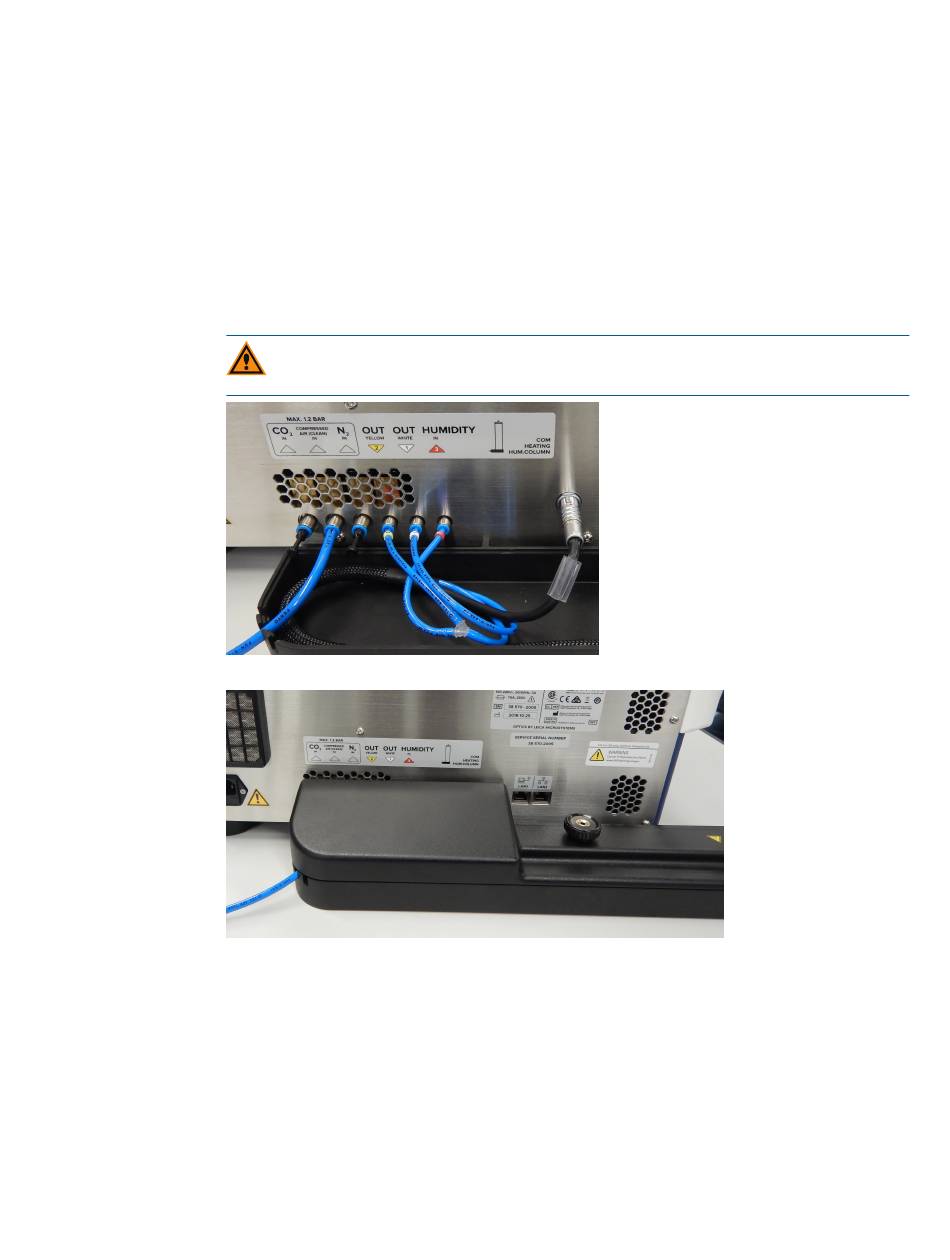

7. Do the following to connect the humidifying column to the instrument:
a. Connect the tubing with the white 1 band to the OUT WHITE 1 port.
b. Connect the tubing with the yellow 2 band to the OUT YELLOW 2 port.
c. Connect the tubing with the red 3 band to the HUMIDITY IN 3 port.
d. Connect the electronics cable to the COM HEATING HUM COLUMN port.
8. Do the following to connect the gas cylinder to the instrument:
a. Connect the tubing from the CO
b. Connect the tubing from the compressed air source to the COMPRESSED AIR
c. If you will be performing hypoxia experiments, connect the tubing from the N
9. Replace the top piece of the environmental control tray and tighten the screw.
5063666 K
(CLEAN) IN port.
to the N IN port.
2
CAUTION! For any port not connected to a gas cylinder, close off the port with one
of the included blind plugs (as shown below).
Chapter 5: Environmental Control System
source to the CO IN port.
2 2
source
2
57
