ImageXpress Pico Automated Cell Imaging System Installation Guide
Items Provided by Molecular Devices
The following hardware components are included with the environmental control system:
Environmental Control Cassette: Holds the labware during acquisition. The cassette is
magnetically sealed to maintain the environment and is compatible with most plate and
dish formats from 6-well to 384-well with a plate bottom clearance of at least 1.3 mm
(0.05 in.) and a maximum height (including the lid) of 23 mm (0.9 in.). Note that the standard
height for plates is 14.35 mm ± 0.25 mm (0.5650 in. ± 0.0098 in).
Environmental Sensors: Provides accurate readings of temperature, humidity, CO
Environmental Control Tray: Attaches to the back of the instrument to hold the humidifying
column and the tubing/wiring.
Humidifying Column: Humidifies the mixed gas. Part of the gas mixture is guided through
the column, which contains a water reservoir. The water inside the column is warmed for
higher humidity uptake.
Humidifying Column Tubing/Wiring: Connects the humidifying column to the instrument.
Gas Supply Tubing: Molecular Devices provides 10 m (32.8 ft) of tubing to connect the
instrument to the regulator. If this is not sufficient, you must provide an appropriate length
of 4 mm I.D. / 6 mm O.D. polyurethane tubing.
Push-to-Connect Fittings: Attaches to the gas supply regulator or lab gas line to enable
easy connections to the instrument.
Blind Plugs: Closes off the CO
Humidifying Column Stoppers: Seals the access port on the humidifying column.
Plate Skirt Height Adapter: Raises the plate inside the environmental control cassette.
52

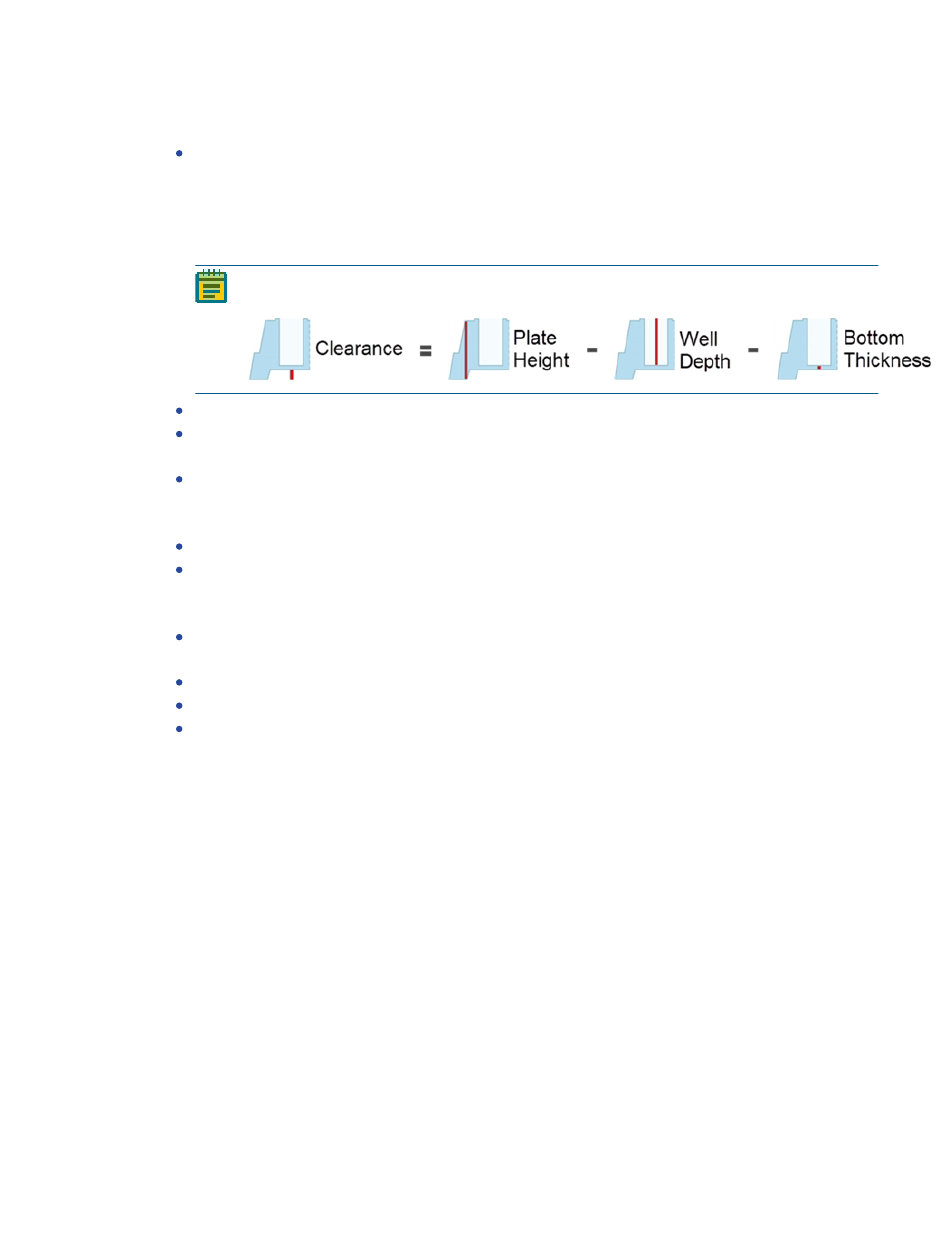

Note: Plate bottom clearance is defined by subtracting well depth and bottom
thickness from plate height, as follows:
2
port, the N port, or both ports when not in use.
2
, and O .
2 2
