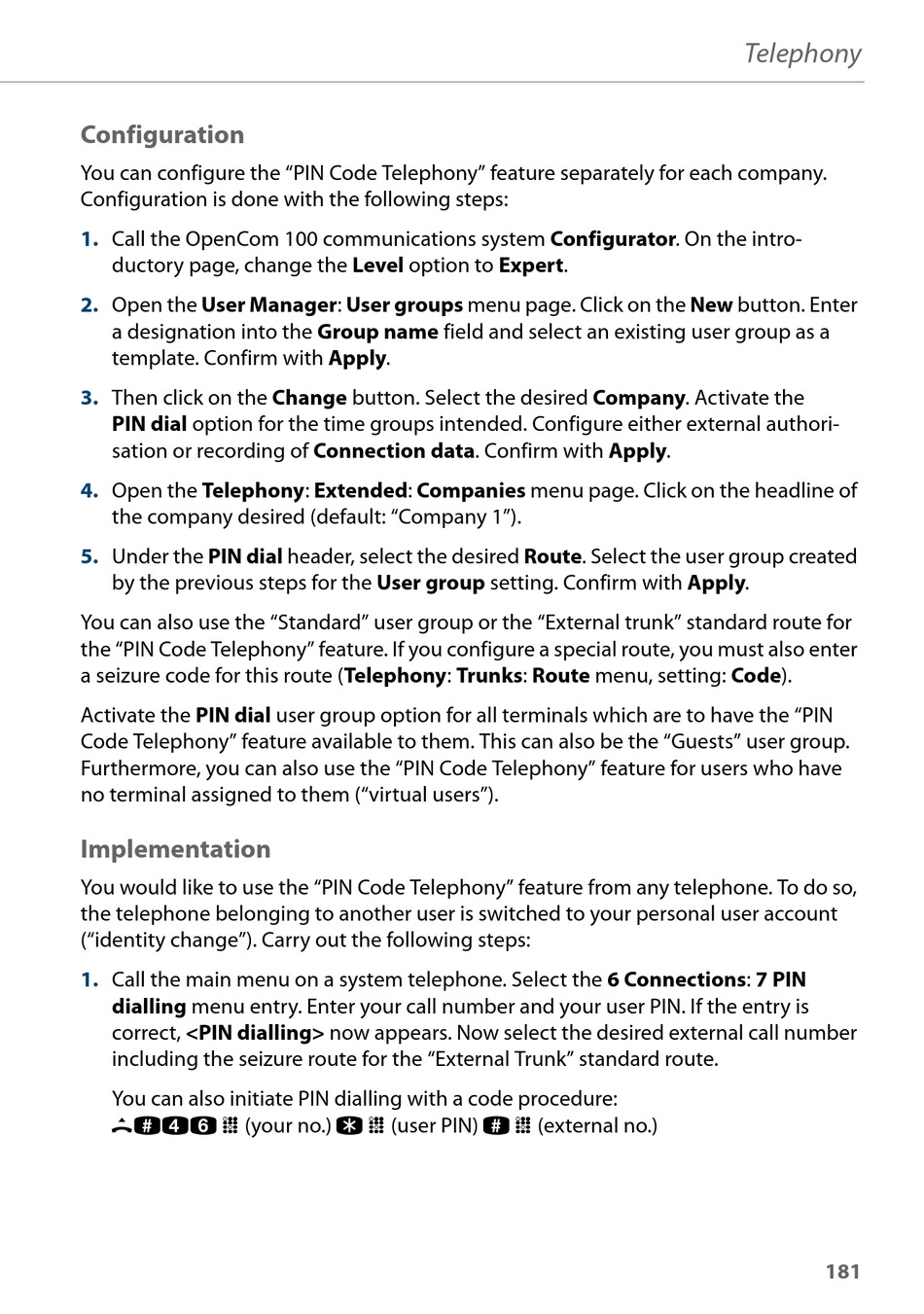

Configuration; Implementation - Aastra OpenCom 100 Series Mounting And Commissioning User Manual

Configuration

You can configure the "PIN Code Telephony" feature separately for each company.
Configuration is done with the following steps:
1. Call the OpenCom 100 communications system Configurator. On the intro-
ductory page, change the Level option to Expert.
2. Open the User Manager: User groups menu page. Click on the New button. Enter
a designation into the Group name field and select an existing user group as a
template. Confirm with Apply.
3. Then click on the Change button. Select the desired Company. Activate the
PIN dial option for the time groups intended. Configure either external authori-
sation or recording of Connection data. Confirm with Apply.
4. Open the Telephony: Extended: Companies menu page. Click on the headline of
the company desired (default: "Company 1").
5. Under the PIN dial header, select the desired Route. Select the user group created
by the previous steps for the User group setting. Confirm with Apply.
You can also use the "Standard" user group or the "External trunk" standard route for
the "PIN Code Telephony" feature. If you configure a special route, you must also enter
a seizure code for this route (Telephony: Trunks: Route menu, setting: Code).
Activate the PIN dial user group option for all terminals which are to have the "PIN
Code Telephony" feature available to them. This can also be the "Guests" user group.
Furthermore, you can also use the "PIN Code Telephony" feature for users who have
no terminal assigned to them ("virtual users").

Implementation

You would like to use the "PIN Code Telephony" feature from any telephone. To do so,
the telephone belonging to another user is switched to your personal user account
("identity change"). Carry out the following steps:
1. Call the main menu on a system telephone. Select the 6 Connections: 7 PIN
dialling menu entry. Enter your call number and your user PIN. If the entry is
correct, <PIN dialling> now appears. Now select the desired external call number
including the seizure route for the "External Trunk" standard route.
You can also initiate PIN dialling with a code procedure:
H#46 Z
(your no.)
* Z # Z
(user PIN) (external no.)
Telephony
181
