4 – INSTALLATION
4.1. TS2000 INSTALLATION CONSIDERATIONS
There are some general considerations to take into account when installing the TS2000
printer.
A wrong installation may cause many issues like paper jam, difficult maintenance of the printer,
difficulty in changing the paper roll, etc. Moreover, a correct installation can prevent the printer from
being damaged by external agents, such as weather or vandalism.
This printer is designed to be installed vertically or horizontally in a case, closet, or another kind of
appropriate chassis.
The basic points that a correct installation must follow are:
•
Allow enough room and accessibility to reach the maintenance procedure points in case it is
needed. Take notice all user accessible parts in the printer.
•
Smooth exit of the ticket. Prevent problems with static electricity due to the nature of the
used materials. Be sure to make a good earth connection.
Platen block
Platen release lever
Main connector

4.2. MOUNTING THE PRINTER

The TS2000 printer has 2 tabs so that the user can fix it on a chassis with screws or rivets.

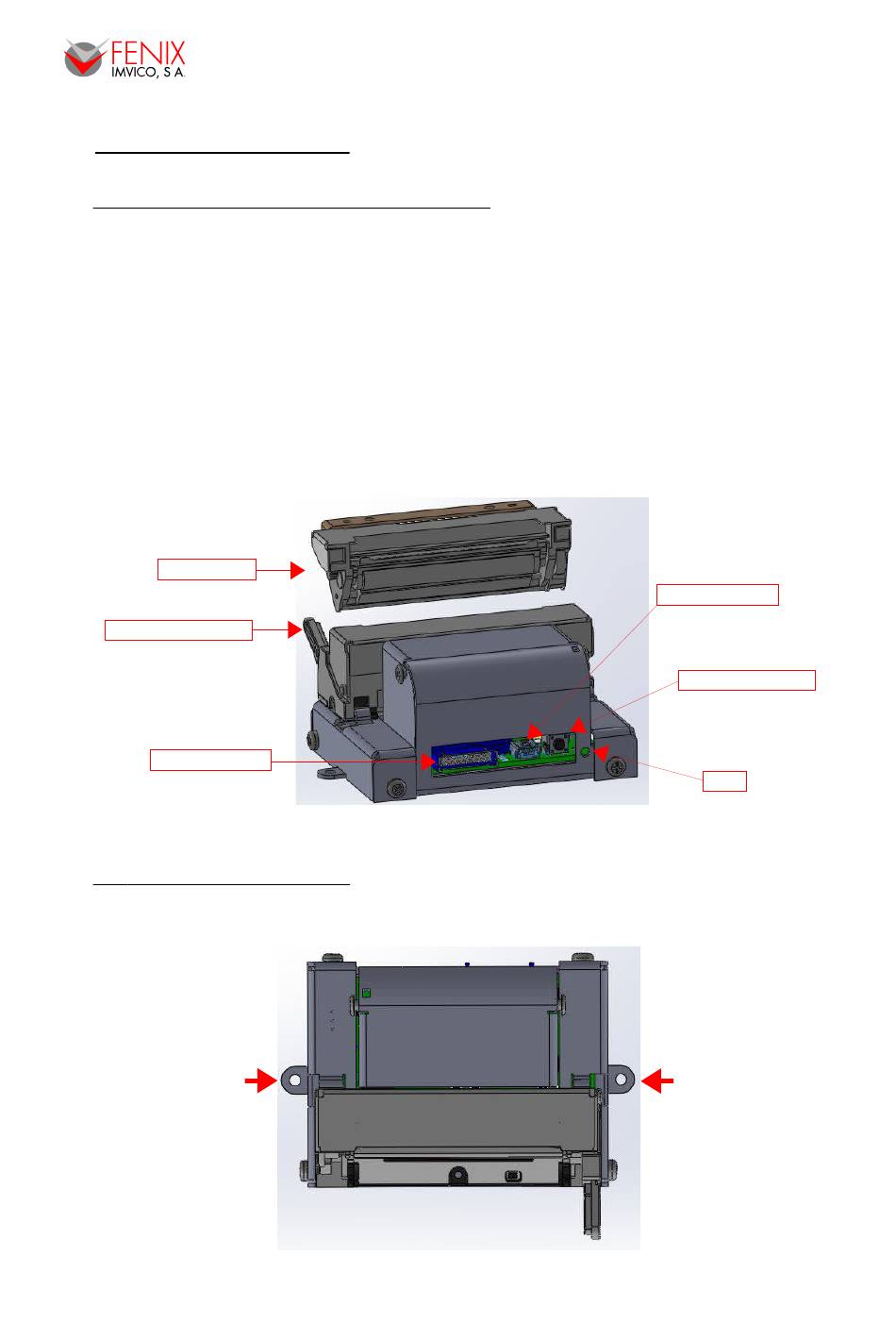

Fig.4.1.TS2000 accessibility .
Fig.4.2. TS2000 Fixing holes.
TS2000 PRINTERS OPERATION MANUAL
USB connector
Paper feed button
LED
9/58
