*3 : The value when the number of simultaneously activated dots is 288 dots.
*4 : Printer current consumption is different according to motor controlled current. When motor controlled current is 0.26A/phase,
the maximum current consumption is 0.52A.
*5 : When using TL69KS-LH in CAPD347, motor controlled current is 0.375A/phase.
The specifications in the above case are described as below:
・Motor current consumption is 0.75A max.
・Cutting frequency is 1cut/2.7s max.

3.8. MECHANICAL SPECIFICATIONS

Overall dimensions (W x D x H)
Weight (without paper)
3.9. RELIABILITY AND ENVIRONMENTAL CONDITIONS
Operating temperature
Storage temperature
Life span (at 25ºC )
Activation pulse resistance
Abrasion resistance
Autocutter service life
(20ºC – 45ºC, 10% -65% RH)
(1)
The service life of the print head and autocutter may become shorter if paper other than specified is used.
NOTES:
1. Life end is defined as the point at which two or more adjacent heat elements are
damaged (when two or more adjacent dots are omitted), except when damaged by
foreign objects or external causes.
2. The print head life is measured using the specified paper.
3. The ambient temperature should be kept close to room temperature.
Stop printing when the print head temperature detected by the head thermistor reaches 75°C.
Resume printing when the temperature drops down to 70°C for lower.
See APPENDIX – MECHANICAL DIMENSIONS
TS2000-60: 420g approx.
TS2000-80: 550g approx.
(1)
-10 to 50ºC
(1)
-20 to 60ºC (without paper, in a dry place)
100 millions pulses or more (print ratio=12'5%).
100 Km or more
1.000.000 cuts or more

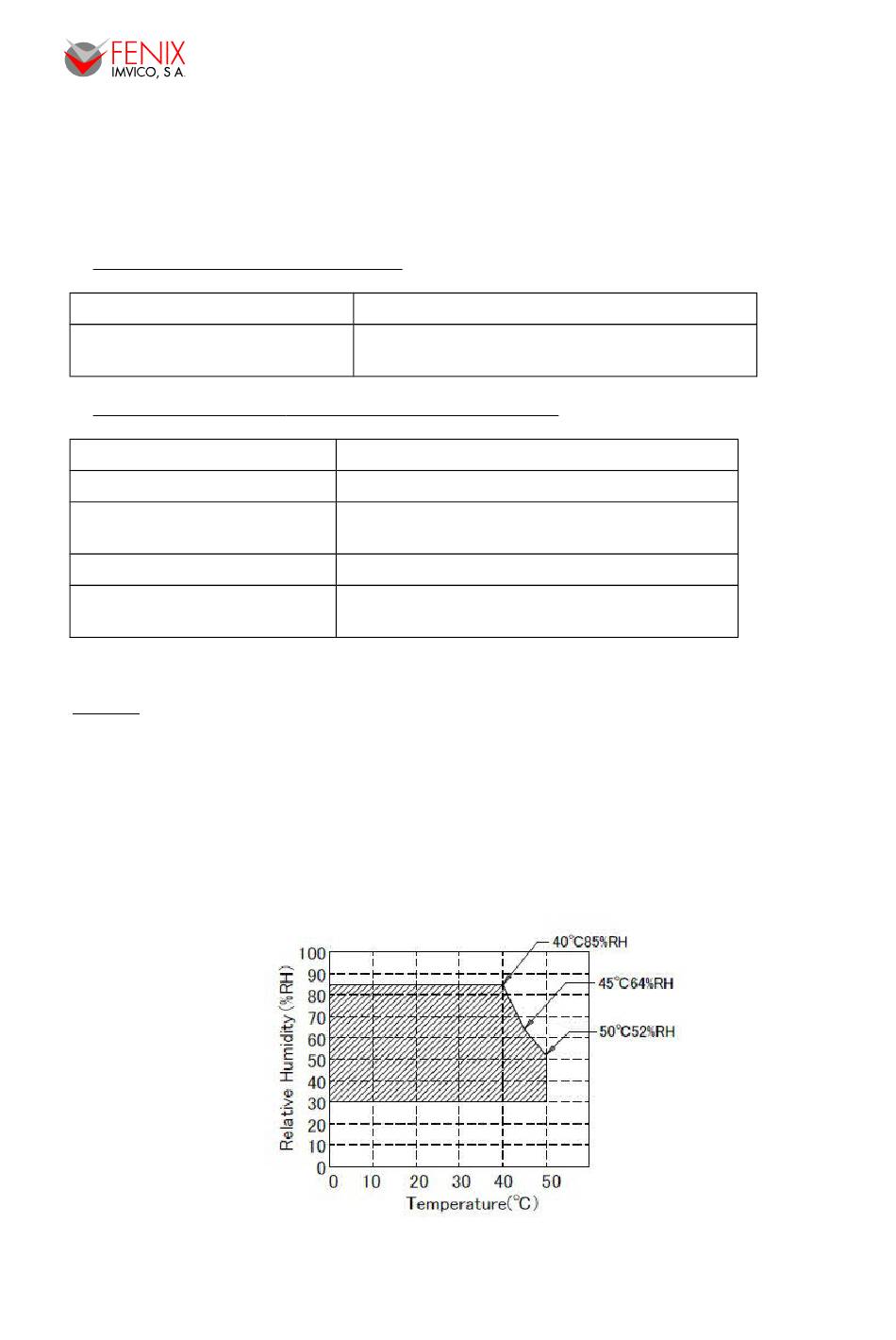

Fig.3.1. Operating temperature and humidity range.
TS2000 PRINTERS OPERATION MANUAL
8/58
