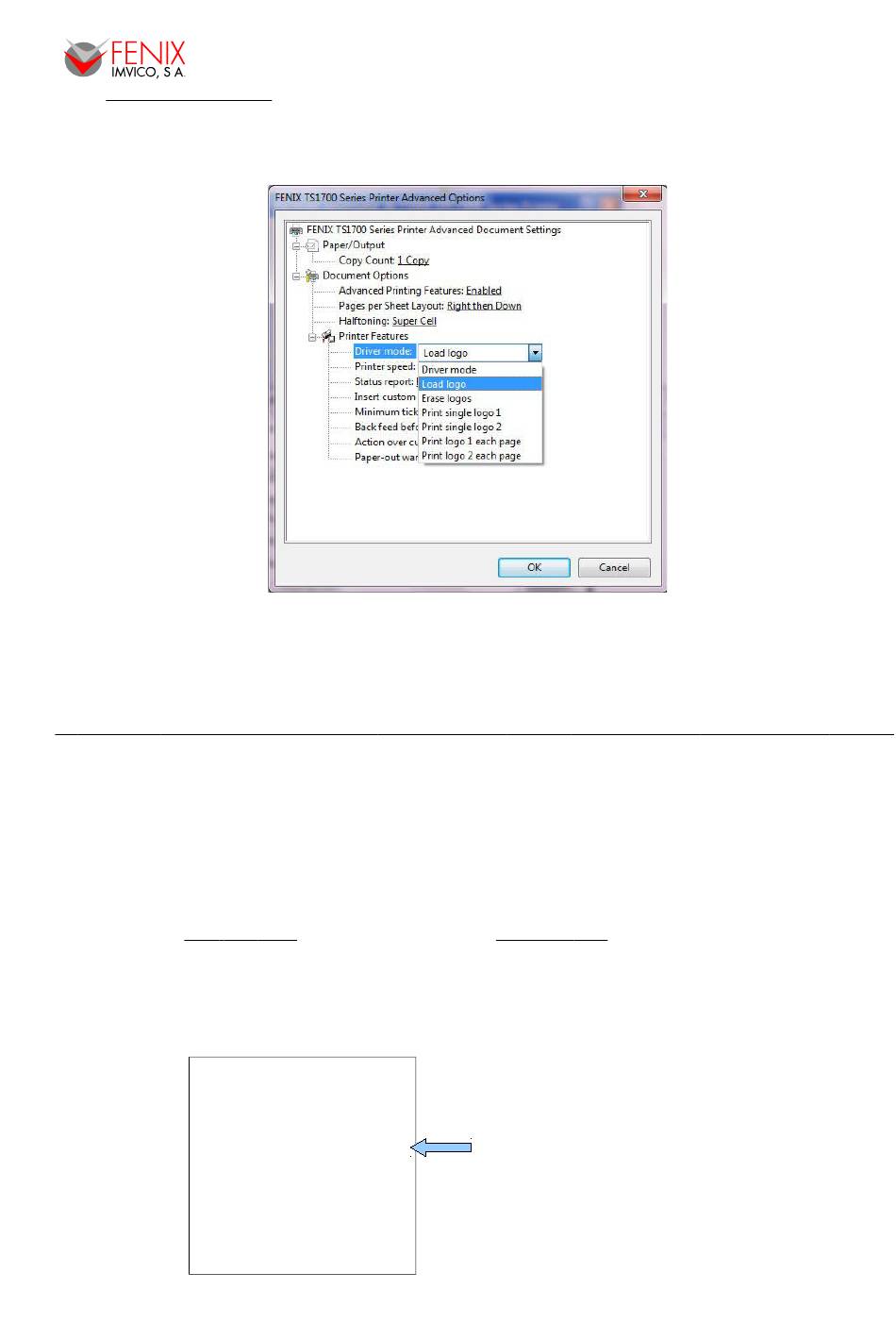

IMPORTANT NOTE: FENIX provides a powerful utility to the Windows driver, that makes logo
load extremely easy and useful. Taking advantage of high features in drawing and image handle
software like Word, Paint, Photoshop, etc. the user can load a logo, selecting in "Device operation"
(TS2000 Windows driver) the correct option.
We suggest adjusting the logo selecting "Driver mode" option until get the size, the layout and the
arrangement desired. Afterwards, the user just have to reprint with the option "Load Logo 1" selected,
and the logo will be stored same way that last printing.
FS DC2 ESC
[Name] Serial number transmission
[Format] ASCII
Hex
Decimal
[Description] Transmits the interface exclusive serial number. This number consists of 12
hexadecimal digits (6 bytes). Transmission order is from least to most significant byte.
Example: Serial number = 12D4AC78F38E
First byte sent ........................................Last byte sent
8E ................. F3 78 AC D4 .............12
[Notes] The interface exclusive serial number can be used to assure absolute traceability
●
because no two parts are alike.
The serial number can also be verified by printing the self-test:
●
* RECORDS *
Serial num.
On/Off times:
Meters:
Cuts:
Time ON(H:M):
FS DC2 ESC
1C 12 1B
28 18 27
0FE057057142
100
100
100
0:10
