APPENDIX C – INTERNAL CHARACTER TABLES . LOADING
EXTERNAL CHARACTER TABLES.

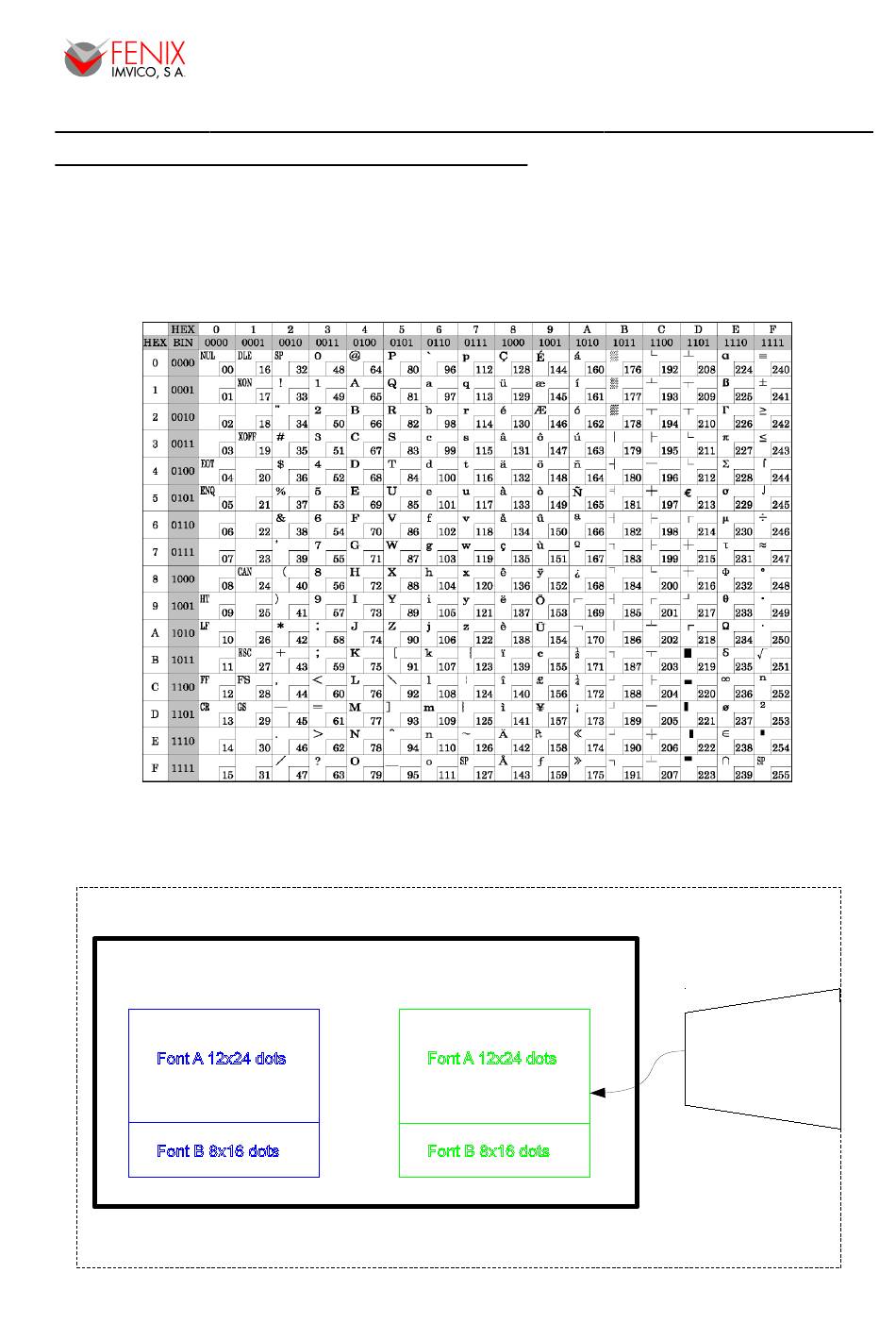

FENIX printers have by default the PC437 table in 2 different formats:
PC437: USA, Standard Europe (International Character Set: USA).
In addition, they have provided an internal flash memory area to load 2 other external user tables (one
per format), through the communication interface of the printer (serial / USB). The internal memory
structure is:
Internal
default table
PC437
a) Table A : format 12 x 24 dots
b) Table B : format 8 x 16 dots
External loaded
user tables
Internal Flash memory
TS2000 PRINTERS OPERATION MANUAL
Printer
comunication
( Serial/USB)
Printer
