4.7. DIGITAL OUTPUT

The TS2000 has an optional digital output which can be used for different purposes such a blink
and external warning light when a ticket has not been picked up or the printer is running out of paper,
activate a beeper when previous or other events are triggered, etc.
The digital output can be triggered either by any of the error events or can be activated
instantaneously using the same command: DC3 p m ton toff .
The digital output provides a signal that can blink or stay stable for up to 16 cycles. In case that a
blinking output is preferred, the time the output stays on and off are also programmable.
The transistor's output capability is: Vco = 45V , I
maximum ratings could result in a permanent damage of the device.

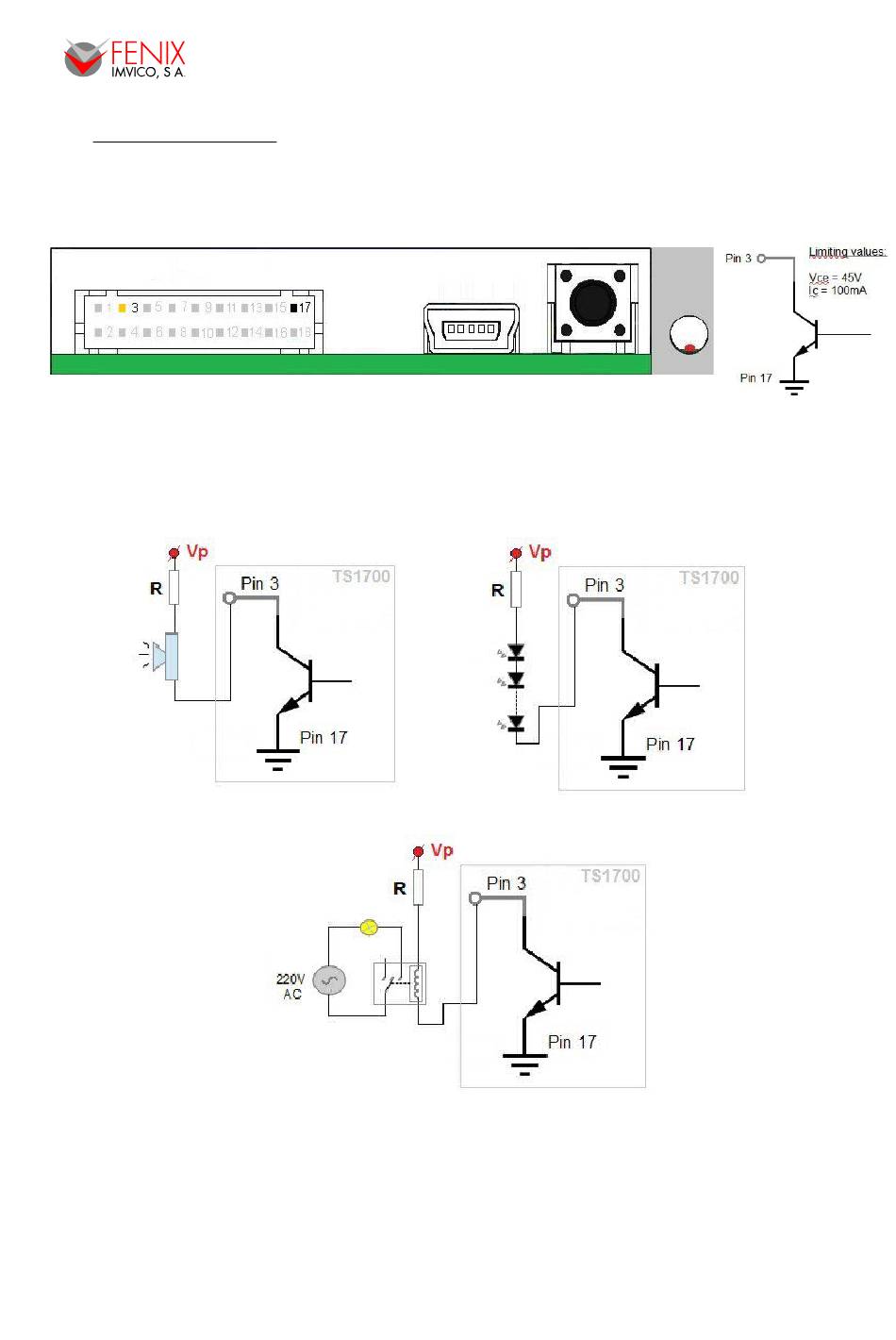

Fig.4.12. Digital output pin-out.
Fig.4.13. Digital output examples.
TS2000 PRINTERS OPERATION MANUAL
= 100mA. Values beyond this absolute
