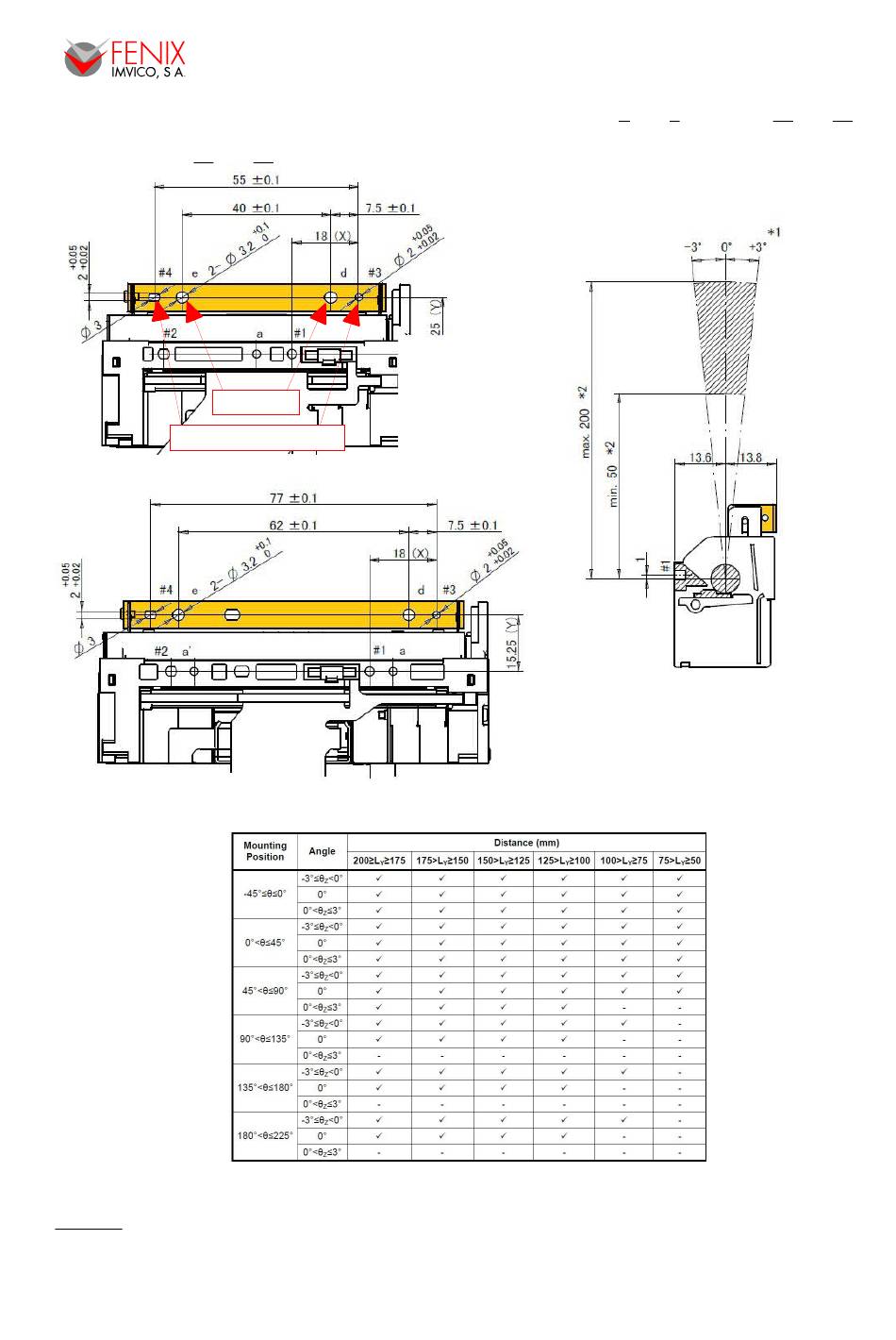

The following figure shows the mounting holes of the platen block d and e. The holes #3 and #4
must be used for positioning the platen block. It is recommended to design the bosses for the
positioning holes #3 and #4 on the outer case.
Screws
Positioning holes
*1 : The area of the possible mounting angle (θ
*2 : The area of the possible mounting distance (L
4.4. Dimensions for positioning and securing the platen block.
NOTE:
For full design in direct output, see more details in the SEIKO manual (CAPD247D/E,
CAPD347D/E autocutter integrated thermal printer mechanism technical reference).
CAPD247
CAPD347
) is different according to the mounting position and distance.
Z
) is different according to the mounting position and angle.
Y
