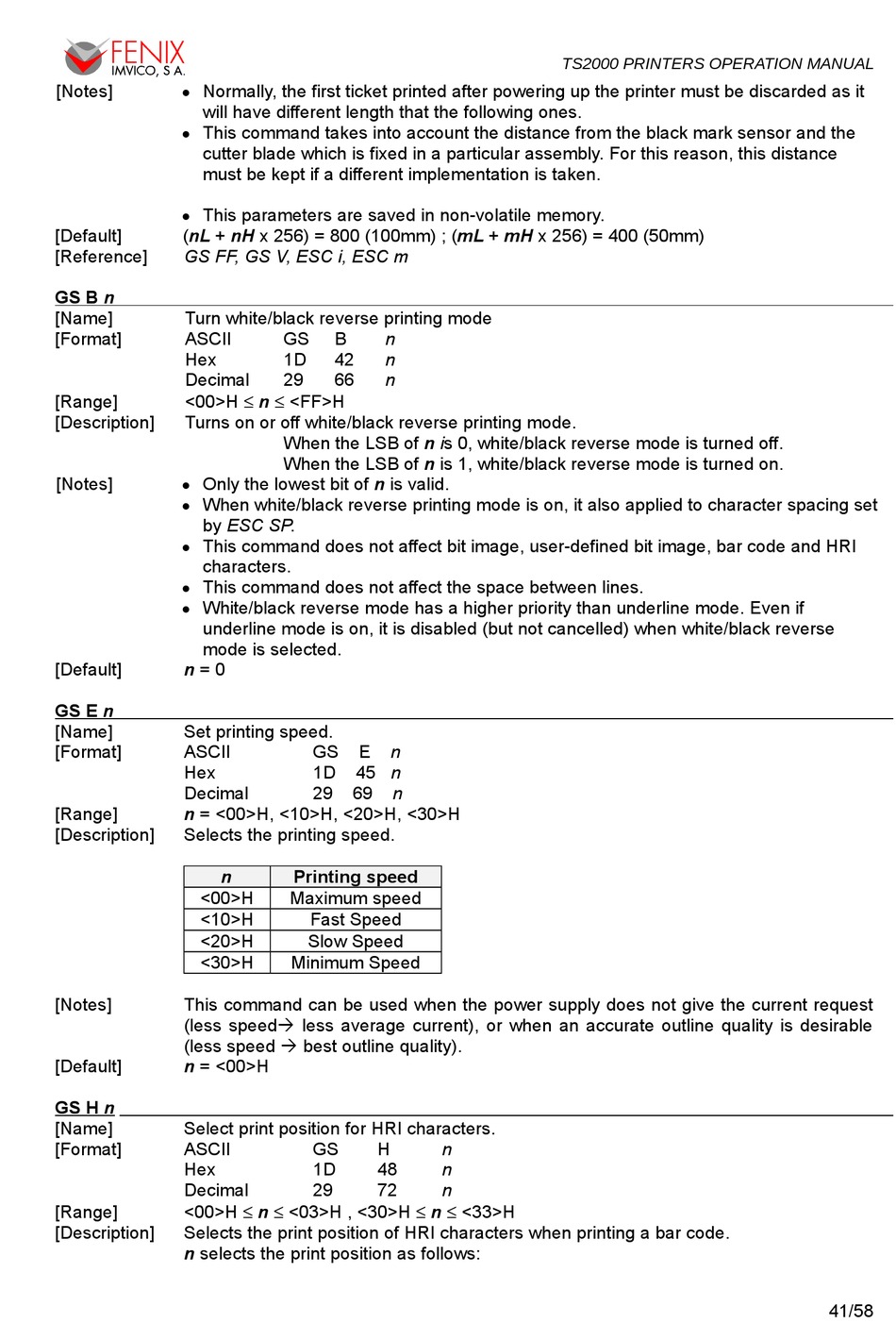

Fenix TS2000 Series Operation Manual page 41

[Notes] Normally, the first ticket printed after powering up the printer must be discarded as it
●
will have different length that the following ones.
This command takes into account the distance from the black mark sensor and the
●
cutter blade which is fixed in a particular assembly. For this reason, this distance
must be kept if a different implementation is taken.
This parameters are saved in non-volatile memory.
●
[Default] (nL + nH x 256) = 800 (100mm) ; (mL + mH x 256) = 400 (50mm)
[Reference] GS FF, GS V, ESC i, ESC m
GS B n
[Name] Turn white/black reverse printing mode
[Format] ASCII
Hex
Decimal
<00>H ≤ n ≤ <FF>H
[Range]
[Description] Turns on or off white/black reverse printing mode.
[Notes] Only the lowest bit of n is valid.
●
When white/black reverse printing mode is on, it also applied to character spacing set
●
by ESC SP.
This command does not affect bit image, user-defined bit image, bar code and HRI
●
characters.
This command does not affect the space between lines.
●
White/black reverse mode has a higher priority than underline mode. Even if
●
underline mode is on, it is disabled (but not cancelled) when white/black reverse
mode is selected.
[Default] n = 0
GS E n
[Name] Set printing speed.
[Format] ASCII
Hex
Decimal
[Range] n = <00>H, <10>H, <20>H, <30>H
[Description] Selects the printing speed.
n
<00>H
<10>H
<20>H
<30>H
[Notes] This command can be used when the power supply does not give the current request
(less speed less average current), or when an accurate outline quality is desirable
(less speed  best outline quality).
[Default] n = <00>H
GS H n
[Name] Select print position for HRI characters.
[Format] ASCII
Hex
Decimal
<00>H ≤ n ≤ <03>H , <30>H ≤ n ≤ <33>H
[Range]
[Description] Selects the print position of HRI characters when printing a bar code.
n selects the print position as follows:
GS B n
1D 42 n
29 66 n
When the LSB of n is 0, white/black reverse mode is turned off.
When the LSB of n is 1, white/black reverse mode is turned on.
GS E n
1D 45 n
29 69 n
Printing speed
Maximum speed
Fast Speed
Slow Speed
Minimum Speed
GS H n
1D 48 n
29 72 n
TS2000 PRINTERS OPERATION MANUAL
41/58
