2 – INSTALLATION

2.1- INTRODUCTION

The SM2000 printer should be installed horizontally on a rigid surface, avoiding locations where high
temperatures or vibration risks exist. Its location must allow the final user an easy access to all the
handling elements of the printer for their use and maintenance.
Cover
open
button

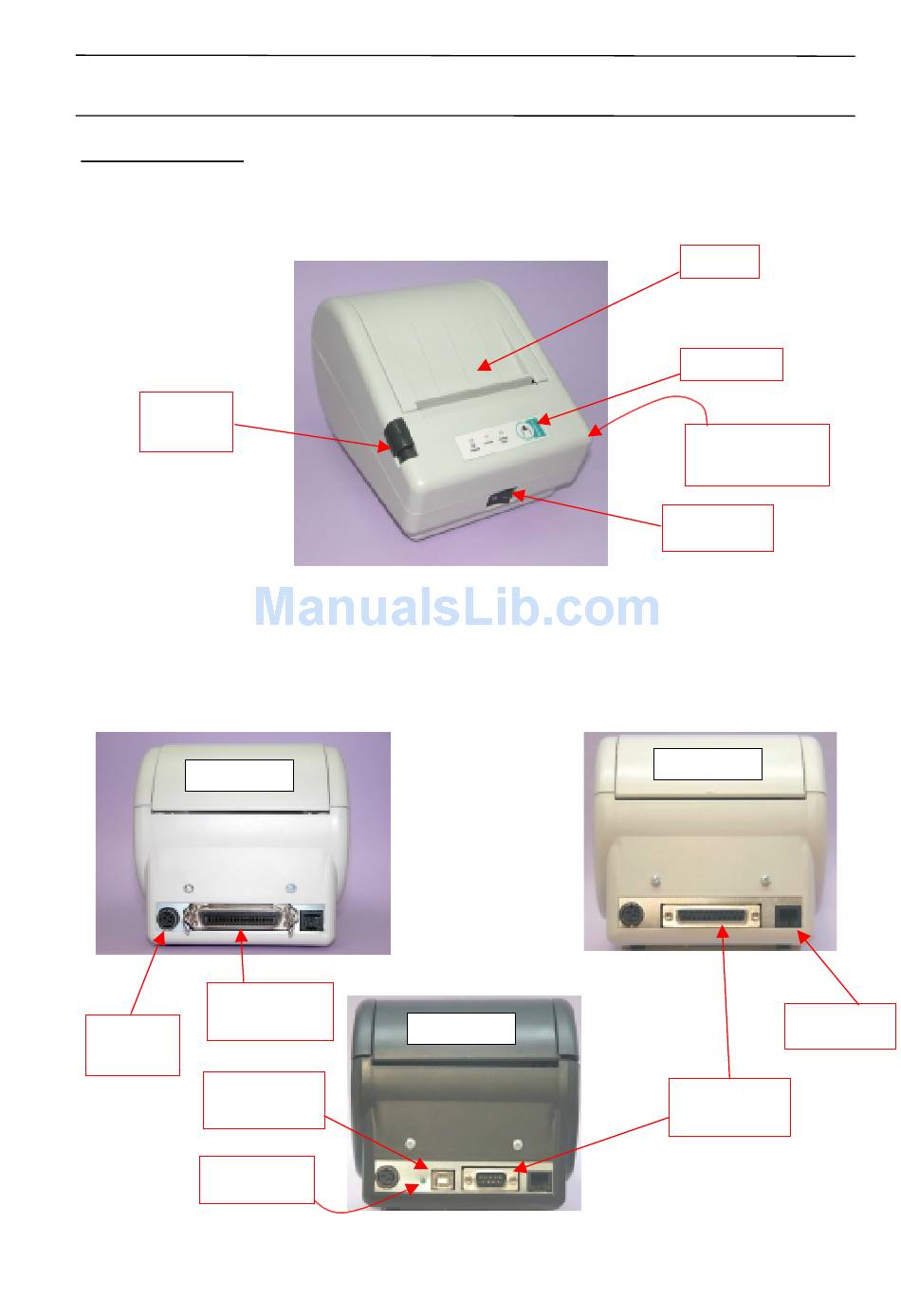

Fig. 2.1- Maintenance and use elements of the SM2000 printer

The SM2000 connectors are located in the rear part of the printer. All models include a power supply
connector and a coins drawer connector. Depending on the communications model, the printer is
provided with a serial interface SUB-D25 connector (SM2000-S), a parallel interface CENTRONICS
connector (SM2000-P) or an USB interface connector plus a serial SUB-D9 connector (SM2000-U).
SM2000-P
CENTRONICS
communication
connector
Power
supply
connector
USB
communication
connector
Goodlink led
indicator
SM2000-U

Fig. 2.2- Connectors location

SM2000 OPERATION MANUAL
Cover
Front panel
Cutter unlocking
screw (on the side)
Power supply
switch
SM2000-S
Serial RS232
communication
connector
11/65
Coins drawer
connector
