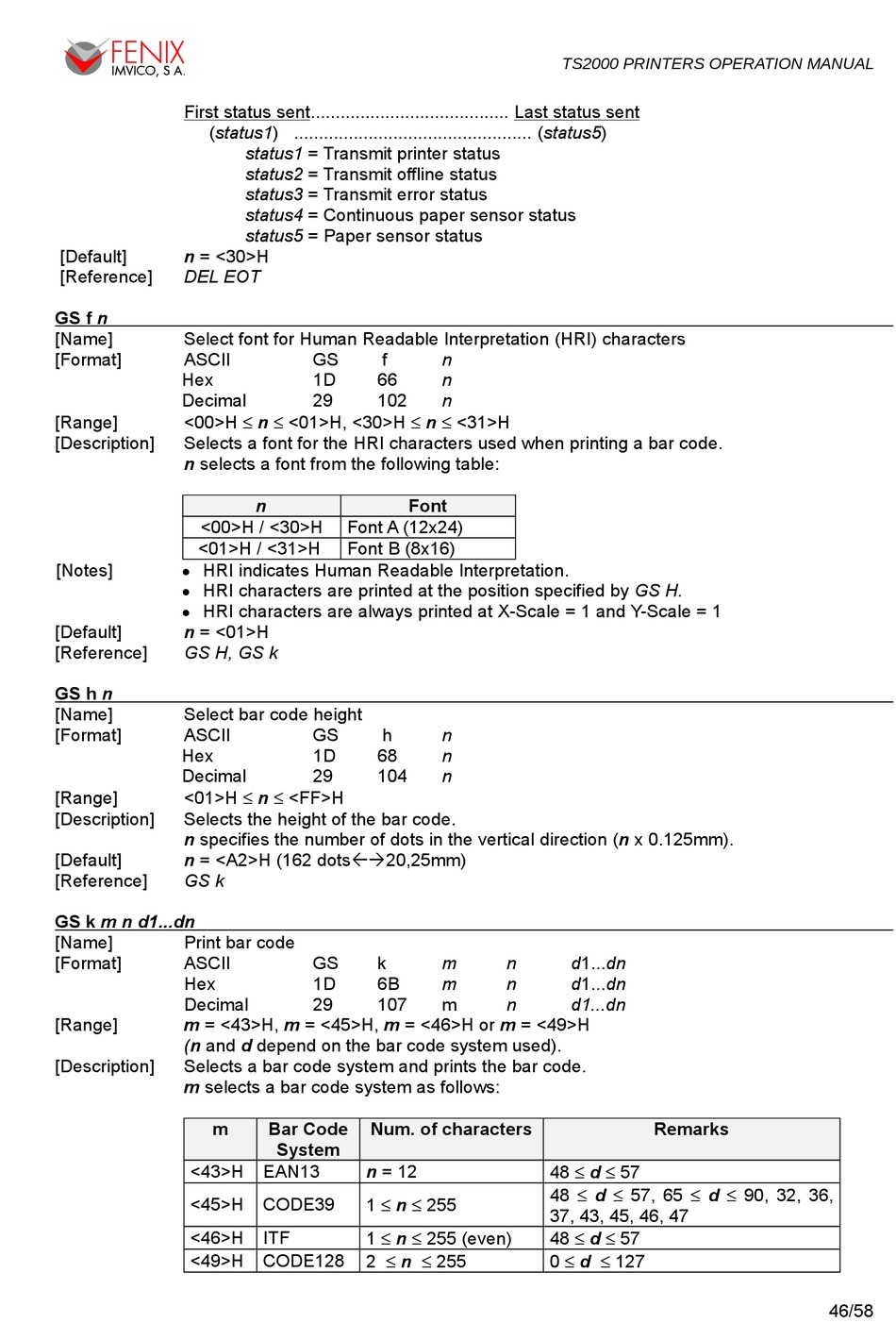

Fenix TS2000 Series Operation Manual page 46

First status sent ........................................ Last status sent
(status1) ................................................ (status5)
[Default] n = <30>H
[Reference] DEL EOT
GS f n
[Name] Select font for Human Readable Interpretation (HRI) characters
[Format] ASCII
Hex
Decimal
<00>H ≤ n ≤ <01>H, <30>H ≤ n ≤ <31>H
[Range]
[Description] Selects a font for the HRI characters used when printing a bar code.
n selects a font from the following table:
<00>H / <30>H
<01>H / <31>H
[Notes] HRI indicates Human Readable Interpretation.
●
HRI characters are printed at the position specified by GS H.
●
HRI characters are always printed at X-Scale = 1 and Y-Scale = 1
●
[Default] n = <01>H
[Reference] GS H, GS k
GS h n
[Name] Select bar code height
[Format] ASCII
Hex
Decimal
<01>H ≤ n ≤ <FF>H
[Range]
[Description] Selects the height of the bar code.
n specifies the number of dots in the vertical direction (n x 0.125mm).
[Default] n = <A2>H (162 dots20,25mm)
[Reference] GS k
GS k m n d1...dn
[Name] Print bar code
[Format] ASCII
Hex
Decimal
[Range] m = <43>H, m = <45>H, m = <46>H or m = <49>H
(n and d depend on the bar code system used).
[Description] Selects a bar code system and prints the bar code.
m selects a bar code system as follows:
m
<43>H
<45>H
<46>H
<49>H
status1 = Transmit printer status
status2 = Transmit offline status
status3 = Transmit error status
status4 = Continuous paper sensor status
status5 = Paper sensor status
GS f
1D 66
29 102
n Font
Font A (12x24)
Font B (8x16)
GS h
1D 68
29 104
GS k
1D 6B
29 107
Bar Code Num. of characters
System
EAN13 n = 12
1 ≤ n ≤ 255
CODE39
1 ≤ n ≤ 255 (even)
ITF
2 ≤ n ≤ 255
CODE128
TS2000 PRINTERS OPERATION MANUAL
n
n
n
n
n
n
m n d1...dn
m n d1...dn
m n d1...dn
48 ≤ d ≤ 57
48 ≤ d ≤ 57, 65 ≤ d ≤ 90, 32, 36,
37, 43, 45, 46, 47
48 ≤ d ≤ 57
0 ≤ d ≤ 127
Remarks
46/58
