NC parameterization
8.2.2

Basic layout

IndraMotion MTX micro Easy Setup for Standard Turning and Milling Machines
When opening the "NC configuration" for the first time, the basic NC Configu‐
ration (MAIN) is displayed in the basic layout. Otherwise, the last setting is
displayed.
1: Project Explorer
2: Parameter groups
3: Working area/parameter editor
4: Quick editor

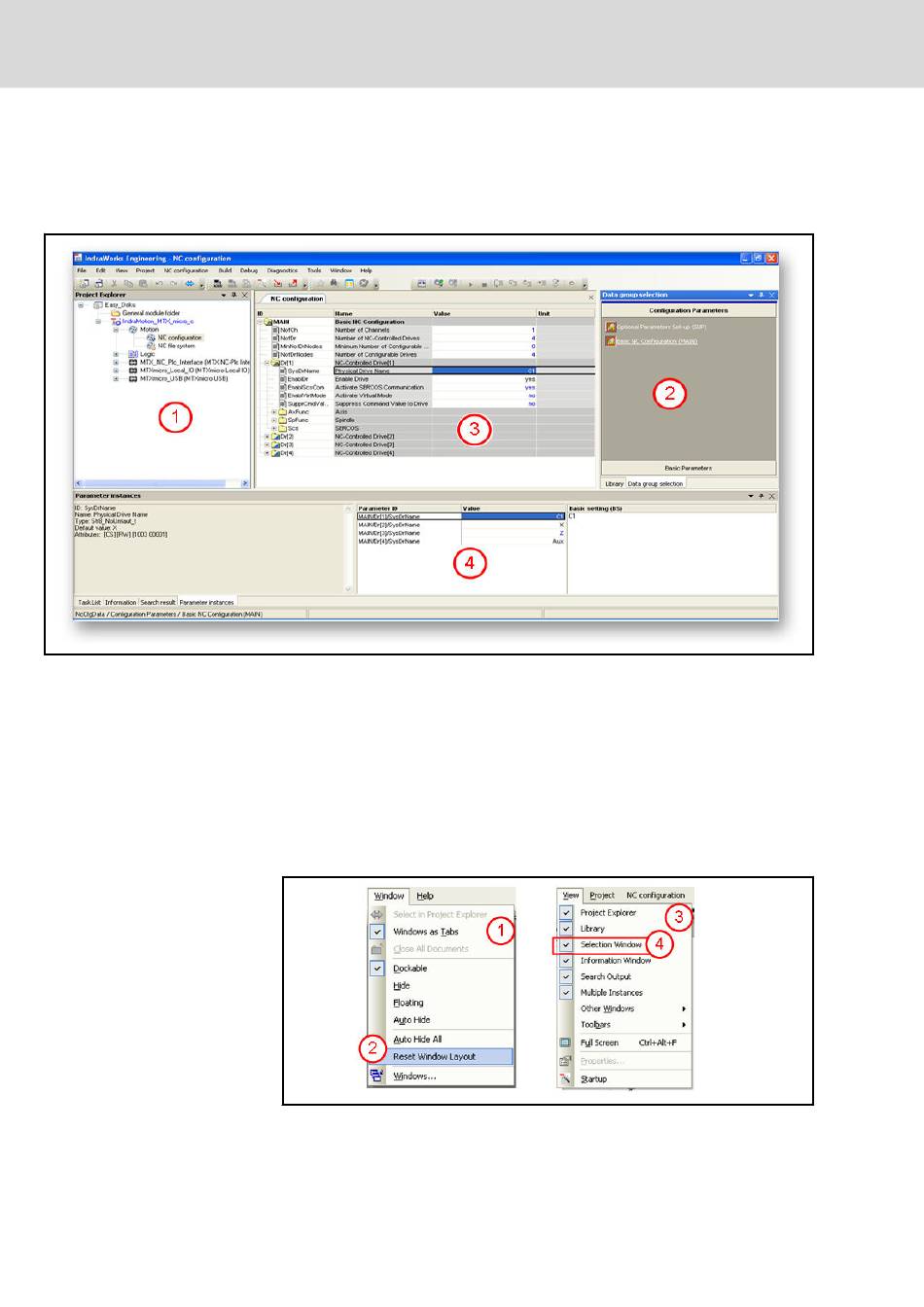

Fig. 8-2: Basic screen "NC configuration"
If you wish to restore the basic NC configuration layout, proceed as follows:
1. Window
2. Reset Windows Layout
3. View
4. Selection window
Fig. 8-3: Restoring the basic setting of the IndraWorks layout for parameteriz‐
ing the NC
