Block Diagram; Optional Accessories; Figure 2 - Open-Q 2500 Block Diagram - Intrinsyc Open-Q 2500 User Manual

Open-Q™ 2500 Development Kit User Guide

3.4.2 Block Diagram

The block diagram below shows the connectivity and major components of the Open-Q 2500
Development Kit.
DMIC
Camera Conn
uSD Card
Debug USB FTDI USB
USB
Micro-B HS
Mono Spkr
Speaker Term.
Audio
SIM Card
Socket
USB2
Type-C
12V Power
Power
Batt Power

3.4.3 Optional Accessories

Optional accessories are available for the Open-Q 2500 development kit, like LCD Panel, Camera
adapter, and sensor board. Please visit the Intrinsyc product store for availability of these accessories:
https://shop.intrinsyc.com/collections/all, or contact sales@intrinsyc.com.
Display/Touch
Header
MIPI-DSI
MIPI-CSI
SDC2
UART
Bridge
Digital Audio
Exp. Header
Amp
MI2S
UIM
GPIO Header
Haptics Header
Sensor Header
USB HS
VBUS
Power/Battery
Power
Management
Buttons/LEDs
Boot SW
Open-Q™ 2500 Common Carrier Board
Open-Q™ 2500 Common Carrier Board

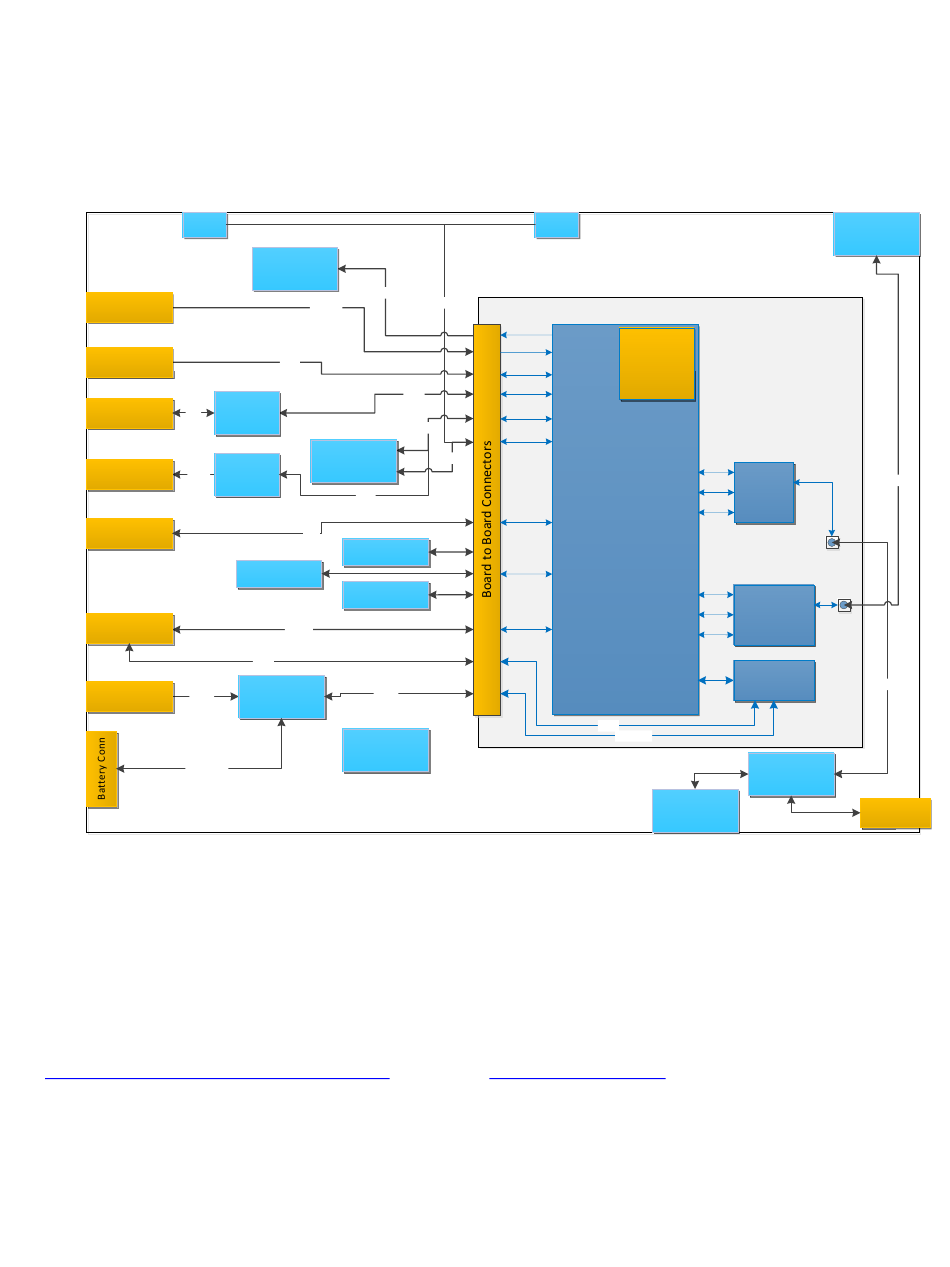

Figure 2 - Open-Q 2500 Block Diagram

Copyright Intrinsyc Technologies Corporation
DMIC
PDM
MIPI-DSI
MIPI-CSI
SDC2
Debug UART
MI2S audio
MI2S
DMIC input
PDM
UIM/GPIO
GPIO/BLSP
USB2
APQ8009W
VBUS
11
Version 1.1
Open-Q™ 2500 SOM
PoP memory
RAM 1GB
eMMC 8GB
SDC1 DRAM
WGR7640
GPS
Wi-Fi / BT
WCN3620
PMIC
Power
PMW3100
Main Pwr
Front-end
GPS PCB
Antenna
Wi-Fi/BT
Antenna
Coax
GPS Antenna
U.FL
Wi-Fi/BT
Antenna U.FL
Coax
GPS
GPS Ant
Conn SMA
