3.6 System Block Diagram

The Open-Q 820 development platform consists of three major components

Open-Q 820 SOM

•
Carrier board for I/O and connecting with external peripherals
•
Display Adapter Board (additional accessory)
•
The following diagram explains the interconnectivity and peripherals on the development kit.
DC
3.8V BUCK
Jack
POWER
RST/Vol -
VOL +
GENERAL
SLOT
Mini card
USB
HUB
(for Debug)
Type uB
Type uAB
3 x DMICs
MIC BIAS
3 x AMICs
4 x Line-out
Sound wire
Headset
3 x AMICs
conn.
1 x HPH
(ANC)
Automation
Conn
TTL to
USB
3.7 Open-Q 820 SOM
The SOM provides the basic common set of features with minimal integration efforts for end users.
It contains the following:
Qualcomm APQ8096 main application processor
•
LPDDR4 up to 1866MHz 3GB RAM (POP)
•
PMi8996 + PM8996 – PMIC for Peripheral LDOs, Boost Regulators
•
Open-Q™ 820 Dev Kit User Guide
LEDs
/3
VBAT
RGB
PMi8996
PM8996
GPIO127
PCIe 2.1
PCIe 2.1
USB HS
USB HS
USB SS
I2S
WCD9335
Codec
QSPI

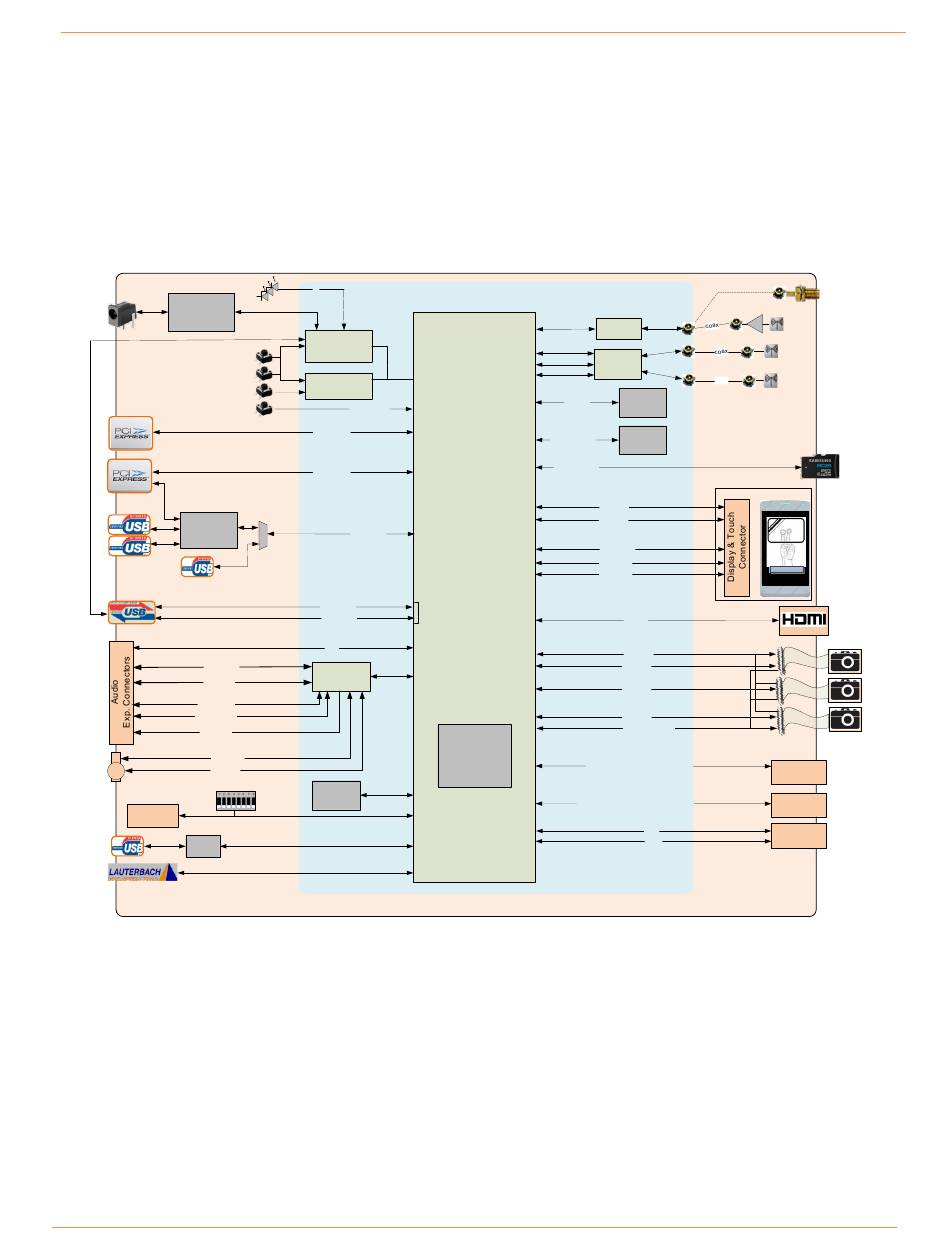

Figure 2 Open-Q 820 Block Diagram
