Open-Q™ 2500 Development Kit User Guide

3.7.11 Camera Connector J1400

The Open-Q 2500 development kit include a camera interface connector, J1400, allowing users to
connect a camera adapter to the development kit. Intrinsyc offers compatible camera modules for the
Open-Q 2500. See https://shop.intrinsyc.com/collections/accessories
Exposed on the camera connector are the following interfaces:
• One 2-lane MIPI CSI high speed camera interface
• I2C bus for camera and actuator control
• Additional GPIOs for general purposes available
• Various power rails for powering the camera adapter
For details on the signal list provided on the camera connector, see the development kit schematic
(R-3) and the camera adapter design guide technical note document (R-5).

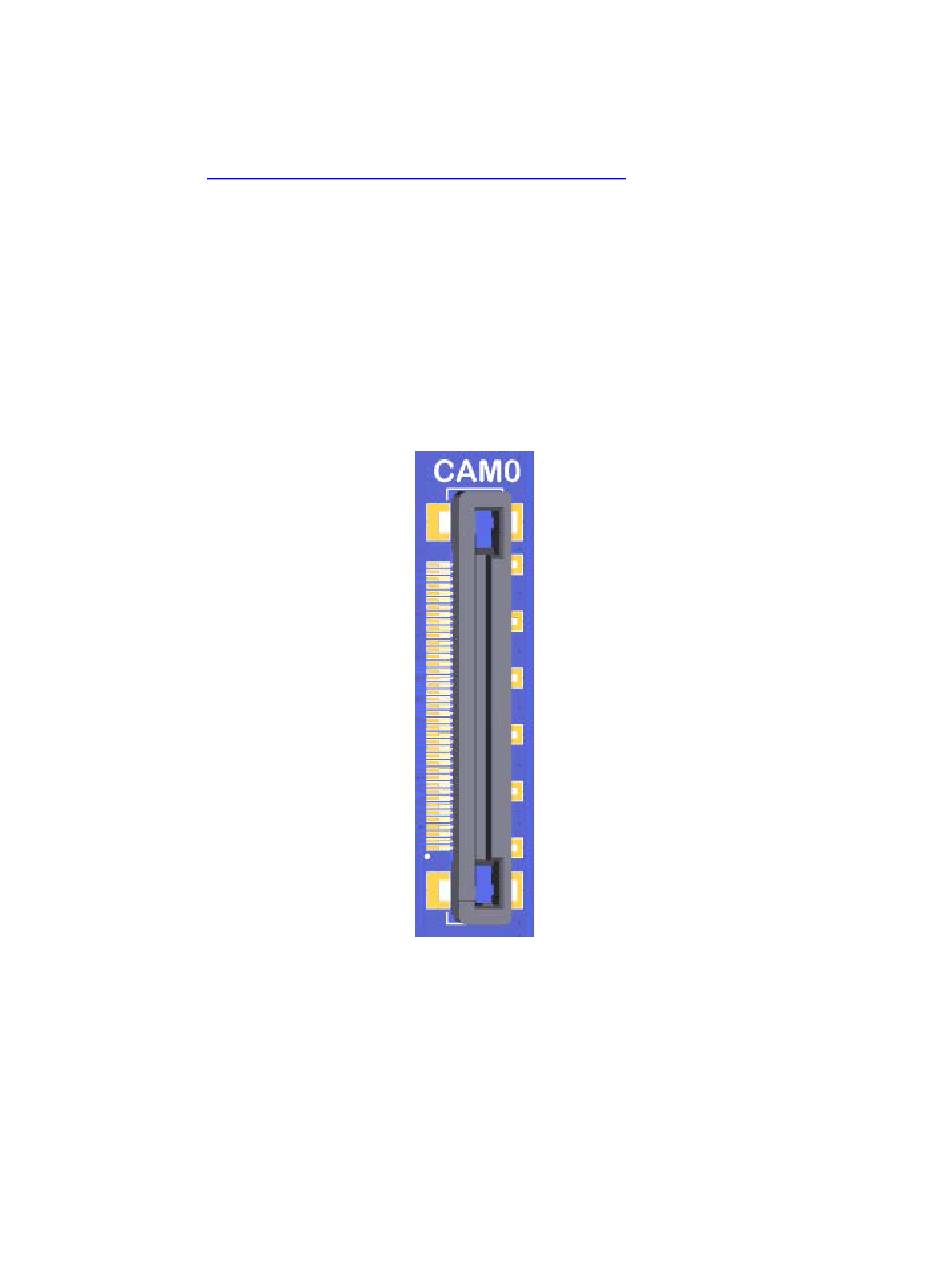

Figure 7 - Camera Connector

23
Copyright Intrinsyc Technologies Corporation
Version 1.1
for details.
