Open-X™ 8M Development Kit based on the NXP i.MX8™ Processor User Guide Version 1.0

3.6 System Block Diagram

The Open-X 8M development platform consists of three major components:
• Open-X 8M SOM
• Carrier board for I/O and connecting with external peripherals
• Display Adapter Board (optional accessory)
The following diagram explains the interconnectivity and peripherals on the development kit.
DC Jack
USB 3.0 Type-C OTG
USB 3.0 Type-A HOST
USB HS
M.2 NGFF, Key-E
USB HS
USB 2.0 uB Debug
USB VBUS
CP2105
USB HS
JTAG
3x SAI/NAND/SPDIF/I2C
Audio Expansion
Display and Touch
Connector
Power
PMIC
3.3V Buck
NXP PF4210
USB HS
USB SS
USB SS
USB Mux
PCIe/UART/SDIO/PCM
UART3
UART4
4L DSI/I2C/Controls
i.MX 8M SOM
User / RST / PWR

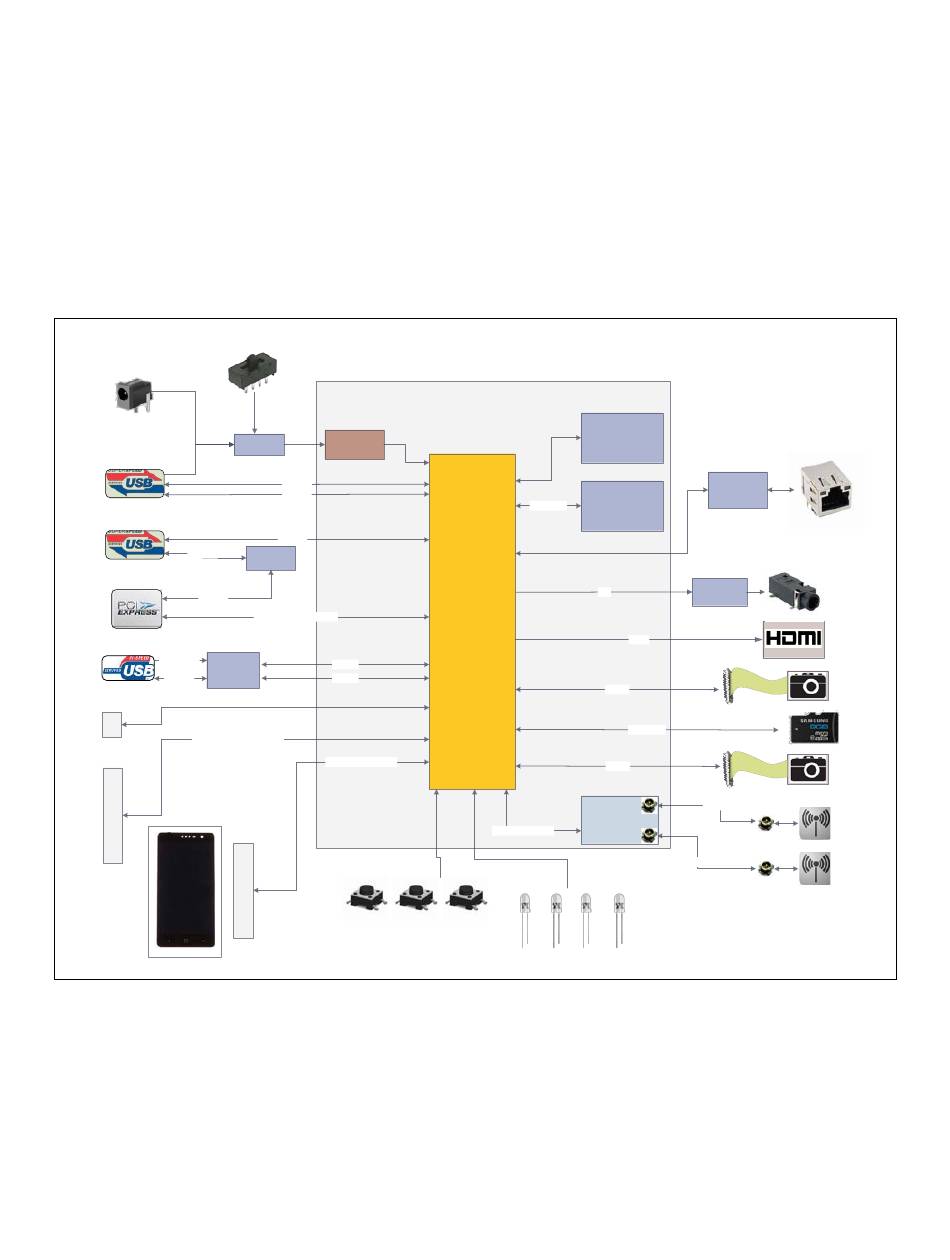

Figure 3-2 Open-X 8M Block Diagram
Copyright Intrinsyc Technologies Corporation
LPDDR4 (3GB)
NXP
MT53B768M32D4NQ
iMX8MQ
-062 WT:B
eMMC (16GB)
8-bit SDIO MTFC16GAKAECN-
2M WT
SAI
HDMI
CSI 4L
4-bit SDIO
CSI 4L
U69H025.22
WiFi/BT
UART/PCM/PCIe
User1 / User2 / Power / PWM
10
AR8031
Gigabit
Ethernet PHY
Line Level
Audio
WM8524
CODEC
Connector
COAX
BT/WiFi
Anetnnas
(2.5/5GHz)
COAX
i.MX 8M CARRIER
BOARD
