Open-Q™ 2500 Development Kit User Guide

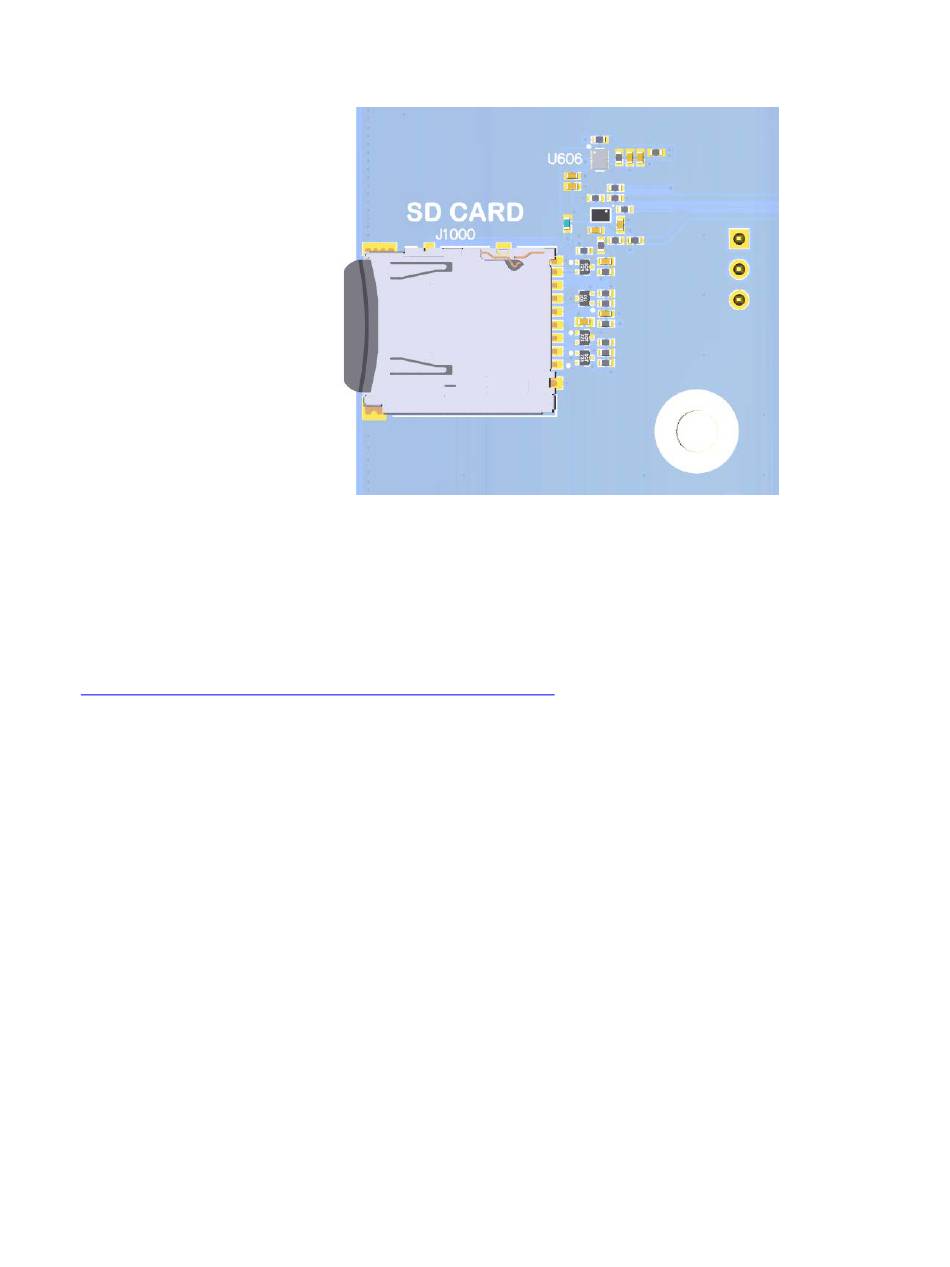

3.7.9 Micro SD Card Socket J1000

J1000 (Micro-SD card connector) provides 4-bit secure digital (SD) interface for external storage. It

is located on the bottom side of the carrier board.

The 100-pin display connector, J1300, allows for a display adapter to be connected to the

development kit. Intrinsyc supplies a compatible LCD panel to be connected to the Open-Q 2500.

See

https://shop.intrinsyc.com/products/open-q-810-820-lcd

Exposed on the display connector are the following interfaces:

• One 4-lane MIPI DSI high speed display interface

• LCD backlight control signals

• I2C bus for touch panel support

• Additional GPIOs for general purposes available

• Various power rails for powering the display adapter

For details on the signal list provided on the display connector, see the development kit schematic

(R-3) and the display adapter design guide technical note document (R-4).

for details.
