Open-Q™ 2500 Development Kit User Guide
Version 1.1
3.7.17 WLAN / BT Antenna Connection
The Open-Q 2500 development kit is shipped by default with the SOM WLAN / BT antenna coax
connecter mated to the Carrier board WLAN / BT PCB antenna via a U.FL coax cable. The two
images below show the two ends of the WLAN / BT antenna connection.
SOM WLAN
/BT connection
Carrier WLAN
/BT connection

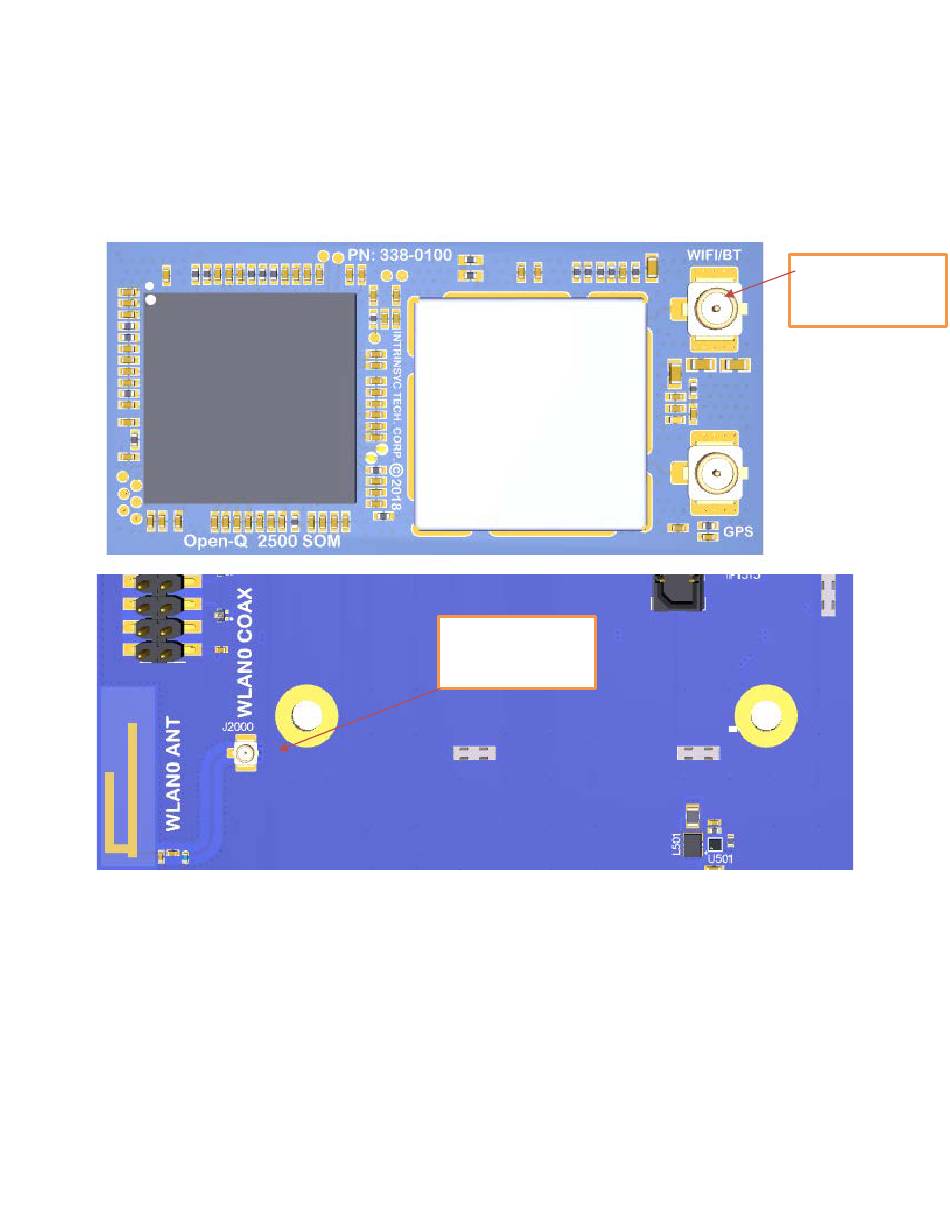

Figure 14 - WLAN / BT Antenna Connection
3.7.18 GPS Antenna Connection Options
The Open-Q 2500 development kit is shipped by default with the SOM GPS antenna coax connecter
mated to the Carrier board GPS antenna coax connector via a U.FL coax cable. The two images
below show the two ends of the GPS antenna connection.
30
Copyright Intrinsyc Technologies Corporation
