Open-Q™ 2500 Development Kit User Guide

3.7.21 Speaker Output Connector

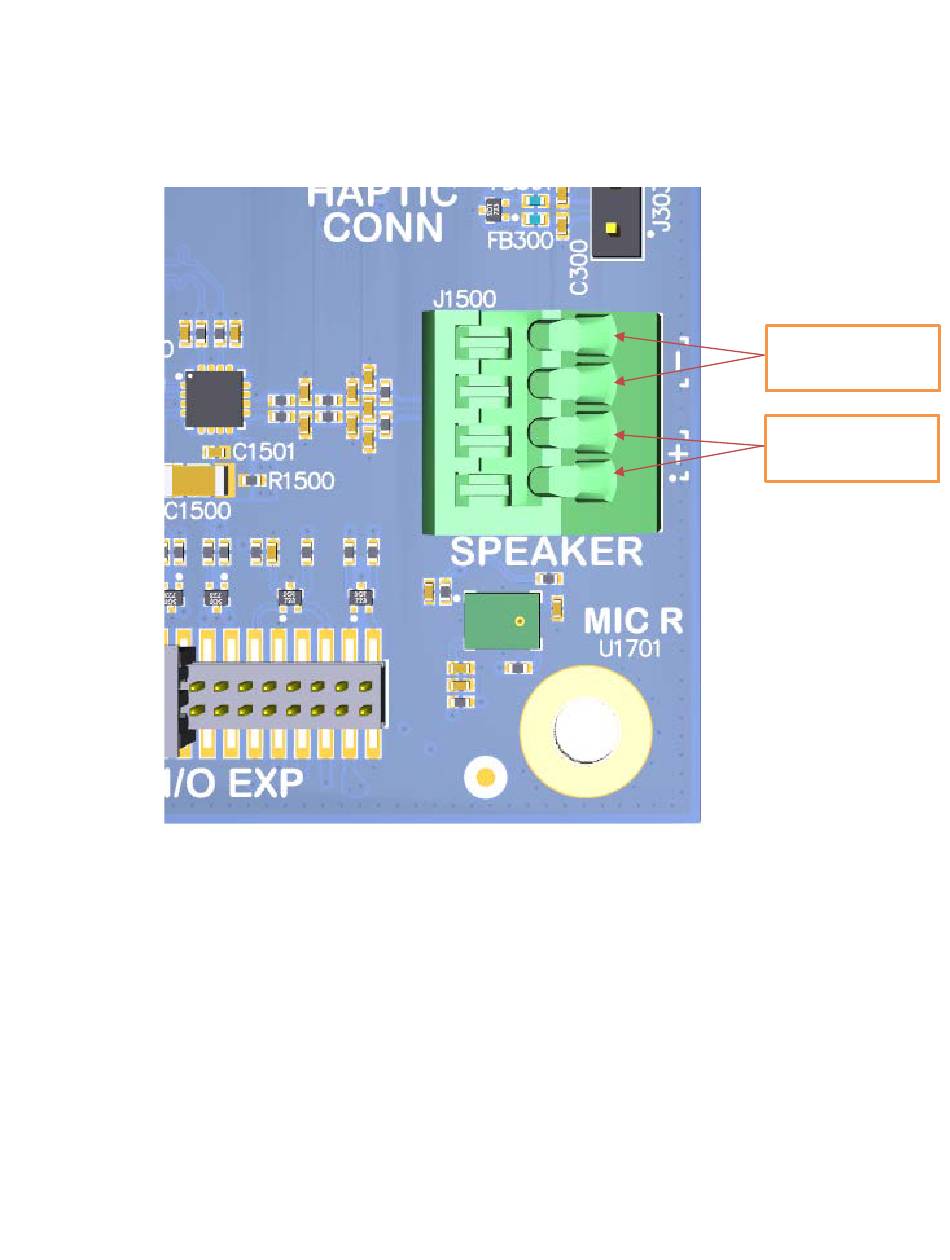

There is a speaker output connection provided on the carrier board. The positive and negative
terminals are shown in the figure below.

3.7.22 Unsupported Features

The Open-Q 2500 carrier board contains features for a modem enabled SOM, such as a SIM card
socket and two cellular antenna coax connectors. These features are not supported on the current
Open-Q 2500 development kit.
33
Copyright Intrinsyc Technologies Corporation
Version 1.1
Negative speaker
terminal
Positive speaker
terminal
