5 Touch screen

5.1 Touch screen calibration

B&R touch screen devices are equipped with a touch controller that supports hardware calibration. As a result,
devices are pre-calibrated when delivered. This is an advantageous feature when replacing devices of the same
model or type since it avoids having to recalibrate the new device. Nevertheless, calibrating the device is still
recommended in order to achieve the best results and to better adapt the touch screen to the user's preferences.

5.2 Operating the touch screen

The analog resistive touch screen is executed about 1 cm over the edge of the display. If you press on 2 positions
simultaneously, then the midpoint of the touch screen is controlled and selected.
Point of contact 1
Note:
The touch screen goes beyond the inner edge of the panel overlay. When operating the touch screen,
the selection is moved if the Power Panel is held in your hands and the panel overlay is touched.

6 Screen rotation

It is possible to rotate the contents of the screen by 90° using the graphic driver's screen rotation function. This
function is supported by Automation Runtime.
Power Panel C-Series User's Manual V1.00
Average

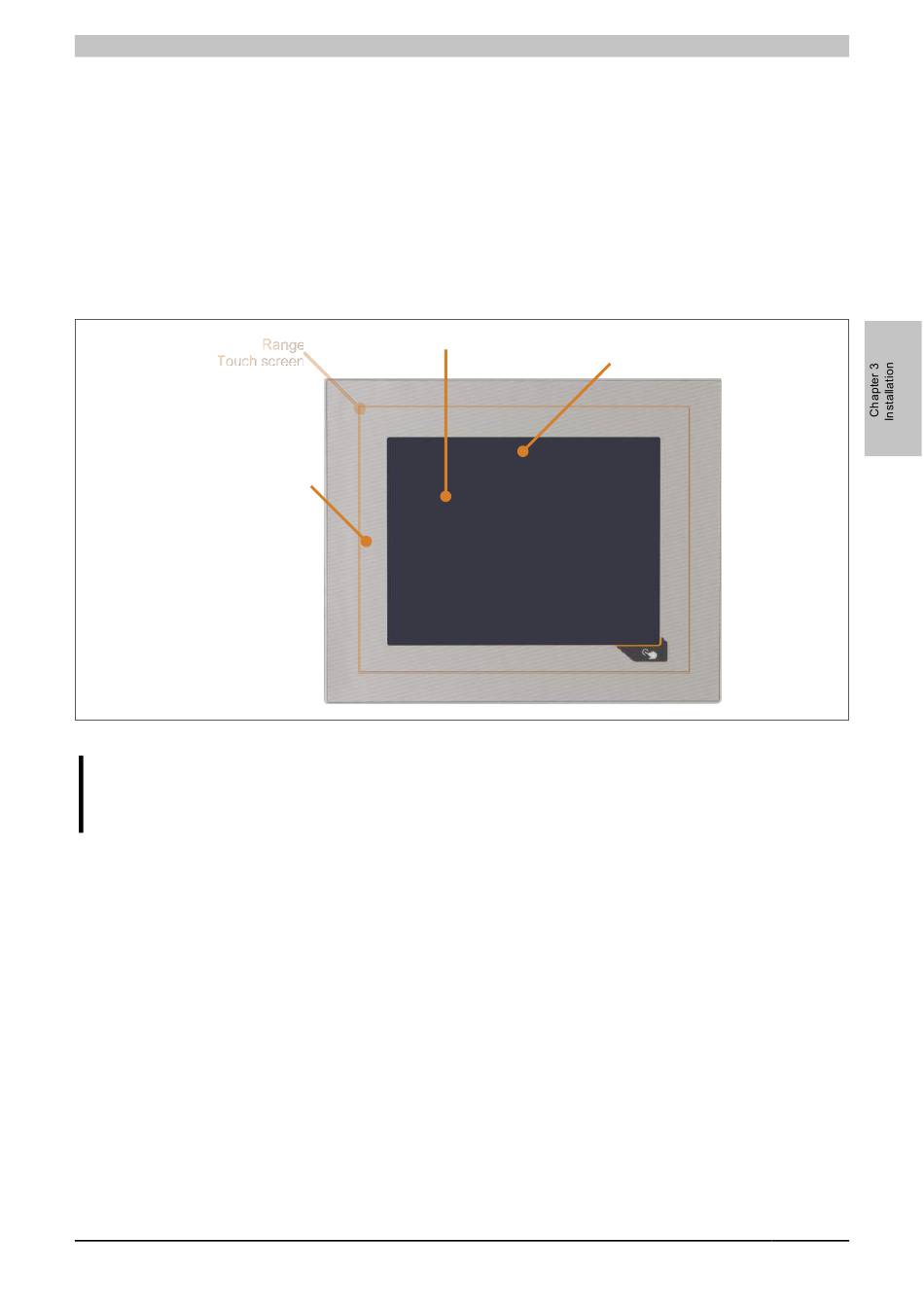

Figure 29: The midpoint between 2 points of contact
