Accessories • TB102 2-pin power supply connector
Model number
Product ID
X67CA0X31.0500
X2X Link attachment cable, angled, 50 m
X2X Link cable
X67CA0X99.1000
Cable for custom assembly, 100 m
X67CA0X99.5000
Cable for custom assembly, 500 m

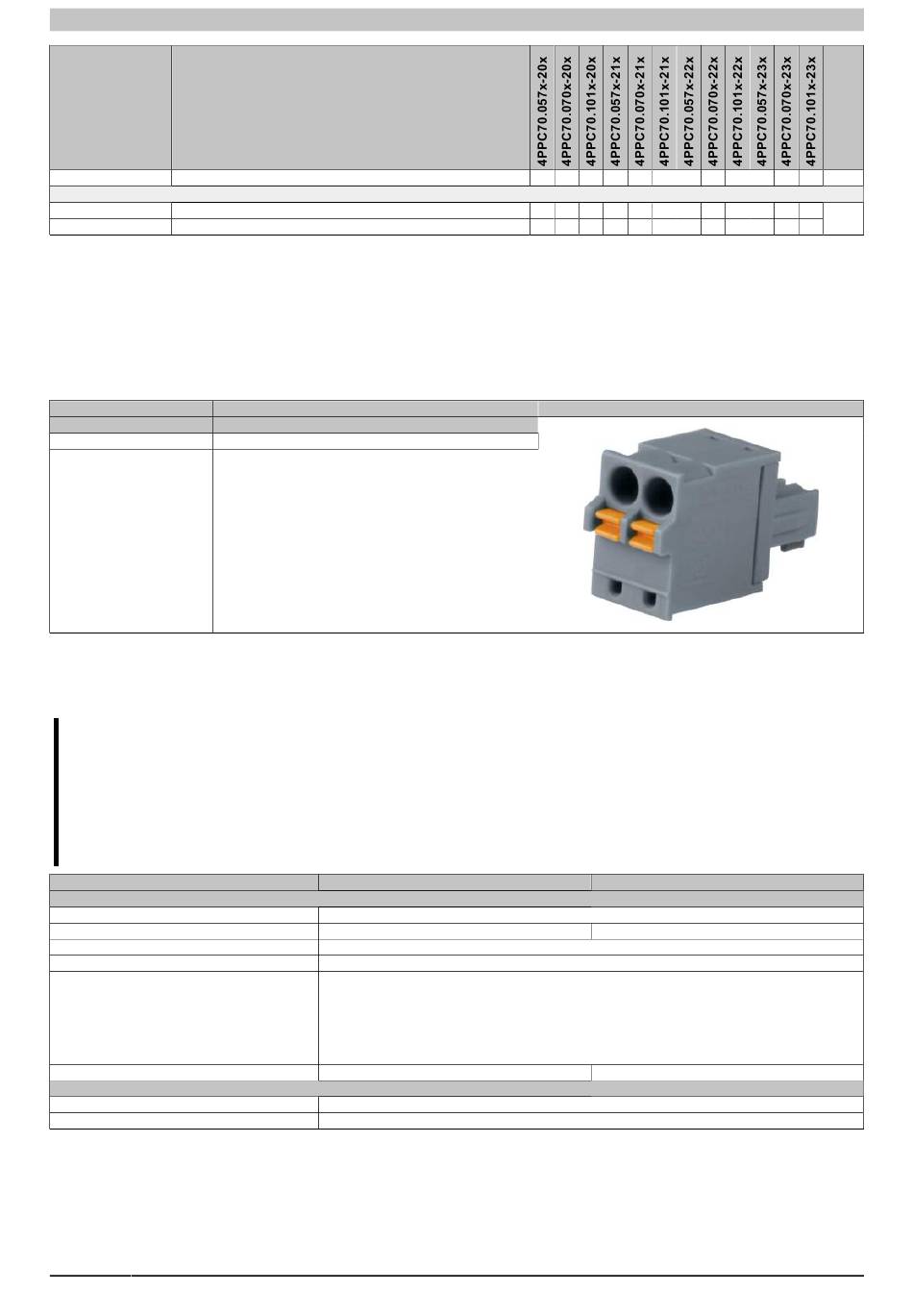

2 TB102 2-pin power supply connector
This single-row 2-pin terminal block is used to connect the power supply.
2.1 Order data
Model number
Short description
Terminal blocks
0TB6102.2010-01
Accessory terminal block, 2-pin (3.81), screw clamp 1.5 mm²
0TB6102.2110-01
Accessory terminal block, 2-pin (3.81), cage clamp, 1.5 mm²
2.2 Technical data
Information:
The following characteristics, features and limit values only apply to this accessory and can deviate
from those specified for the complete system. The data specifications for the complete system take
precedence over those of individual components.
The technical data in this manual is current as of its creation/publication. We reserve the right to make
changes.
Product ID
Terminal block
Number of pins
Type of terminal clamp
Cable type
Distance between contacts
Connection cross section
AWG wire
Wire end sleeves with plastic covering
With wire end sleeves
Flexible
Inflexible
Tightening torque
Electrical characteristics
Nominal voltage
Nominal current
1)
1)
The limit data for each Power Panel must be taken into consideration.
86
Table 48: C-Series overview
Table 49: 0TB6102.2010-01, 0TB6102.2110-01 - Order data
0TB6102.2010-01
Screw clamps
0.22 to 0.25 Nm
Table 50: 0TB6102.2010-01, 0TB6102.2110-01 - Technical data
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
2 (female)
Copper wires only (no aluminum wires!)
3.81 mm
28 to 16
0.25 to 0.5 mm²
0.25 to 1.5 mm²
0.14 to 1.5 mm²
0.14 to 1.5 mm²
300 V
8 A
Power Panel C-Series User's Manual V1.00
Page
●
●
●
●
●
●
●
●
●
●
●
●
87
●
●
●
●
●
●
Figure
0TB6102.2110-01
Cage clamps
-
