Chapter 7 • Technical information

1 Panel overlay

The panel overlay conforms to DIN 42115 (Part 2). This means it is resistant to exposure to the following chemicals
for a 24-hour period with no visible signs of damage:
Information:
The following characteristics, features and limit values only apply to this individual component and can
deviate from those specified for the complete system. For the complete system in which this individual
component is used, refer to the data given specifically for that device.
Ethanol
Cyclohexanol
Diacetone alcohol
Glycol
Isopropanol
Glycerine
Methanol
Triacetin
Dowandol
DRM/PM
Acetone
Methyl ethyl ketone
Dioxan
Cyclohexanone
Methylisobutylketone (MIBK)
Isophorone
Ammonia < 40%
Caustic soda < 40%
Potassium hydroxide
Alkali carbonate
Bichromate
Potassium
Acetonitrile
Sodium bisulphate
The panel overlay conforms to DIN 42115 section 2 for exposure to glacial acetic acid for less than one hour without
visible damage.

2 Viewing angles

Viewing angle specifications (R, L, U, D) for the display types are listed in the technical data for each device.
Power Panel C-Series User's Manual V1.00
Formaldehyde 37%-42%
Acetaldehyde
Aliphatic hydrocarbons
Toluene
Xylene
White spirits
Formic acid < 50%
Acetic acid < 50%
Phosphoric acid < 30%
Hydrochloric acid < 36%
Nitric acid < 10%
Trichloracetic acid < 50%
Sulphuric acid < 10%
Cutting oil
Diesel oil
Linseed oil
Paraffin oil
Ricinus oil
Silicon oil
Turpentine oil substitute
Brake fluid
Aviation fuel
Gasoline
Water
Sea water
Decon
Table 53: Chemical resistance of the panel overlay
L
D
Facing 6 o'clock

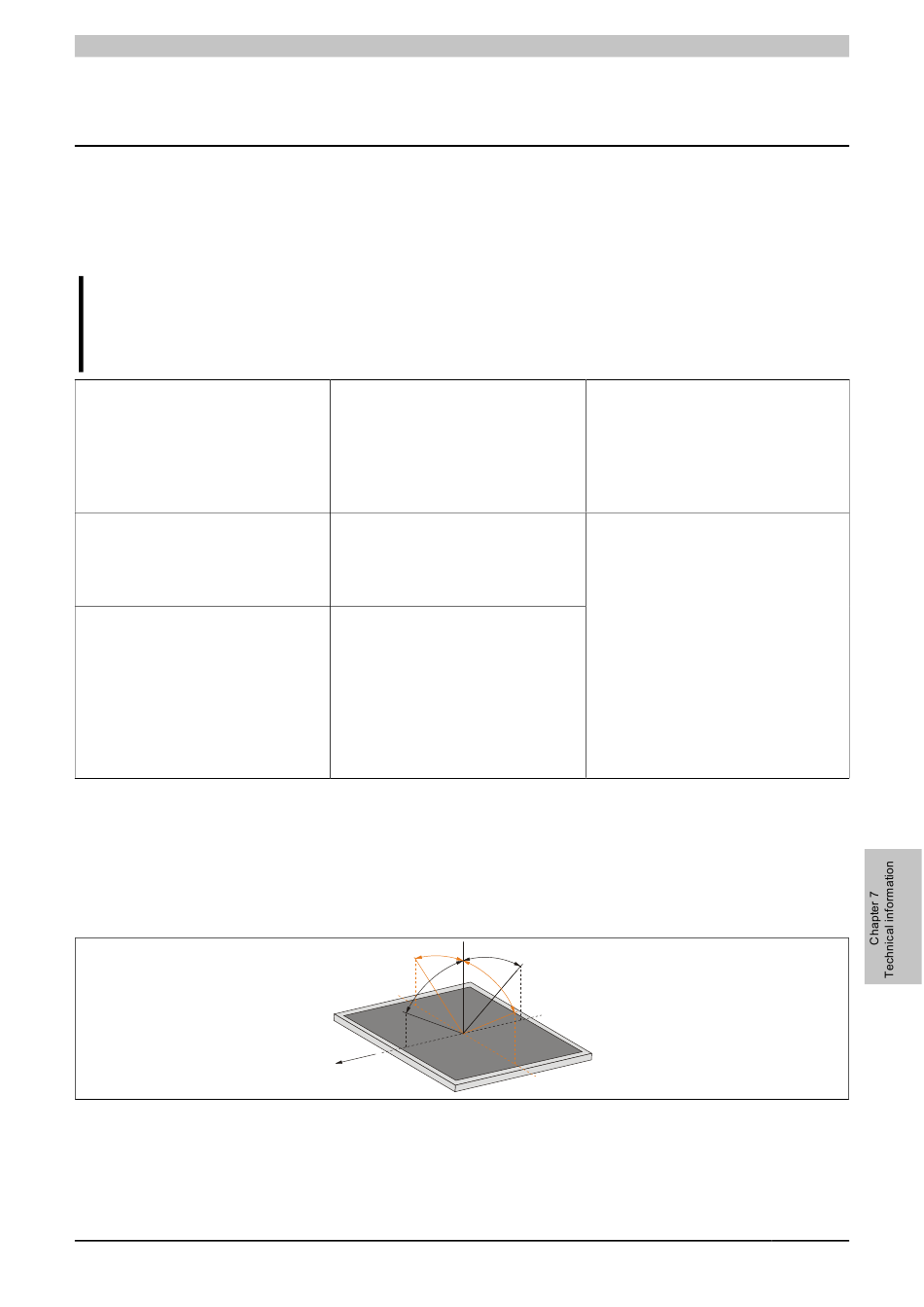

Figure 30: Viewing angles
Technical information • Viewing angles
Trichloroethane
Ethyl acetate
Diethyl ether
n-Butyl acetate
Amyl acetate
Butylcellosolve
Ether
Sodium chloride <20%
Hydrogen peroxide < 25%
Potassium carbonate
Washing agents
Tenside
Fabric conditioner
Iron (II) chloride
Iron (III) chloride
Dibutyl phthalate
Dioctyl phthalate
Sodium carbonate
U
R
