Max. control cabinet thickness: 6 mm
Cutout dimensions: 161.9 mm ±1 x 265.9 mm ±1
Power Panel C-Series User's Manual V1.00
112.9
M5
160
5
172

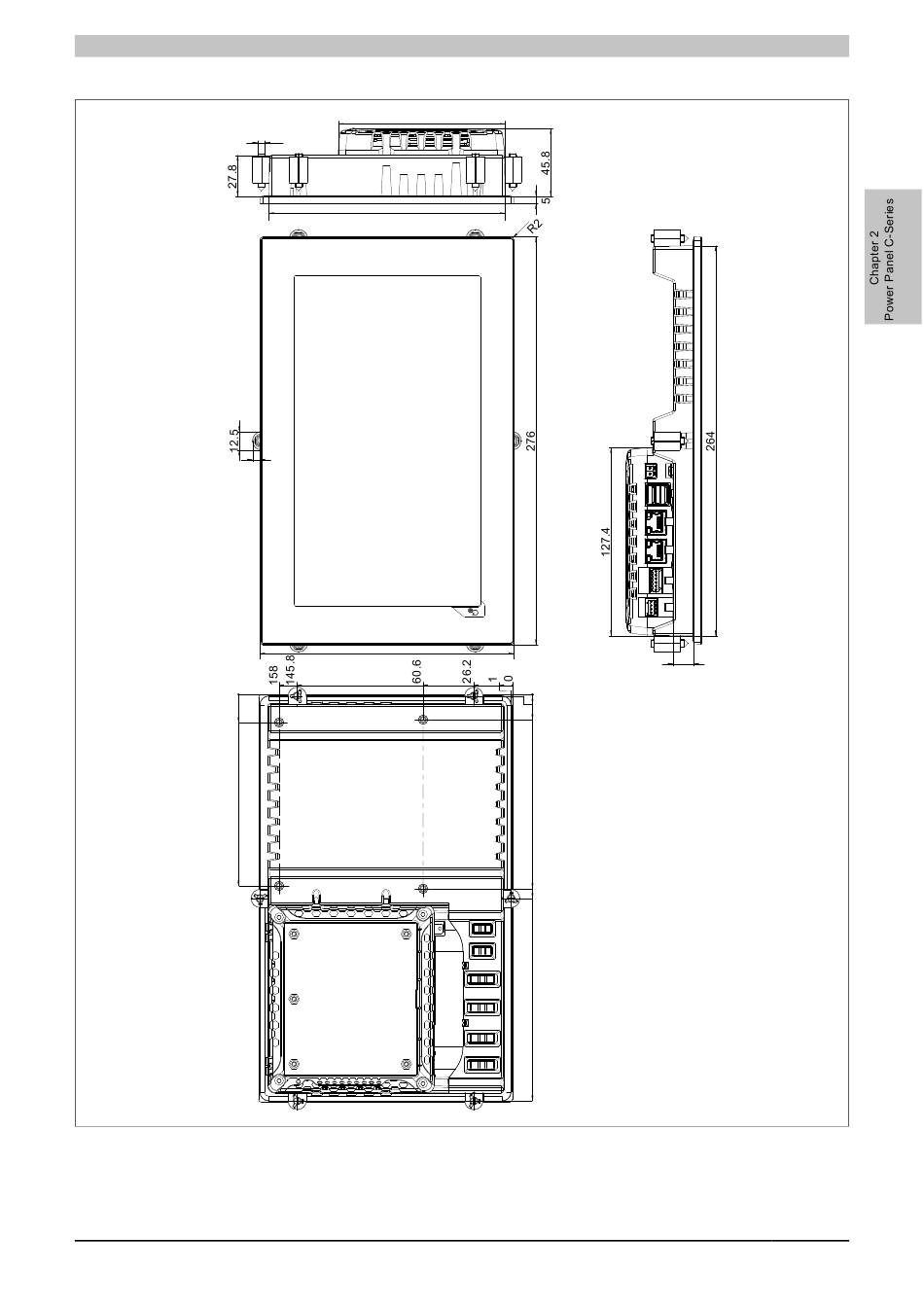

Figure 21: Dimensions - 4PPC70.101x-2xx - 4PPC70.101N
Power Panel C-Series • C-Series
13.8
0
1
17
131.4
138
275
77
