Power Panel C-Series • C-Series
2.4.8.3 Dimensions - 4PPC70.101x-2xx
Landscape
Max. control cabinet thickness: 6 mm
Cutout dimensions: 265.9 mm ±1 x 161.9 mm ±1
76
264
12.5
276

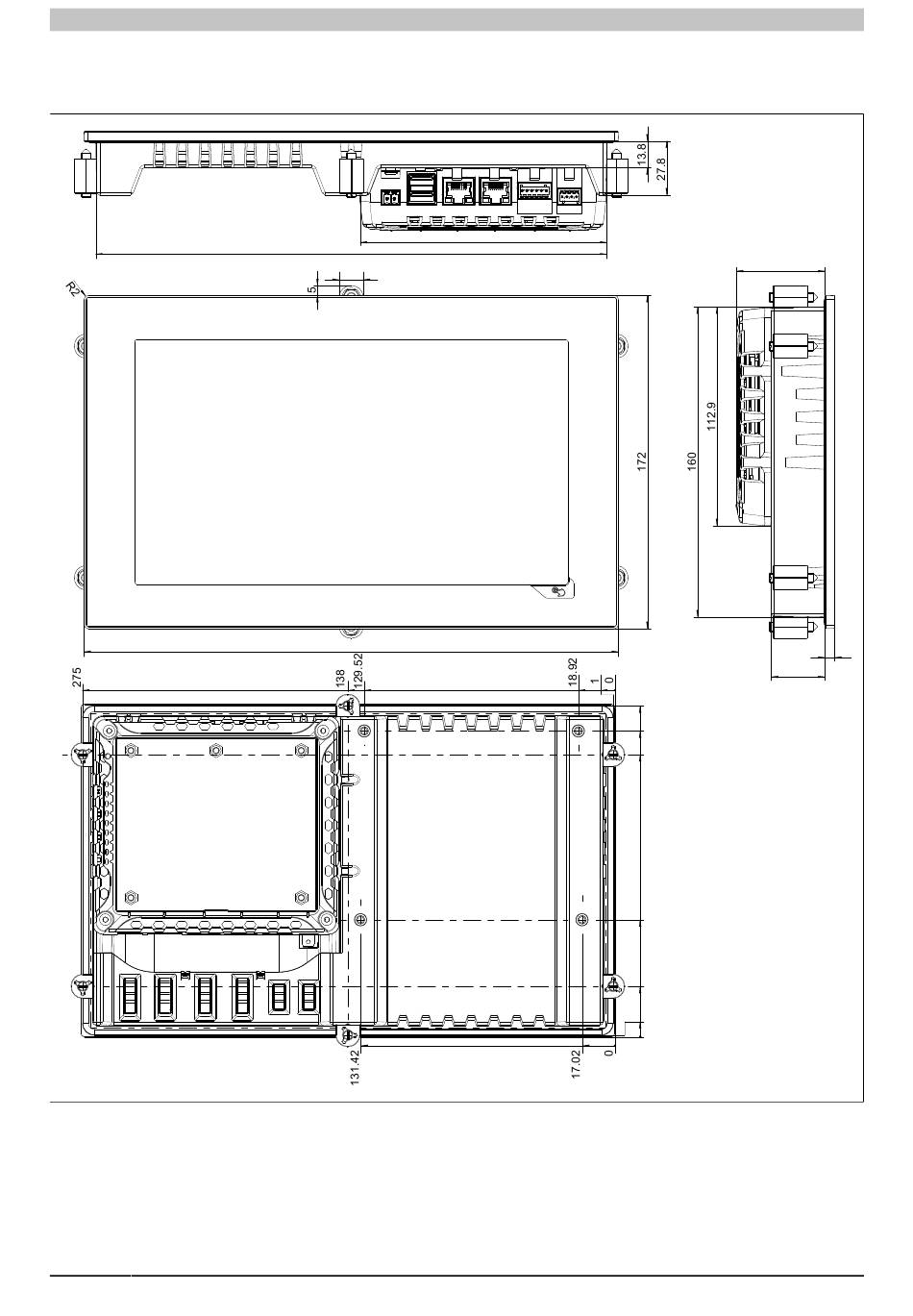

Figure 20: Dimensions - 4PPC70.101x-2xx - 4PPC70.101G
127.4
Power Panel C-Series User's Manual V1.00
45.824
27.8
171
158
145.8
60.6
26.2
1
0
5
