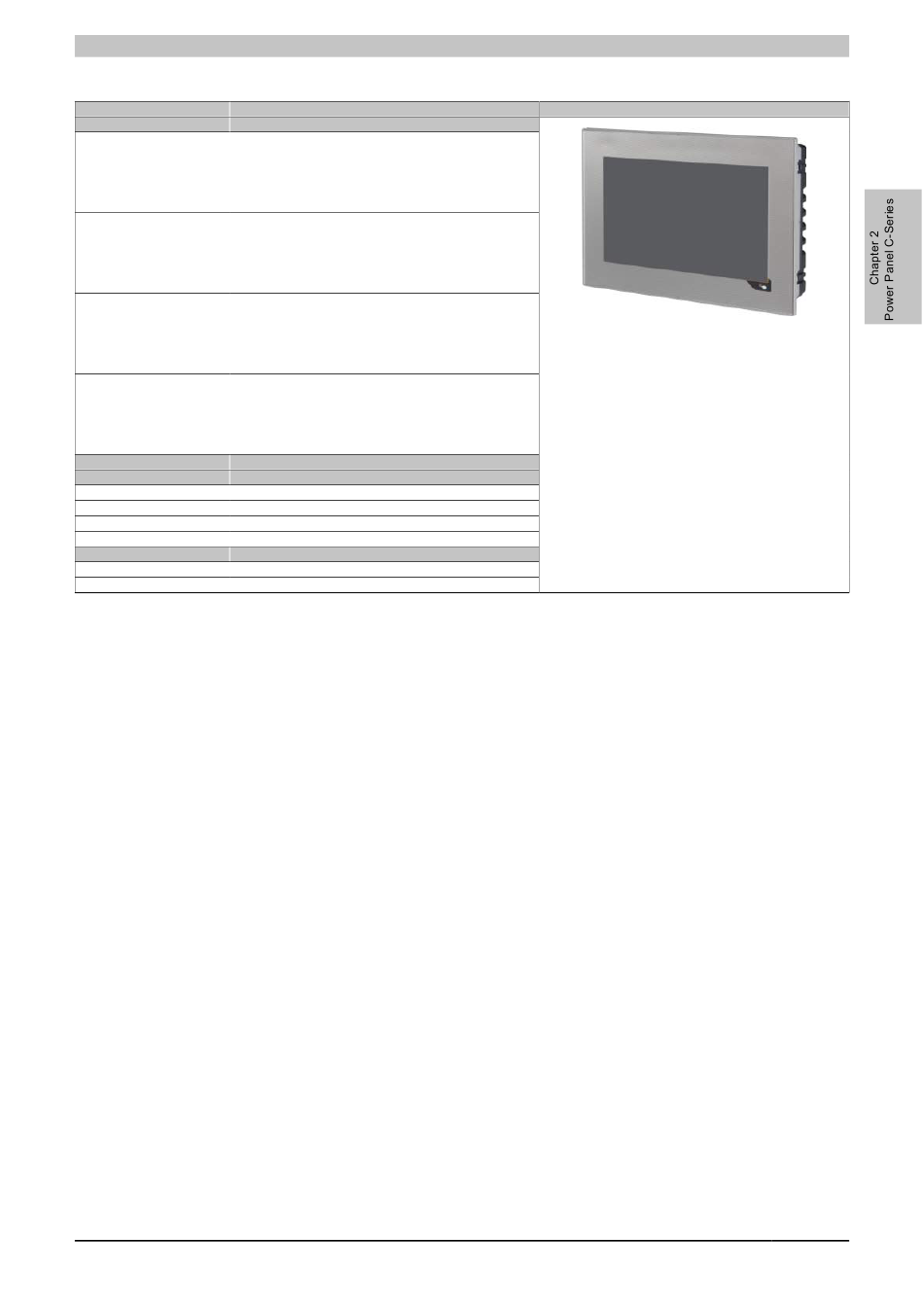

2.4.2.1.3 4PPC70.070x-22x - Order data
Model number Short description
C70
4PPC70.0702-22W Power Panel C70, 7", analog resistive touch screen, Intel ATOM
333 MHz comp., 256 MB DDRAM, 32 kB FRAM, 2 GB flash
drive onboard, 1 X2X Link interface, 1 POWERLINK interface,
1 Ethernet interface 10BASE-T/100BASE-TX, 2 USB 2.0 inter-
faces, basic device with option board: 1x CAN bus, 1x RS232,
landscape format, aluminum white pinstripe
4PPC70.0702-22B Power Panel C70, 7", analog resistive touch screen, Intel ATOM
333 MHz comp., 256 MB DDRAM, 32 kB FRAM, 2 GB flash
drive onboard, 1 X2X Link interface, 1 POWERLINK interface,
1 Ethernet interface 10BASE-T/100BASE-TX, 2 USB 2.0 inter-
faces, basic device with option board: 1x CAN bus, 1x RS232,
landscape format, anthracite gray pinstripe
4PPC70.070M-22W Power Panel C70, 7", analog resistive touch screen, Intel ATOM
333 MHz comp., 256 MB DDRAM, 32 kB FRAM, 2 GB flash drive
onboard, 1 X2X Link interface, 1 POWERLINK interface, 1 Eth-
ernet interface 10BASE-T/100BASE-TX, 2 USB 2.0 interfaces,
basic device with option board: 1x CAN bus, 1x RS232, portrait
format, aluminum white pinstripe
4PPC70.070M-22B Power Panel C70, 7", analog resistive touch screen, Intel ATOM
333 MHz comp., 256 MB DDRAM, 32 kB FRAM, 2 GB flash drive
onboard, 1 X2X Link interface, 1 POWERLINK interface, 1 Eth-
ernet interface 10BASE-T/100BASE-TX, 2 USB 2.0 interfaces,
basic device with option board: 1x CAN bus, 1x RS232, portrait
format, anthracite gray pinstripe
Required accessories
Terminal blocks
0TB5104.2110-01 Accessory terminal block, 4-pin (2.5), cage clamp, 0.5 mm²
0TB5106.2110-01 Accessory terminal block, 6-pin (2.5), cage clamp, 0.5 mm²
0TB6102.2010-01 Accessory terminal block, 2-pin (3.81), screw clamp 1.5 mm²
0TB6102.2110-01 Accessory terminal block, 2-pin (3.81), cage clamp, 1.5 mm²
USB accessories
5MMUSB.2048-01 USB 2.0 flash drive, 2048 MB, B&R
5MMUSB.4096-01 USB 2.0 flash drive, 4096 MB, B&R
Table 18: 4PPC70.0702-22W, 4PPC70.0702-22B, 4PPC70.070M-22W, 4PPC70.070M-22B - Order data
