Power Panel C-Series • C-Series
2 C-Series

2.1 Selecting a Power Panel

Configuration
Display size
The Power Panel C-Series is available in three
different display sizes:
5.7" variant
7.0" variant
10.1" variant
Resolution
The option to choose between portrait and
landscape format adds even more flexibility to
the machine layout.
Interfaces on option board
Adding an option board gives the Power Panel
two additional interfaces.
Panel overlay
The pinstripe design is available in
aluminum white or anthracite gray.

2.2 General technical data

Name Description
Processor Intel E620T 333 MHz
Memory 256 MB DDRAM
Interfaces 1 X2X Link interface
1 POWERLINK interface
1 Ethernet interface 10BASE-T/100BASE-TX,
2 USB 2.0 ports
Other IP65 protection (front side)
Temperature range from 0 to 50°C
Fanless
24 VDC power supply -15% / +20%
10
5.7"
4PPC70.057x-2xx
Landscape
4PPC70.0573-2xx 4PPC70.0702-2xx
4PPC70.xxxx-20x - No option board
4PPC70.xxxx-22x - 1x RS232, 1x CAN bus
Aluminum white pinstripe
4PPC70.0573-20W 4PPC70.0702-20W
4PPC70.057L-20W 4PPC70.070M-20W
4PPC70.0573-21W 4PPC70.0702-21W
4PPC70.057L-21W 4PPC70.070M-21W
4PPC70.0573-22W 4PPC70.0702-22W
4PPC70.057L-22W 4PPC70.070M-22W
4PPC70.0573-23W 4PPC70.0702-23W
4PPC70.057L-23W 4PPC70.070M-23W

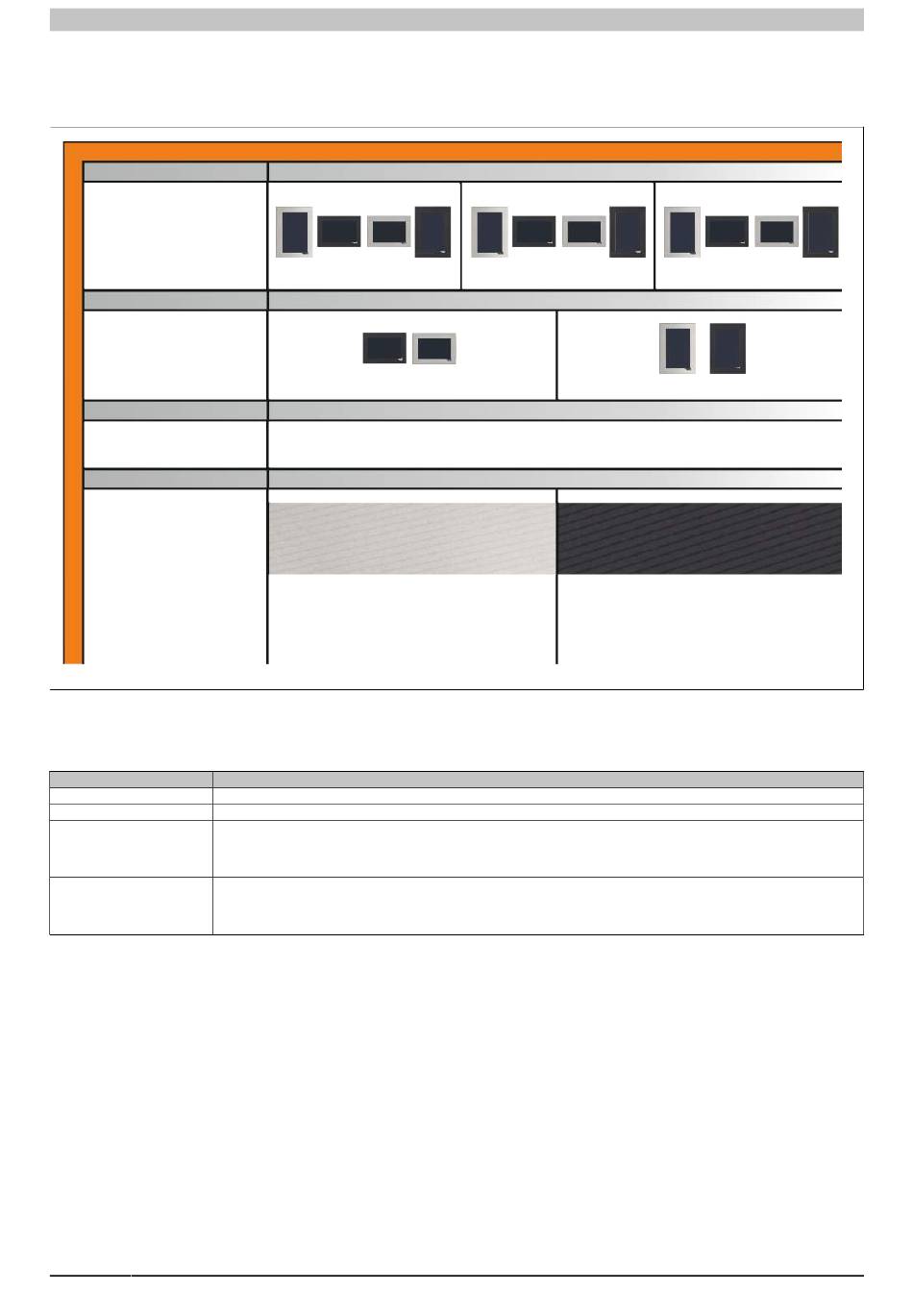

Figure 4: Selecting a Power Panel
Table 3: Power Panel C-Series - General technical data
7"
4PPC70.070x-2xx
Portrait
4PPC70.101G-2xx 4PPC70.057L-2xx
4PPC70.xxxx-21x - 2x CAN bus
4PPC70.xxxx-23x - 1x RS485, 1x CAN bus
4PPC70.101G-20W 4PPC70.0573-20B
4PPC70.101N-20W 4PPC70.057L-20B
4PPC70.101G-21W 4PPC70.0573-21B
4PPC70.101N-21W 4PPC70.057L-21B
4PPC70.101G-22W 4PPC70.0573-22B
4PPC70.101N-22W 4PPC70.057L-22B
4PPC70.101G-23W 4PPC70.0573-23B
4PPC70.101N-23W 4PPC70.057L-23B
Power Panel C-Series User's Manual V1.00
10.1"
4PPC70.101x-2xx
4PPC70.070M-2xx 4PPC70.101N-2xx
Anthracite gray pinstripe
4PPC70.0702-20B 4PPC70.101G-20B
4PPC70.070M-20B 4PPC70.101N-20B
4PPC70.0702-21B 4PPC70.101G-21B
4PPC70.070M-21B 4PPC70.101N-21B
4PPC70.0702-22B 4PPC70.101G-22B
4PPC70.070M-22B 4PPC70.101N-22B
4PPC70.0702-23B 4PPC70.101G-23B
4PPC70.070M-23B 4PPC70.101N-23B
