Installation • Grounding
Information:
First of all, in "Operating System Transfer" the memory is deleted, then Automation Runtime is
transferred and after 3 automatic restarts the Power Panel is then in RUN mode.
USB stick - remote install structure
See details in the RUC (Runtime Utility Center) documentation.

4 Grounding

Grounding tongues on the circuit board ensure effective prevention of signal interference. The shielding of the
various cables (X2X, POWERLINK, Ethernet, option board) is connected to the grounding plate.
82
Figure 27: "Operating System Transfer" - Settings
Grounding plate

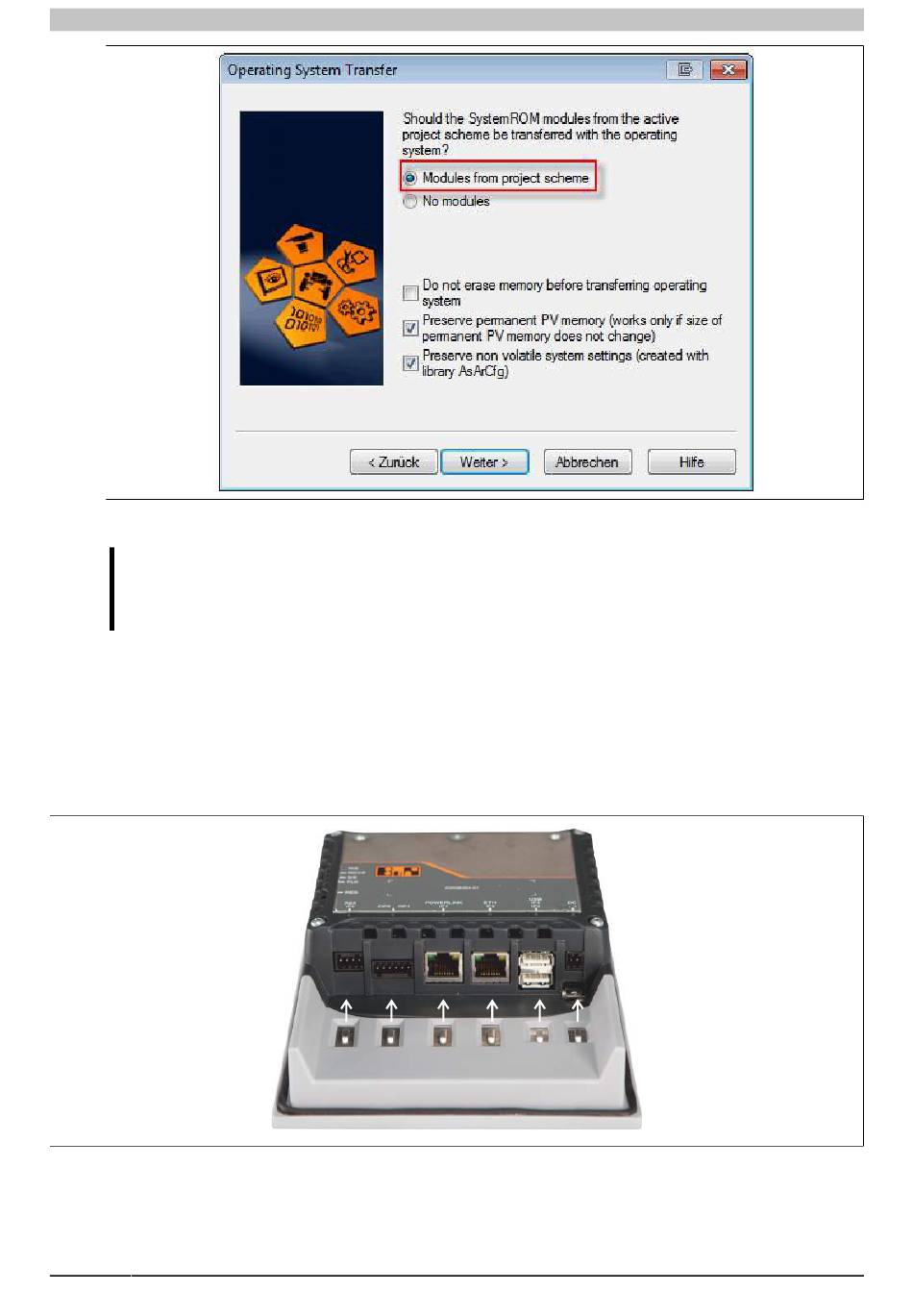

Figure 28: Grounding
