4PPC70.101x-2xx

2.4.7 Connection elements

2.4.7.1 POWERLINK interface
Interface
POWERLINK interface
Shielded RJ45
2.4.7.2 Ethernet interface
Interface
Ethernet interface
Shielded RJ45
(10BASE-T /100BASE-TX)
Power Panel C-Series User's Manual V1.00
Temperature [°C]

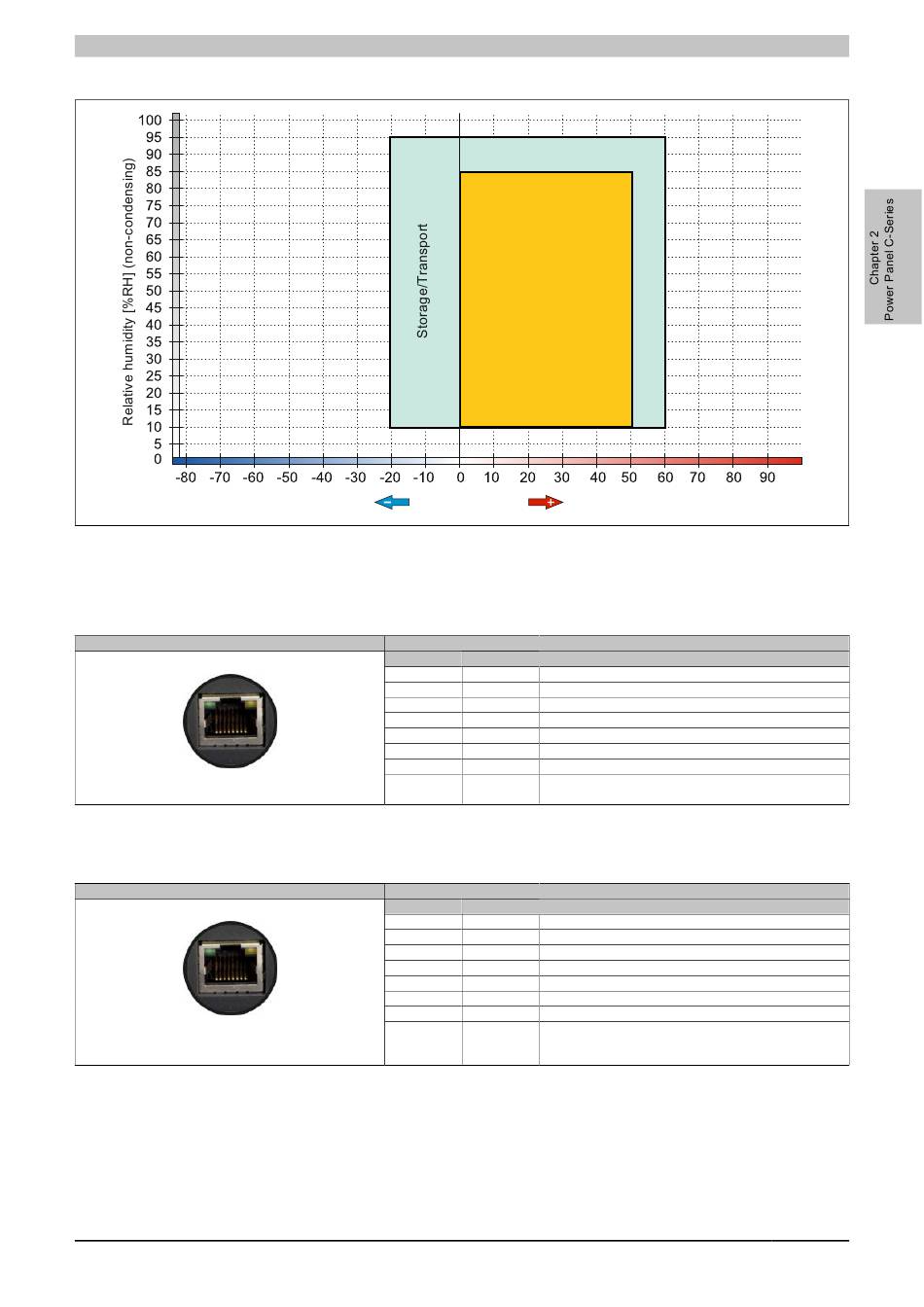

Figure 9: 4PPC70.101x-2xx - Temperature/Humidity diagram
Terminal
1
2
3
4
5
6
7
8
Table 38: POWERLINK interface - Pinout
Terminal
1
2
3
4
5
6
7
8
Table 39: Ethernet interface - Pinout
Power Panel C-Series • C-Series
Operation
Pinout
POWERLINK
RXD Receive signal
RXD\ Receive signal inverted
TXD Transmit signal
Termination Termination
Termination Termination
TXD\ Transmit signal inverted
Termination Termination
Termination Termination
Pinout
Ethernet
RXD Receive signal
RXD\ Receive signal inverted
TXD Transmit signal
Termination Termination
Termination Termination
TXD\ Transmit signal inverted
Termination Termination
Termination Termination
65
