Hardware and layout

The STM32L152-EVAL evaluation board is designed around the STM32L152VBT6
microcontroller in a 100-pin TQFP package.
Figure 1 illustrates the connections between the STM32L152VBT6 and its peripherals (color
LCD, touch sensing button, USB FS connector, temperature sensor, USART, IrDA, audio,
MicroSD Card and embedded ST-LINK/V2).
Figure 2 helps you to locate these features on the evaluation board.

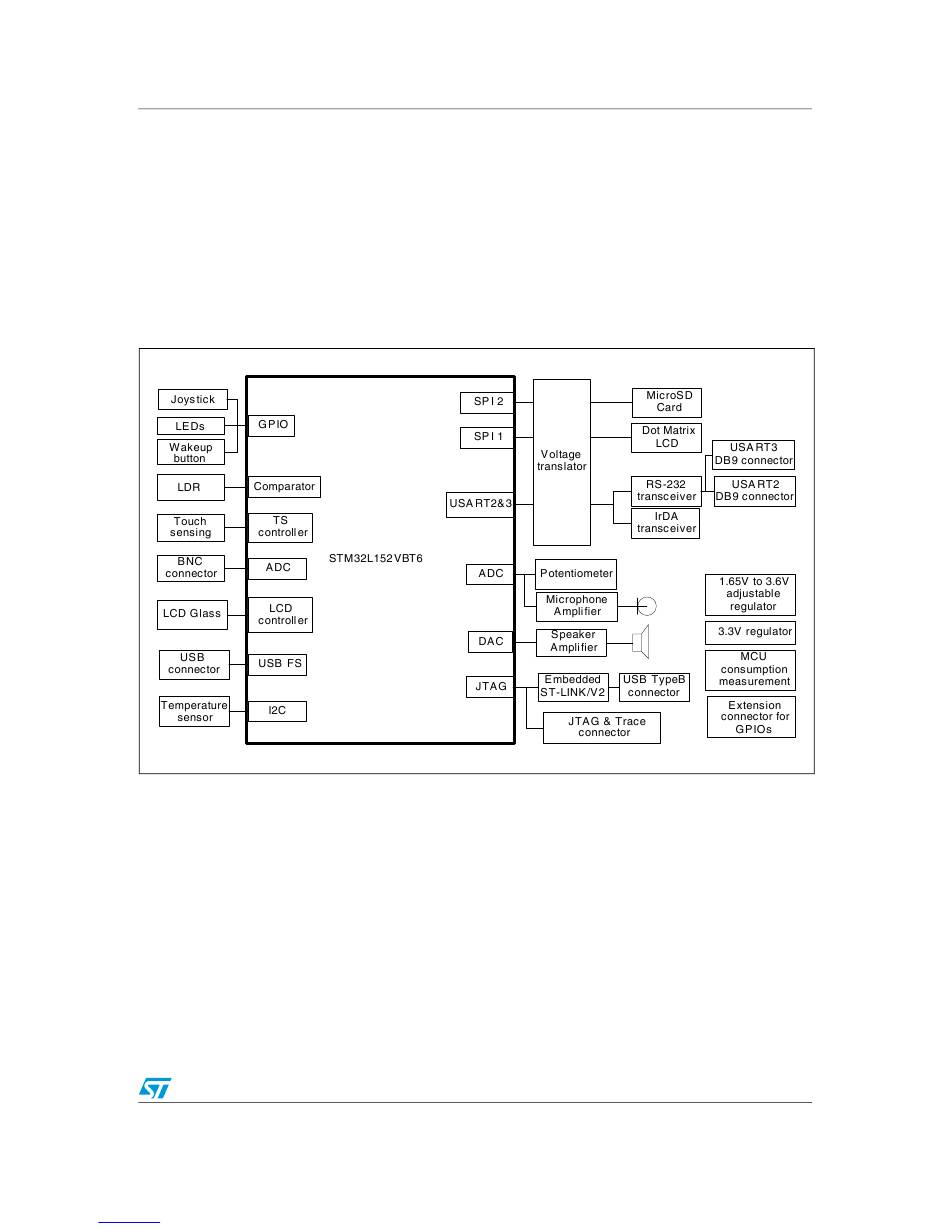

Hardware block diagram
Doc ID 18141 Rev 1
Hardware and layout
5/44
