Power connector (CN12)

Your STM32L152-EVAL evaluation board can be powered from a DC 5 V power supply via
the external power supply jack (CN12) shown in
positive.

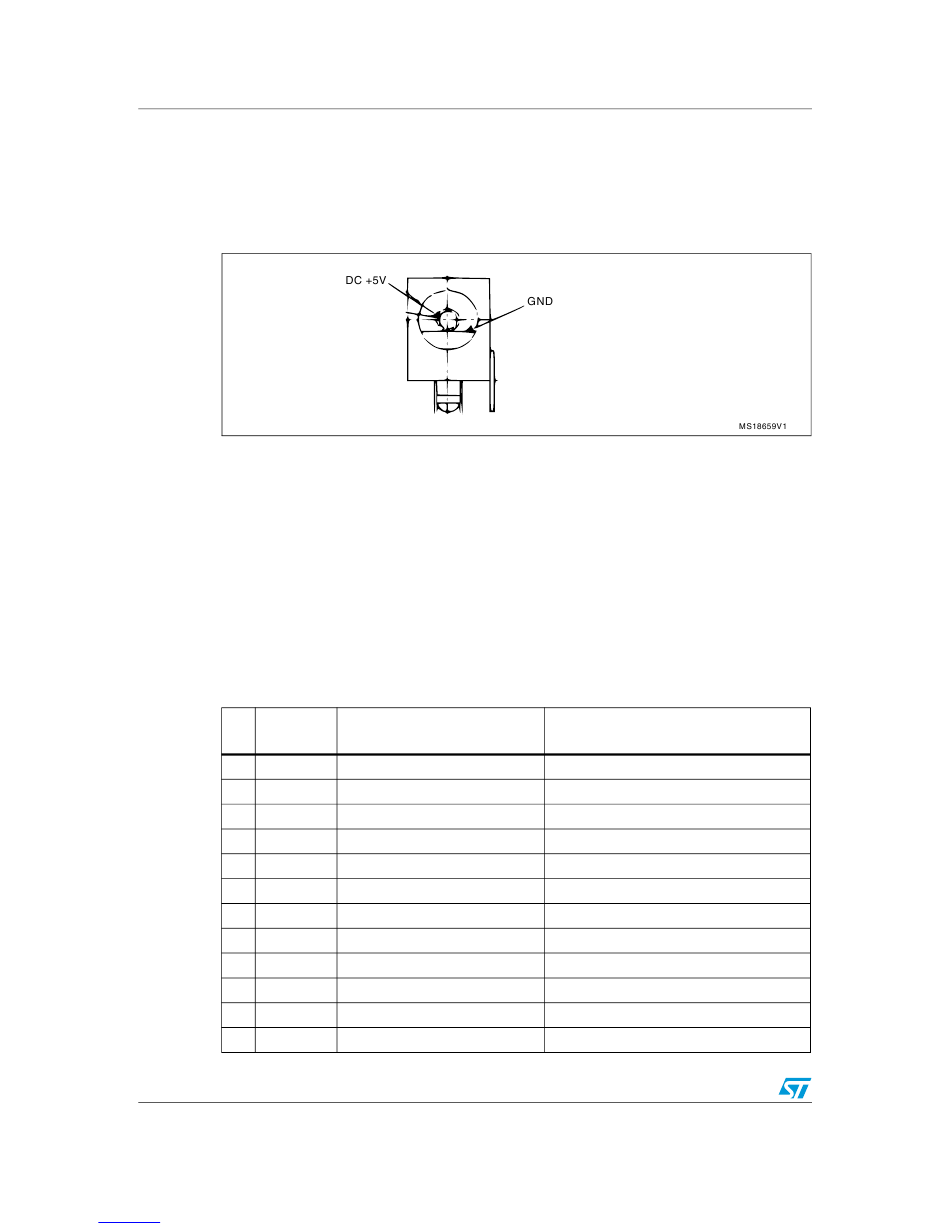

Figure 7. Power supply connector CN12 (viewed from front)

Daughterboard extension connectors (CN6 and CN7)

Two 50-pin male headers CN6 and CN7 can connect a daughterboard or standard wrapping
board to the STM32L152-EVAL evaluation board. All GPIOs are available on it. The space
between these two connectors and position of power, GND and RESET pins are defined as
a standard which allows common daughterboards to be developed for several evaluation
boards. The standard width between CN6 pin1 and CN7 pin1 is 2700 mils (68.58 mm). This
standard is implemented on the majority of evaluation boards.
Each pin on CN6 and CN7 can be used by a daughterboard after disconnecting it from the
corresponding function block on the STM32L152-EVAL evaluation board. Please refer to
Table 15 and Table 16 for details.
Table 15. Daughterboard extension connector CN6
Pin Description Alternative function
1 GND -
3 PC7 TS_KEY2
5 PC9 TS_CT
7 PA9 COM1
9 PA0 Tamper/Key
11 PC14 32K OSC
13 PA12 USB DP
15 PC15 32K OSC
17 PC10 LCD glass_SEG40 / USART3_TX JP7 open
19 GND -
21 PC12 LCD glass_SEG42
23 PD1 LED2
Figure 7. The central pin of CN12 must be
How to disconnect with function block on
-
Remove R13
Remove R29
Remove LCD glass U20
-
Remove R37
Remove R25
Remove R38
-
Remove LCD glass U20
Remove R125
